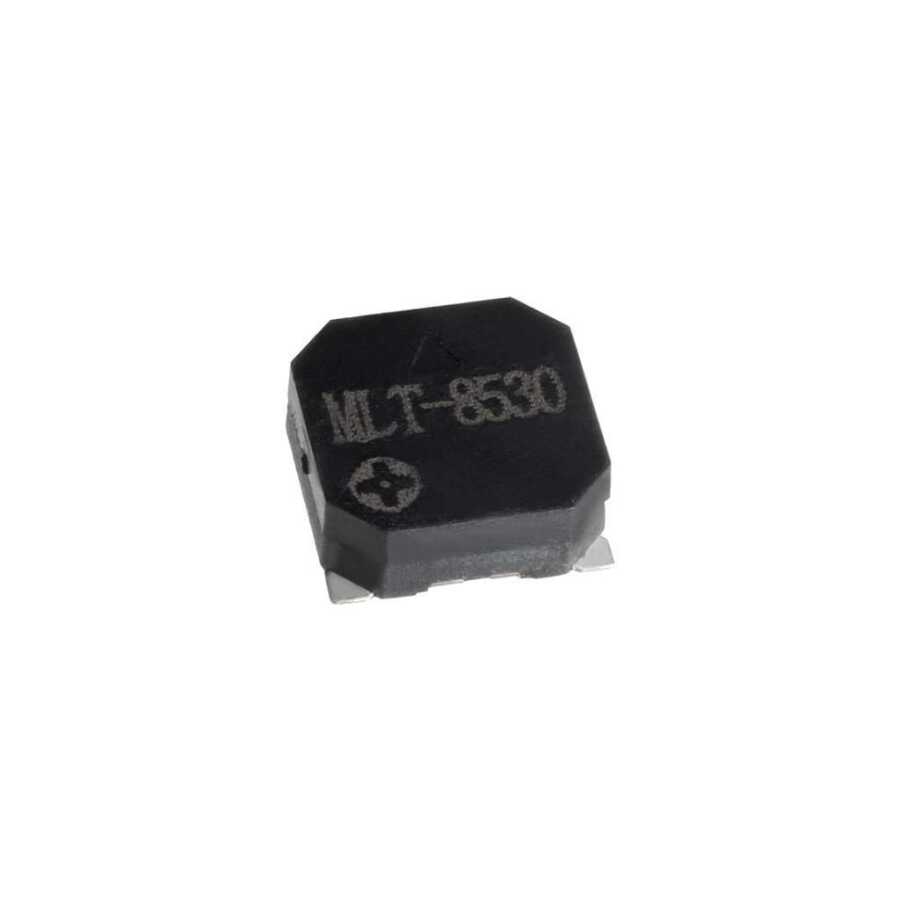

MLT-8530 Smd Passive Buzzer
MLT8530 is an 8.5mm sized SMD buzzer model. Its very small dimensions allow it to be used especially in small circuits. Since the product is a passive buzzer, it works with fluctuating voltage.
Technical Specifications:
- Dimension: 8.5*8.5*3mm
- Frequency: 2700Hz
- Sound Pressure Level (SPL) 80dB @ 5V, 10cm
- Rated Voltage: 3.6V
- Operating Voltage: 2.5 ~ 4.5V
