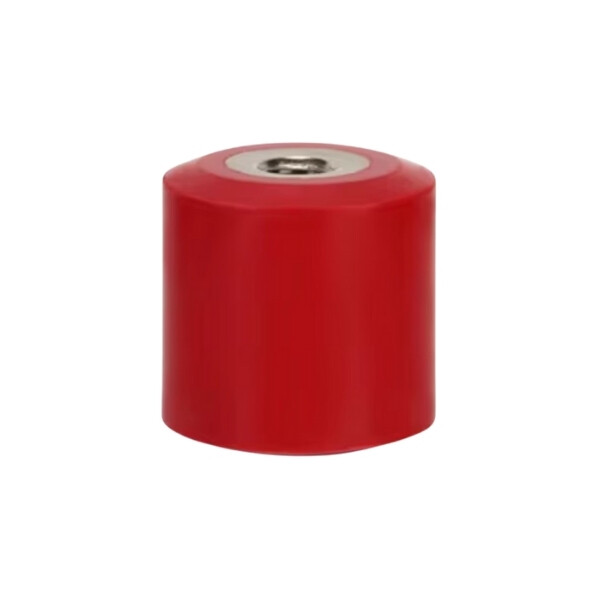

MNS 40X40 M10 Busbar Post Insulator

MNS 40X40 M10 Busbar Post Insulator

The MNS 40X40 M10 Busbar Post Insulator is made of flame retardant fiberglass reinforced polyester and is stronger and holds closer tolerances than traditional porcelain insulators. Our stand-off insulators isolate electrical conductors from mechanical assembly, preventing short circuits, combining high mechanical strength with high arc resistance.

Features

• Insulation Voltage: 15 KV
• Torque: 20 N/m
• Usage Temperature Range: -40 ~ 140°C

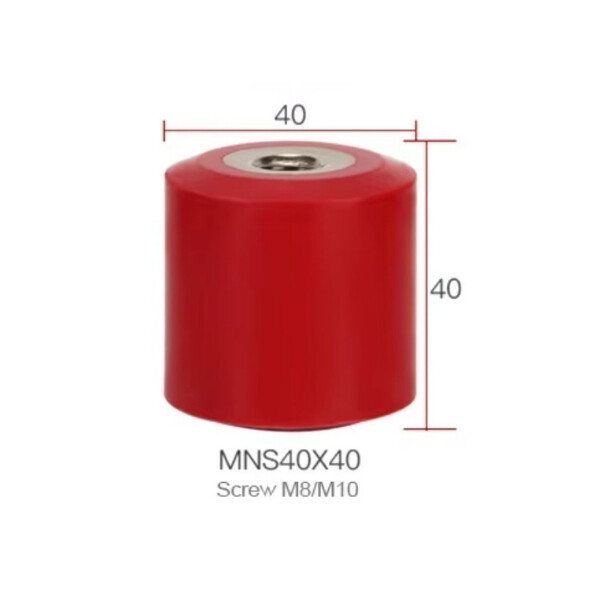

• Diameter: 40mm
• Height: 40mm
• Metric Size: M10
• Screw Depth: 12mm
