NEMA 11 Bipolar. 200 Steps. 28×45mm. 4.5V Stepper Motor - PL-1206

Ratings & Reviews (0)
Comment
Brand: Soyo
Product Code: MTR.STP.02.000003
Stokta 10+ ürün
774.40 TL + VAT
VAT Included: 929.28 TL

NEMA 11 Bipolar, 200 Steps, 28×45mm, 4.5V Stepper Motor - PL-1206

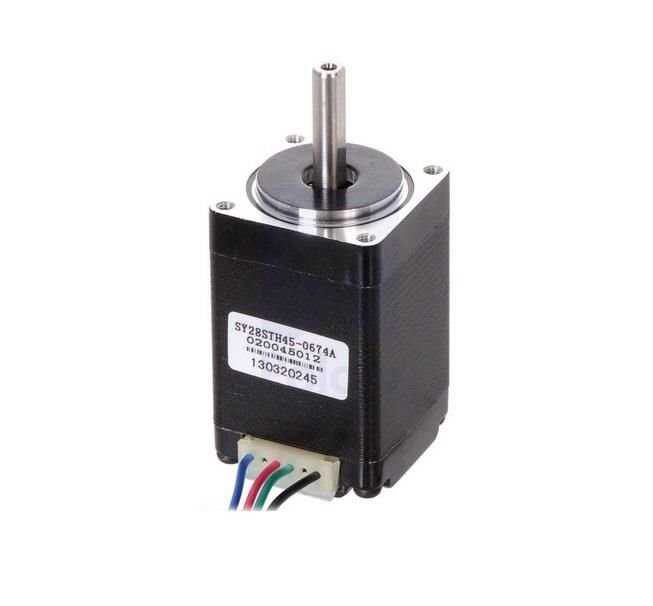

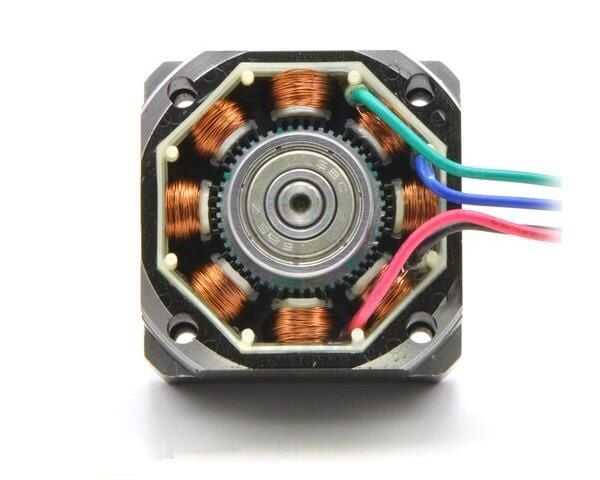

SY28STH45-0674A hybrid bipolar stepper motor with 1.8° step angle (200 step / revolution). Each phase draws 670 mA at 4.5 V, allowing a holding torque of 950 g-cm. The motor has four color-coded wires terminated with bare ends: black and green connect to a coil; red and blue are connected together. The motor can be controlled with a pair of suitable H-bridges (one for each coil), but bipolar stepper motor driver.

Technical Specifications

  • Dimension: 28 mm square × 45 mm, not including spindle (NEMA 11)
  • Weight: 140 g
  • Shaft diameter: 5 mm
  • Steps per revolution: 200
  • Current rating: 670 mA per coil
  • Voltage rating: 4.5 V
  • Resistance: 6.8 Ω per coil
  • Holding torque: 950 g- cm
  • Inductance: 4.9 mH per coil
  • Output shaft supported by two ball bearings

Dimensions

The diagram below shows the stepper motor dimensions in mm. Its length is 45 mm. The output shaft is 20 mm long and 5 mm in diameter, with a flattened cross section of 0.5 mm. This shaft is Can be used with 5mm Motor Mounting Bracket.

NEMA 11 Bipolar, 200 Steps, 28×45mm, 4.5V Stepper Motor - PL-1206

Stepper Motor Applications

Stepper motors are often used in a variety of applications where precise position control is desired and the cost or complexity of a feedback control system is not warranted. A few applications where stepper motors are often found:
  • Printers
  • CNC machines
  • 3D printer / prototyping machines
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard disks

Weight(Kg)
0.1
