Nema 17 Stepper Motor 39H35H-0504AT

Ratings & Reviews (0)
Comment
Brand: Motorobit
Product Code: MTR.STP.04.000010
Stokta 100+ ürün
140.80 TL + VAT
VAT Included: 168.96 TL

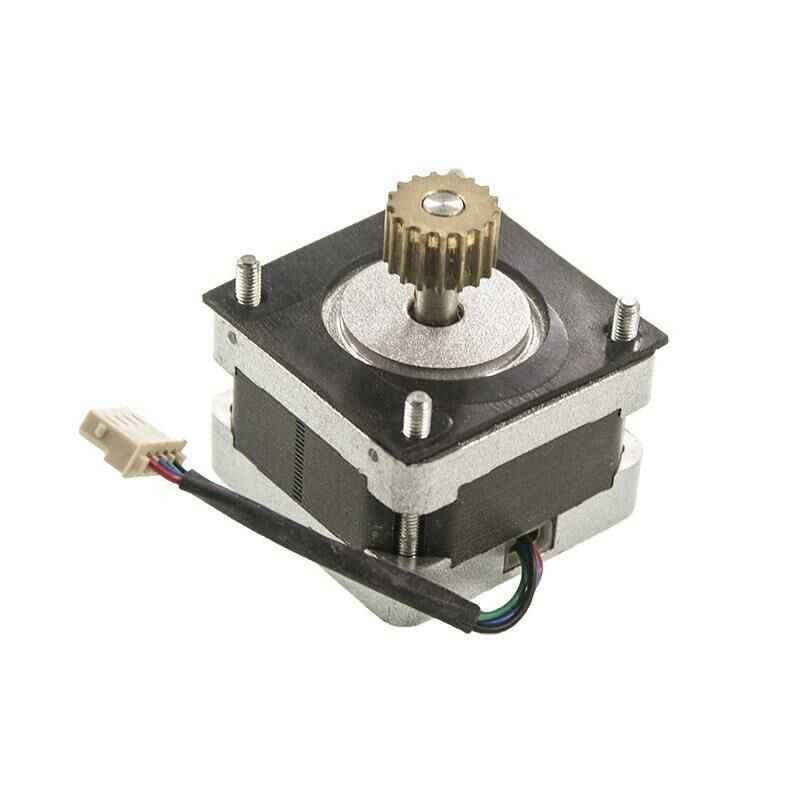

Nema 17 Stepper Motor 39H35H-0504AT


Nema 16 Stepper Motor with 39x39x26mm case size. The mounting holes are the same as standard Nema 17 Stepper motors and can be used in the same way. The gear on the motor shaft cannot be removed by hand. It can only be removed by turning.


Dimensions:

  • Case Dimension: 39x39x26mm
  • Motor Shaft Diameter: 5mm
  • Shaft Length: 15mm
  • Gear Diameter: 13mm
  • Gear Length: 8mm
  • Number of Teeth: 17
Weight(Kg)
0.3
