NEMA 23 Unipolar/Bipolar. 200 Steps. 57×76mm. 8.6V

Ratings & Reviews (0)
Comment
Brand: Soyo
Product Code: MTR.STP.05.000003
Stokta son 1 ürün
1,232.00 TL + VAT
VAT Included: 1,478.40 TL

NEMA 23 Unipolar/Bipolar, 200 Steps, 57×76mm, 8.6V Stepper Motor - PL-1477


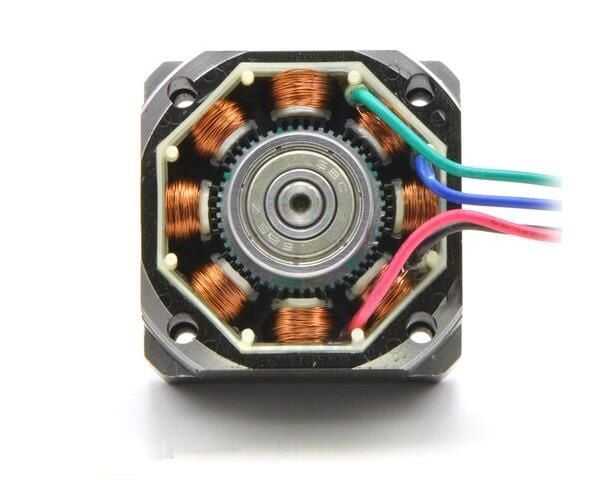

SY57STH76-1006A hybrid stepper motor unipolar or bipolar stepper motor and has a 1.8° step angle (200 steps / revolution). Each phase draws 1A at 8.6V, allowing a holding torque of 14 kg-cm. The motor has six color-coded wires that allow it to be controlled by both unipolar and bipolar stepper motor drivers. When used with a unipolar stepper motor driver, all six leads are used. When used with a bipolar stepper motor driver, the midrange yellow and white wires can be disconnected (the red-blue pair provides access to one coil and the black-green pair provides access to the other coil). We recommend using bipolar stepper motor driver .


Specifications

  • Dimension: 56.4 mm square × 76 mm, not including shaft (NEMA 23)
  • Weight: 1 kg
  • Shaft diameter: 6.35 mm "D”
  • Steps per revolution: 200
  • Current rating: 1A per coil
  • Voltage rating: 8.6V
  • Resistance: 8.6 Ω per coil
  • Holding torque: 14 kg-cm
  • Inductance: 14 mH per coil
  • Output shaft supported by two ball bearings


Dimensions

The diagram below shows the stepper motor dimensions in mm Length is 76 mm. .The output D-shaft is 20.6 mm long and 6.35 mm in diameter, with a 0.5 mm flattened section will help you mount this stepper motor in your project.

NEMA 23 Unipolar/Bipolar, 200 Steps, 57×76mm, 8.6V Stepper Motor - PL-1477


Stepper Motor Applications

Stepper motors are often used in a variety of applications where precise position control is desired and the cost or complexity of a feedback control system is not warranted. A few applications where stepper motors are often found:
  • Printers
  • CNC machines
  • 3D printer / prototyping machines
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard disks
