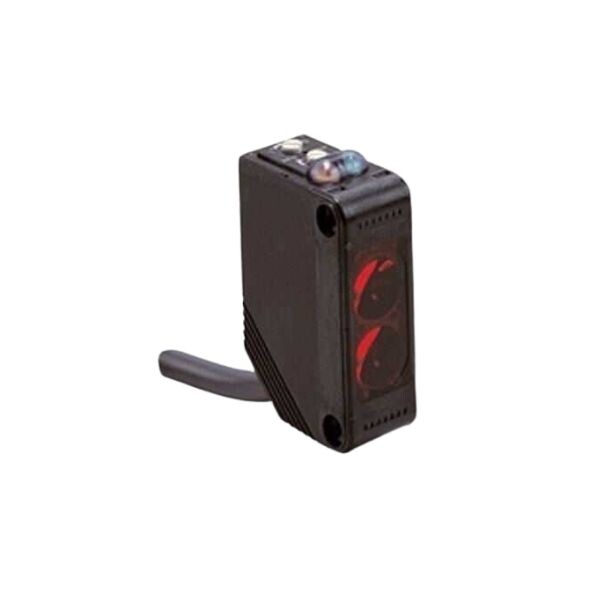

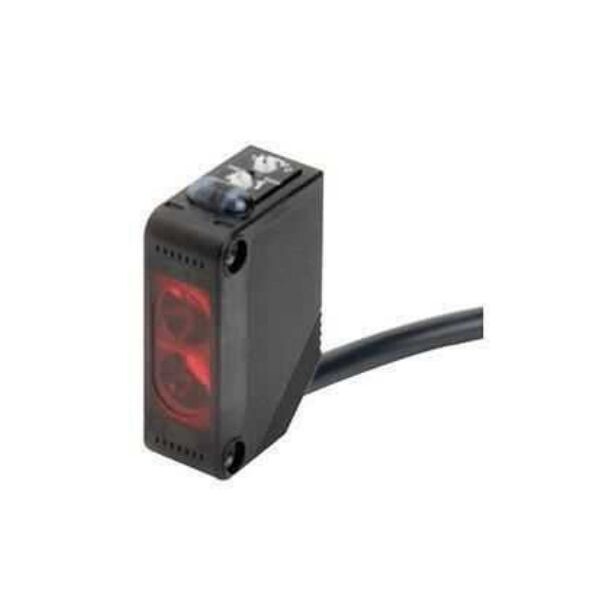

Notify me when its in stock| Shape | Square type |
|---|---|
| Detection method | < TD>Diffuse|
| Detection distance | 5 mm to 100 mm (White paper 100 x 100 mm) |
| Differential distance | 20% maximum. detection distance |
| Light source | Infrared LED (Emission wave length : 860 nm) |
| Supply voltage | 12 to 24 VDC ±10% (ripple (pp) maximum 10%) |
| Instantaneous consumption | 30 mA max. |
| Control output | PNP open collector output 26.4 VDC max. Load current: 100 mA max. Residual voltage: max. 1 V. (Load current less than 10mA) / Residual voltage: 2 V max. (Load current: 10 to 100 mA) |
| Operation mode | |
| Operation mode | Light-ON / Dark-ON selectable |
| Protective circuit | Output short circuit protection Output reverse polarity protection < BR>Power supply reverse polarity protection Mutual interference prevention |
| Response Time | 1 ms max. | Sensitivity adjustment | Single turn adjustment |
| Ambient brightness | Incandescent lamp: Maximum 3000 lux, Sunlight: max. 10000 lux |
| Ambient temperature (Operating) | -25 to 55 ℃ (without icing or condensation) | < /TR>
| Ambient temperature (Storage) | -40 to 70 ℃ (without icing or condensation) |
| Operating: 35 - 85% Storage: % 35 - 95 (without icing or condensation) | |
| Insulation resistance | 20 MΩ min. at 500 VDC |
| Dielectric strength | 1 minute 1000 VAC at 50/60 Hz across |
| Vibration resistance | 10 to 55 Hz, double amplitude of 1.5 mm, each 2 hours in Y and Z directions |
| Shock resistance | 500 m/s ** 2, 3 times each in X, Y and Z directions |
| Degree of protection | IEC: IP67 |
| Connection method | Wired models (Cable length: 2 m) |
| Indicator | Operation indicator (orange), Stability indicator (green) |
| Approx. 65 g |
