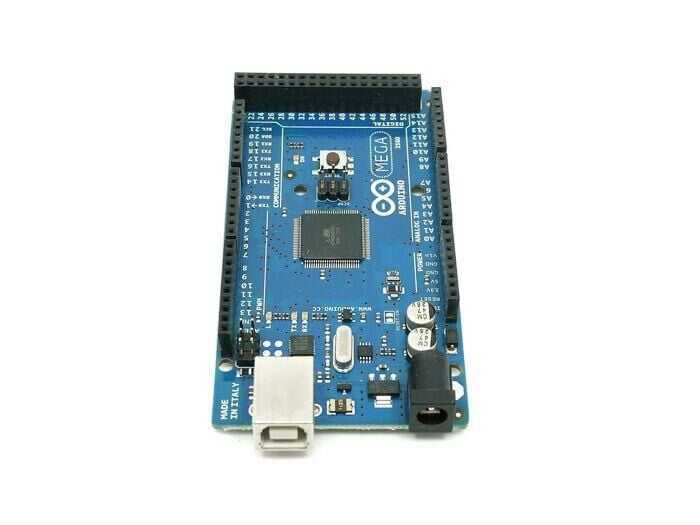

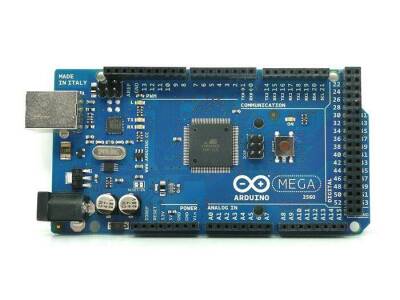

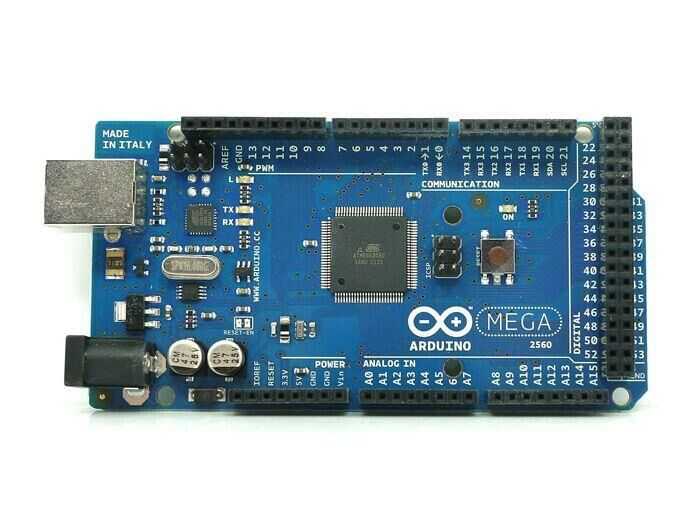

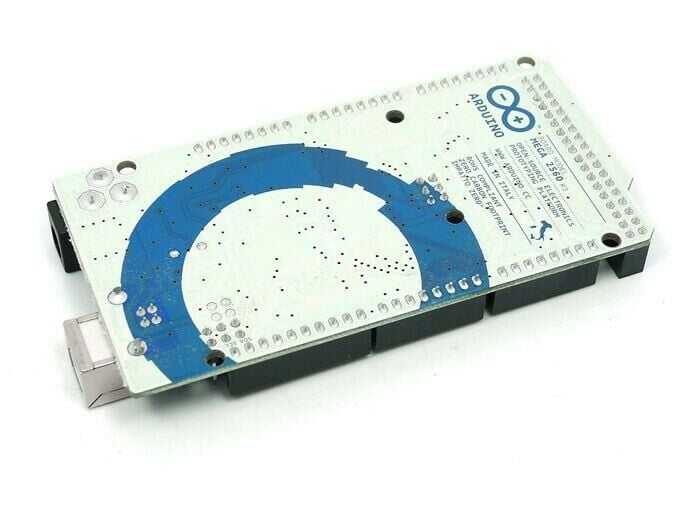

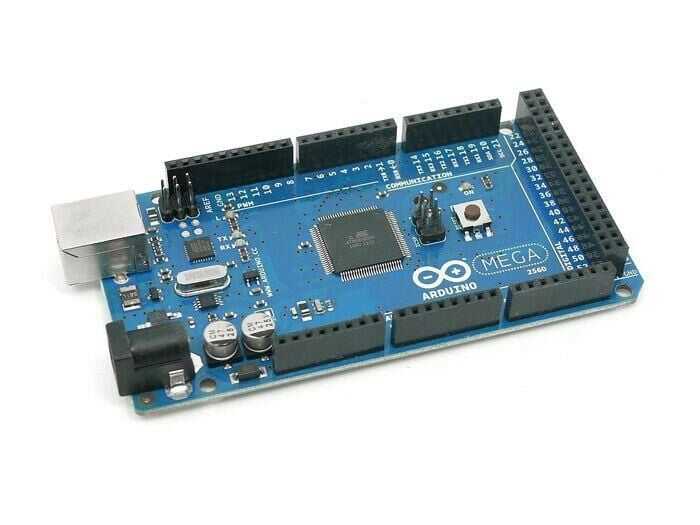

Original Arduino Mega 2560 R3
Arduino Mega 2560 Rev3 is a microcontroller board based on ATmega2560 (datasheet). It has 54 digital input/output pins (14 of which can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.< /DIV>
Contains everything needed to support the microcontroller; Connect it to a computer with a USB cable or power it with an AC-DC adapter or battery to get started. Mega is compatible with most shields designed for Arduino Duemilanove or Diecimila.
Specifications:
- Microcontroller: ATmega2560
- Operating voltage: 5V
- Input voltage (recommended): 7-12V
- Input voltage (limits): 6-20V
- Digital I / O pins: 54 (14 of which provide PWM output)
- Analog input pins: 16
- DC current per I/O pin: 40 mA
- 3.3 DC current for V pin: 50 mA
- Flash Memory: 8 KB of 256 KB is used by the bootloader
- SRAM: 8 KB
- EEPROM: 4 KB
- LI>
- Clock speed: 16 MHz
