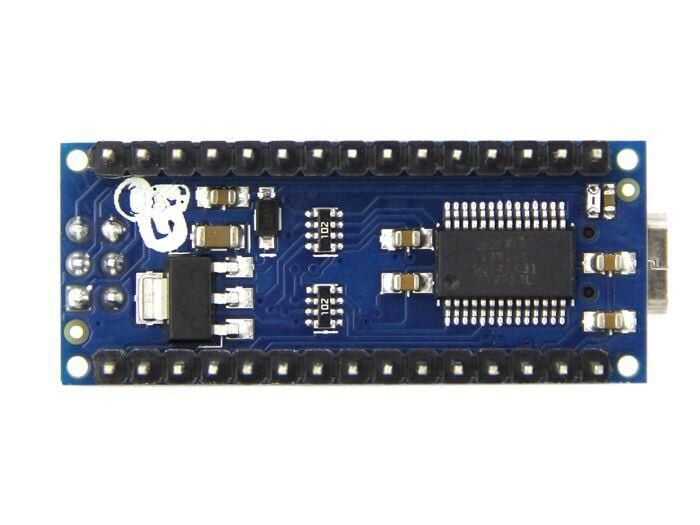

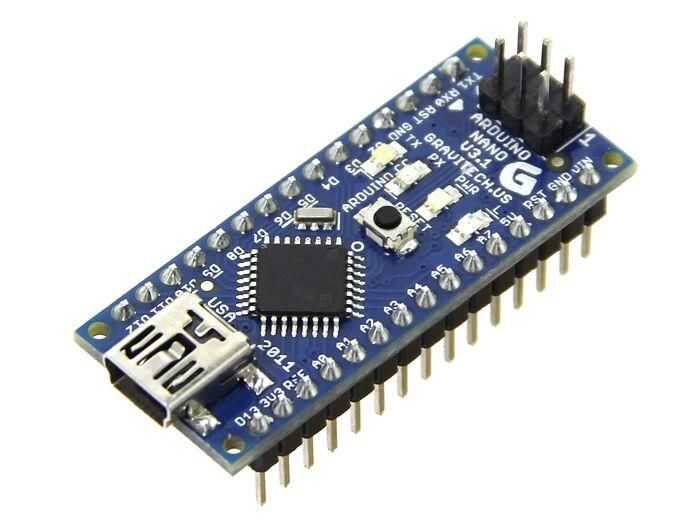

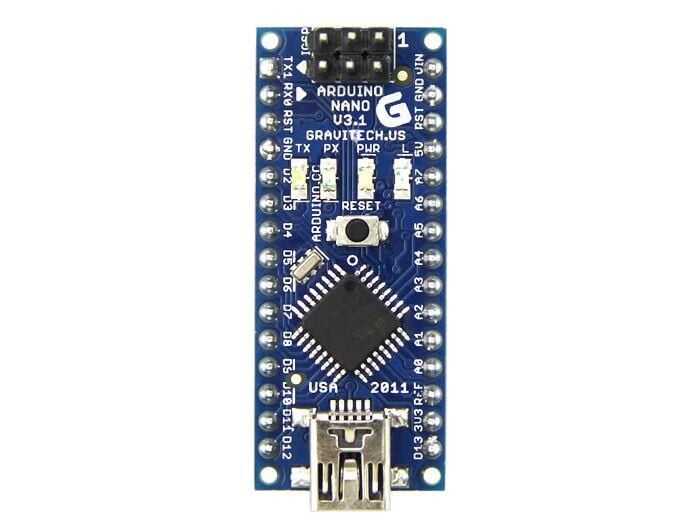

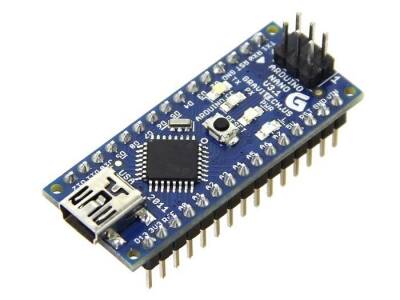

Original Arduino Nano
Arduino Nano is a small, handy, breadboard compatible programming board based on ATmega328. You can do the same things you can with Arduino Uno, it just lacks a DC power input and works with a Mini-B USB cable instead of a standard one.
Technical Specifications:
- Microcontroller ATmega328
- Operating voltage 5v
- Input Voltage (recommended) 7-12 V
- Input Voltage (limit) 6-20 V
- Digital I/O Pins 14
- PWM Digital I/O Pins 6
- Analog Input Pins 8
- G / O DC Current 40 mA per pin
- Flash Memory 16 kB (ATmega168) or 32 kB (ATmega328)
- Flash Memory for Bootloader 2 kB
- SRAM 1 kB (ATmega168) or 2 kB (ATmega328)
- EEPROM 512 bytes (ATmega168) or 1 kB (ATmega328)
- Clock Speed 16 MHz
