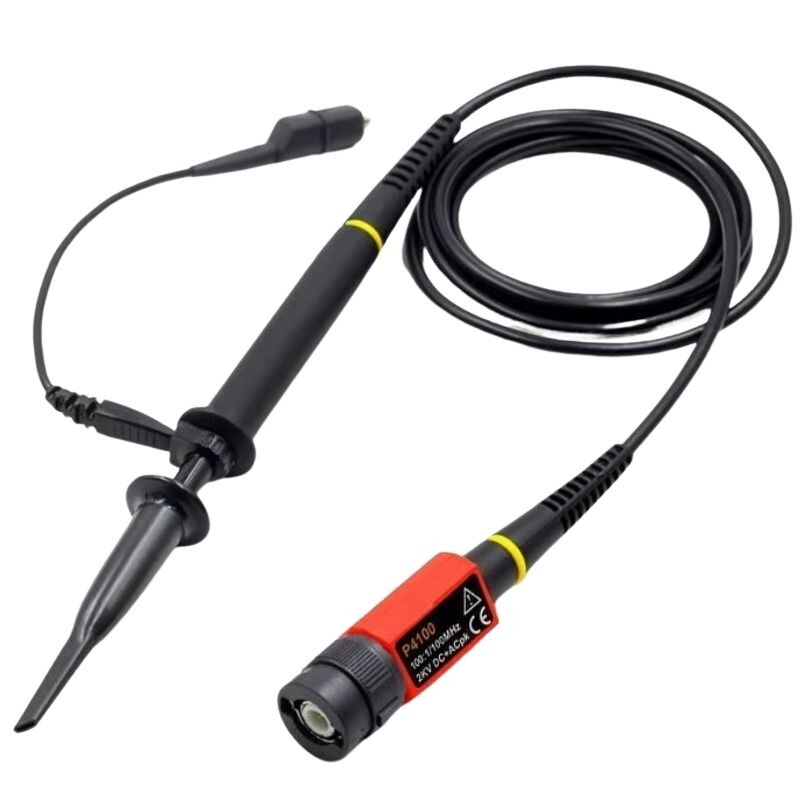

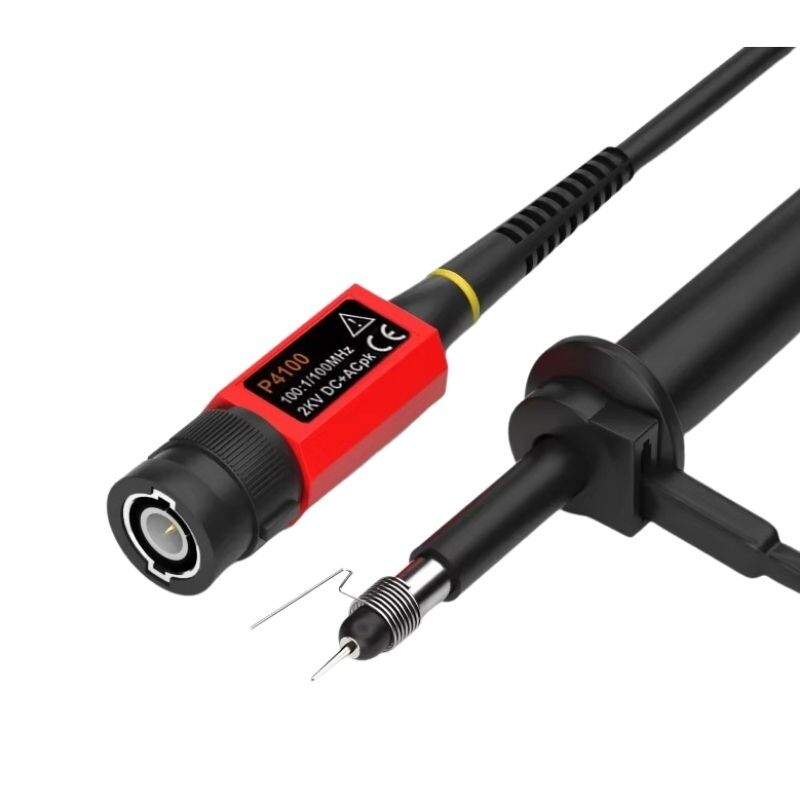

P4100 100:1 2KV 100MHz High Voltage Oscilloscope Probe

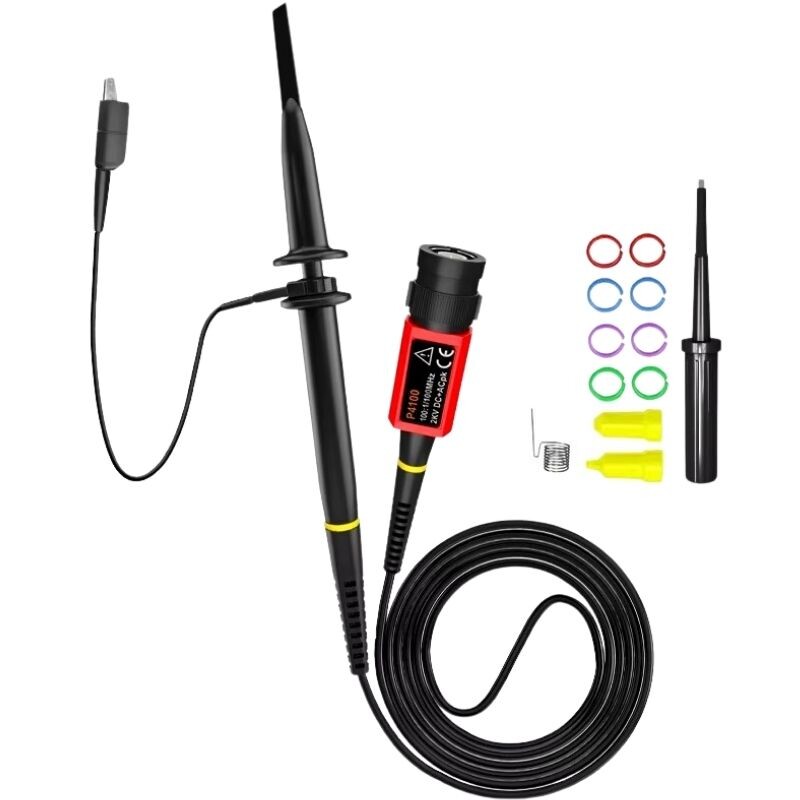

Compact size, many functions combined in one, this probe is convenient to use. The placement sleeves ensure the stability and reliability of the tip exposed to the test point. Different colored marker rings help identify different channels.
Technical Specifications
*Model: P4100
*Cable Length: Approx. 120cm
*Bandwidth: 100MHz
*Type: BNC
*Rise Time: 3.5ns
*Attenuation Ratio: 100:1
*Resistance: 1MOmega / 100MOmega +-2%
*Input Voltage: 100X: 2000V
