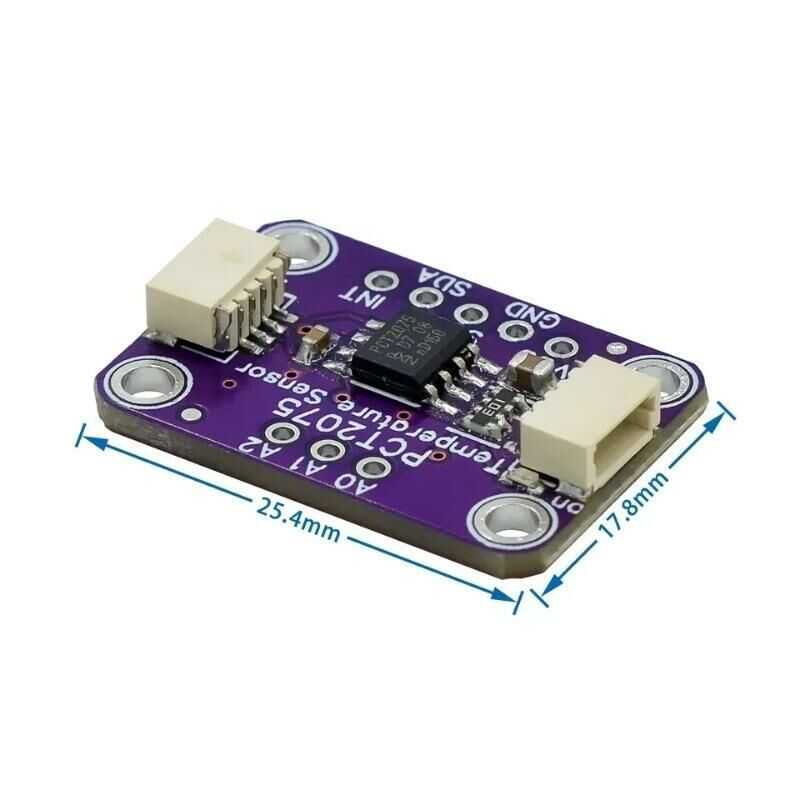

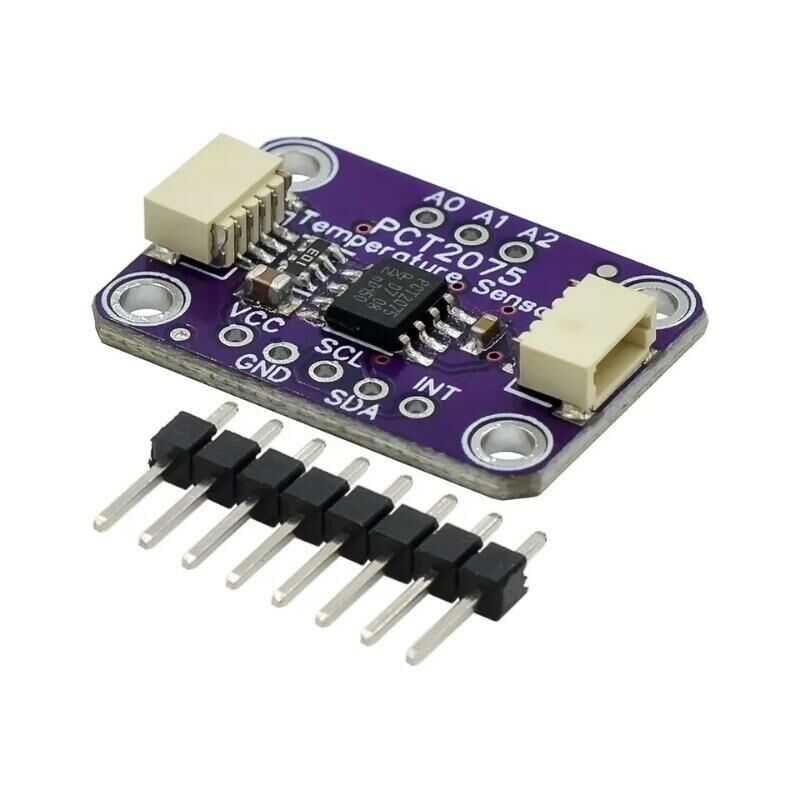

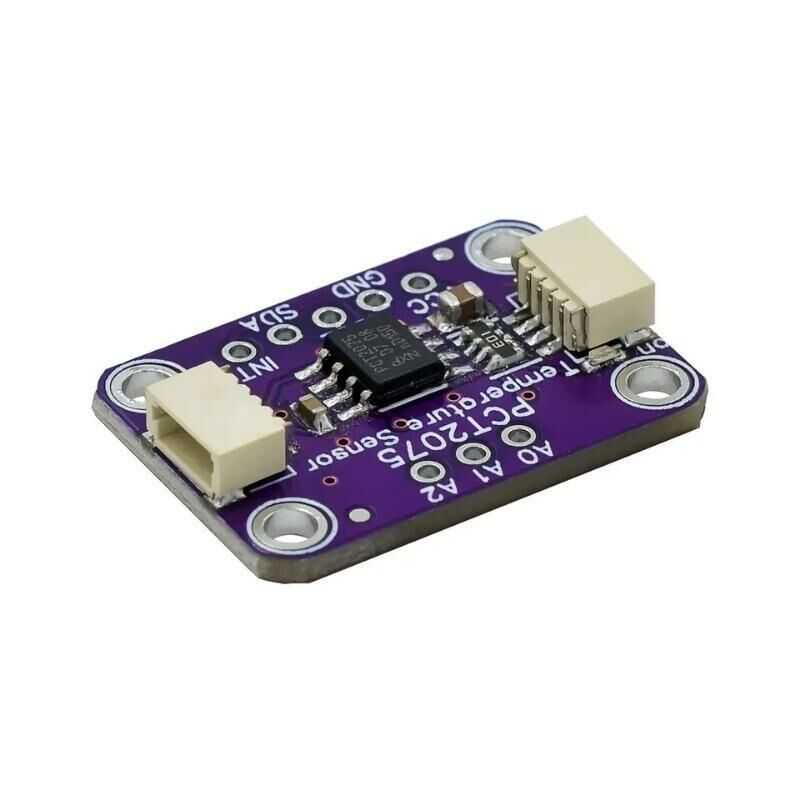

PCT2075 Temperature Sensor
PCT2075 Temperature Sensor is a new generation temperature sensor that is more advanced as an alternative to the old generation LM75 sensors. LM75 has 9-bit ADC while PCT2075 has 11-bit ADC. In this way, it can make much more precise measurements.
There is a JST-SH connection connector input on the product for those who do not want to solder other than the connection pins.
Connection:
- VCC: 2.7V-5V
- GND: Ground
- SCL: I2C clock pin
- SDA: I2C data pin
- INT: This is the interrupt pin. You can set the PCT2075 to activate this pin when a temperature threshold is reached or exceeded.

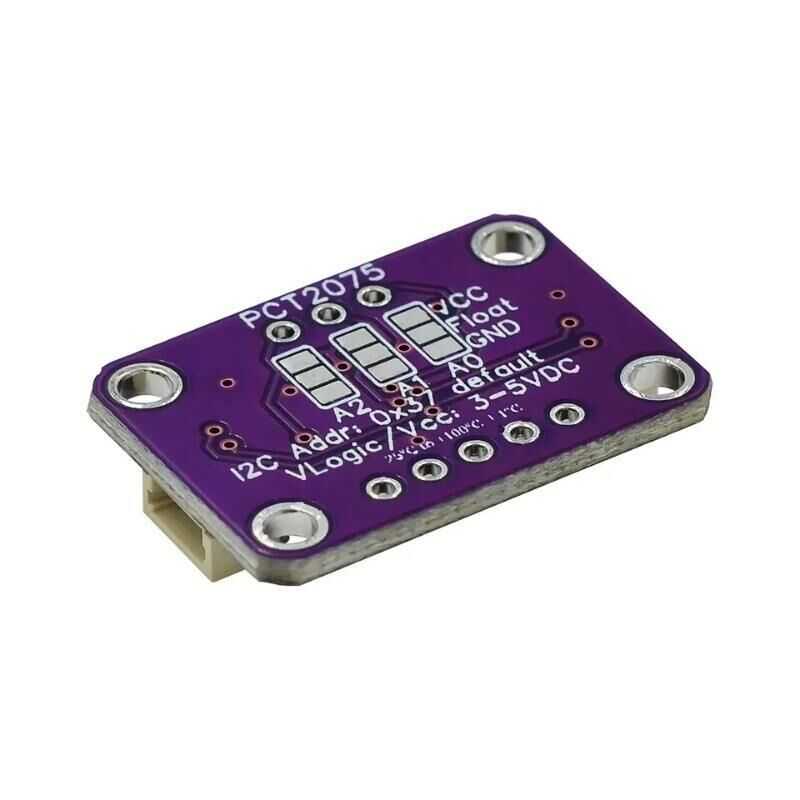

- A0, A1, A2 - I2C Address pins. You can refer to the "I2C Address Selection" section below.
