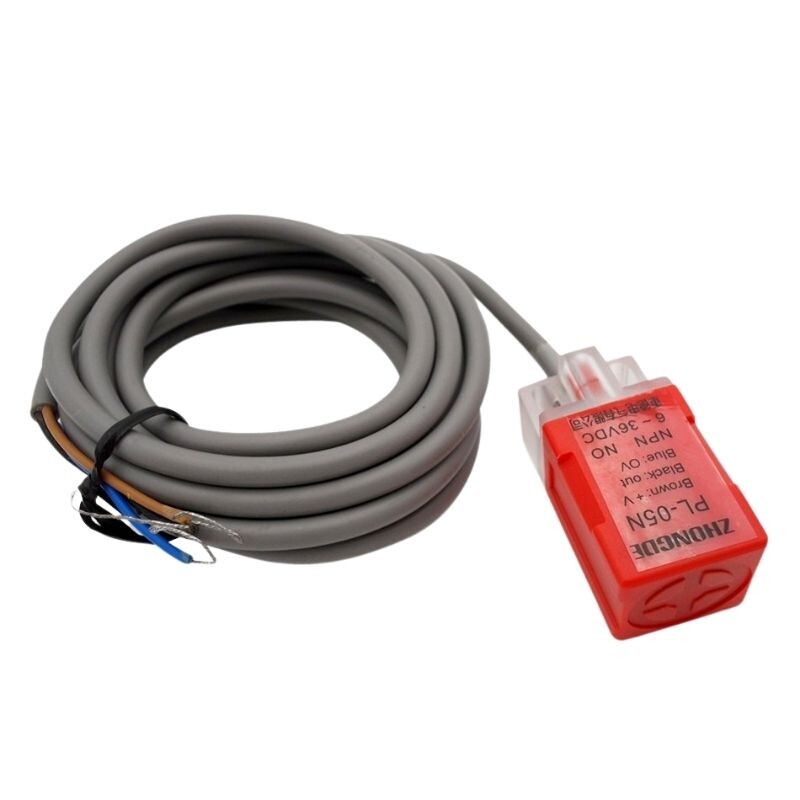

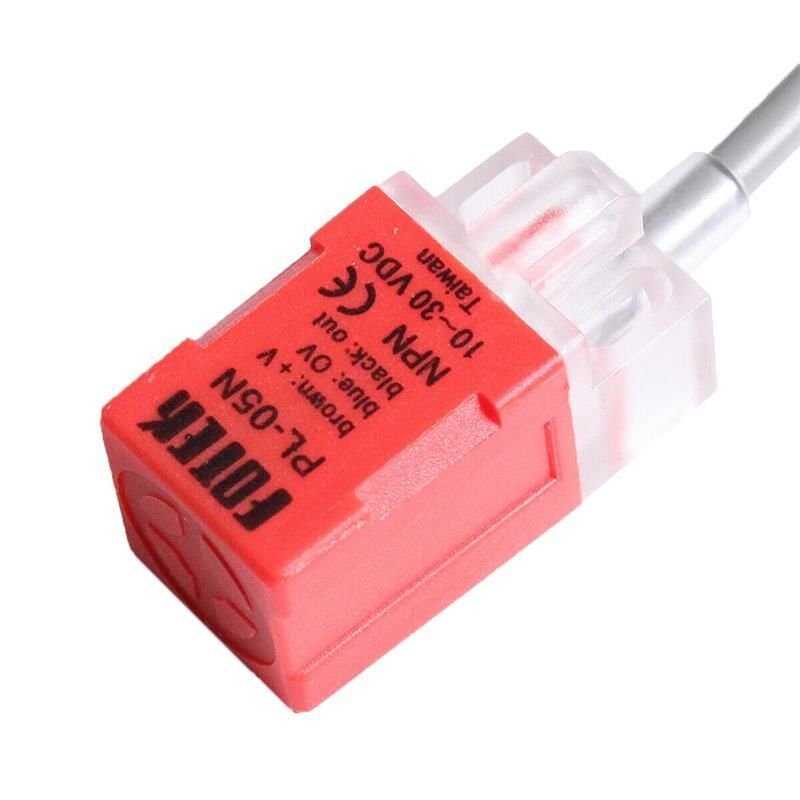

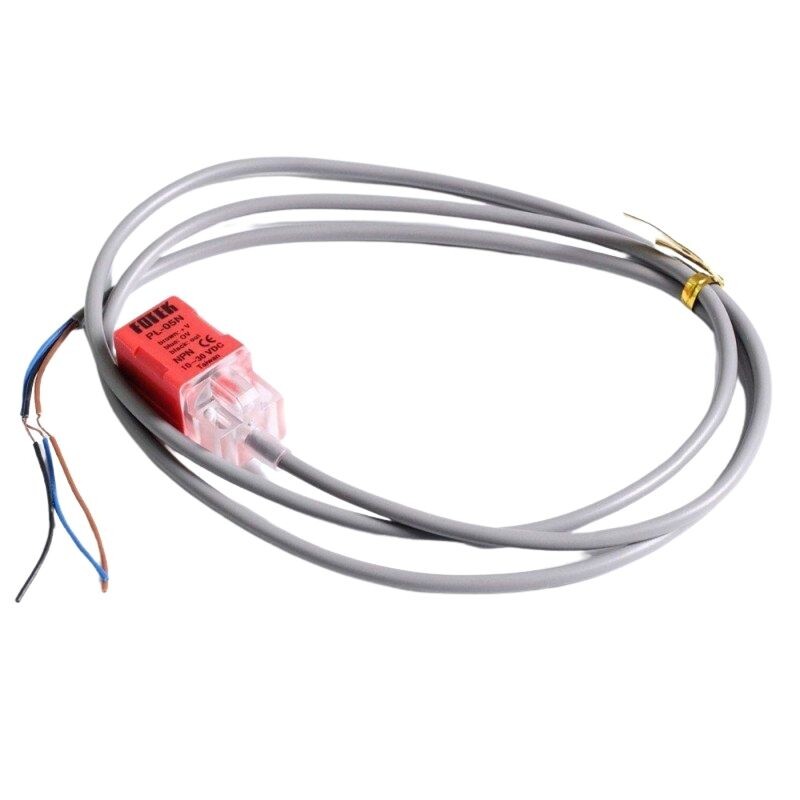

PL-05N NPN Inductive Proximity Sensor
Inductive Proximity Sensor PL-05N NPN Limit Switch is used to control the machine as part of a control system, as a safety interlock or used to count objects passing a point. A limit switch is an electromechanical device consisting of an actuator mechanically connected to a group of contacts. Being an inductive switch, no physical contact is required between the switch and the detected metallic surface.
Technical Specifications
- PL-05N
- Frame Type
- Detection distance: 5mm
- Operating voltage: DC10-30V
- Response frequency: 800Hz

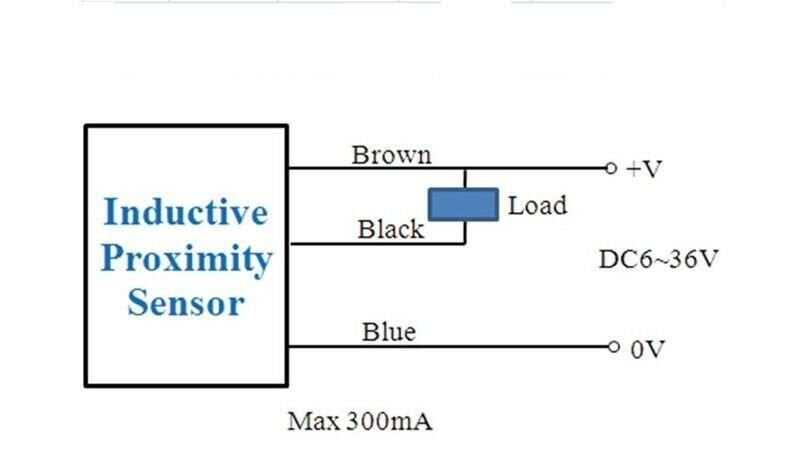

- Output method : NPN, 150mA load
- Hysteresis: <10% of detection distance
- Degree of protection: IP67
- Operating temperature / Hum: -20 ~ + 80C, 35% ~ 90% Relative Humidity
- Mounting Method: Recessed
- Detection Direction: Horizontal
- Screw hole: 3.2mm, Width: 7mm
- Cable length: 100 cm
