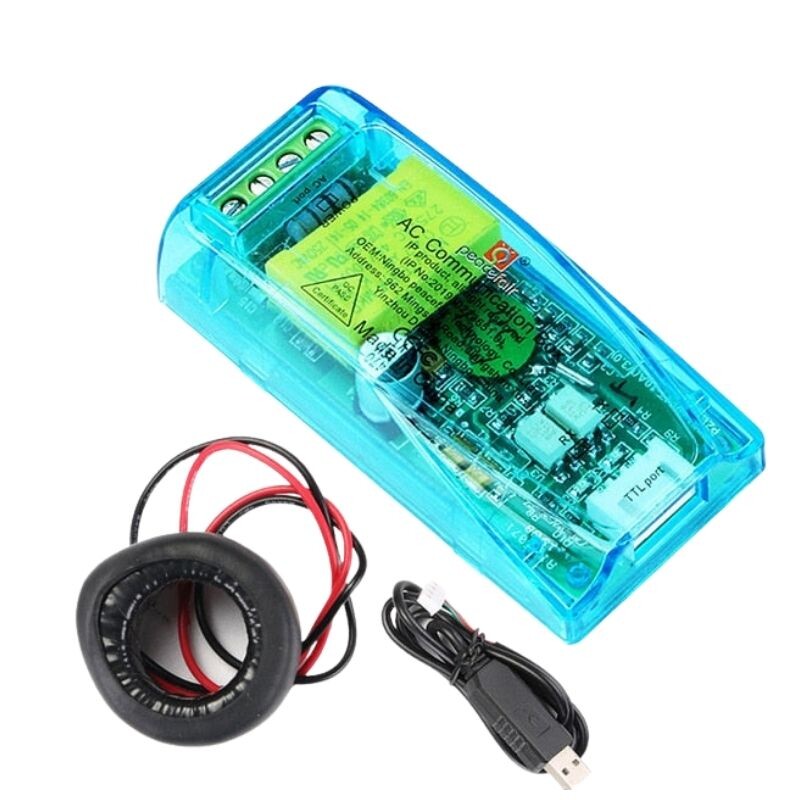

PZEM-004T 100A Single Phase AC Power Communication Module + Coil CT + USB

PZEM-004T 100A Single Phase AC Power Communication Module + Coil CT + USB

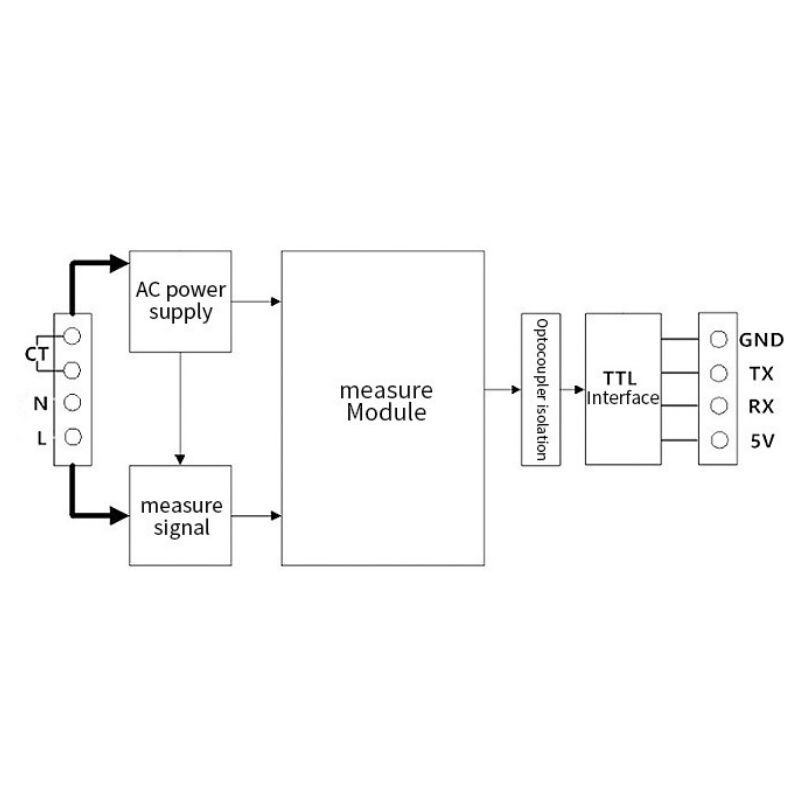

PZEM-004T 100A Single Phase AC Power Communication Module + Coil CT + USB, This module is mainly used to measure AC voltage, current, active power and active energy, except for the display function in the module, the data is read via the TTL interface.

We share the software required to connect this product to the PC, but it can also be used with PLC, SCM, etc. If you want to connect to other terminal devices such as , you need to set the appropriate cable and program.

For the detailed user manual and software of the product here you can click.

Features

• Working voltage: 80 ~ 260VAC
• Test voltage: 80 ~ 260VAC
• Rated Current: 100A
• Working frequency: 45-65Hz
• Measurement accuracy: 1.0 degrees
