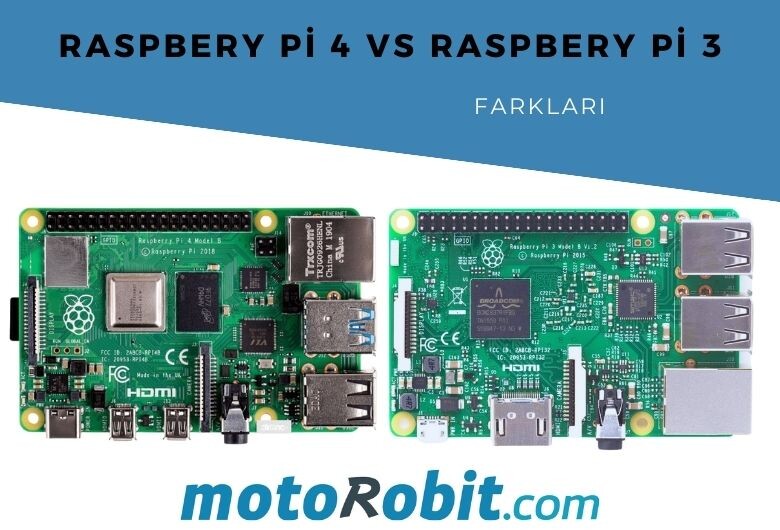

Features / Technical Specifications | Raspberry Pi 4B | Raspberry Pi 3 B+ |
Release Date | June 24, 2019 | March 14, 2018 |
SoC | Broadcom BCM2711 quad-core Cortex-A72 @ 1.5 GHz |
Broadcom BCM2837B0 quad-core Cortex-A53 @ 1.4 GHz |
GPU | VideoCore VI with OpenGL ES 1.1, 2.0, 3.0 | VideoCore IV with OpenGL ES 1.1, 2.0 |
Video Decode | H.265 4Kp60, H.264 1080p60 | H.264 & MPEG-4 1080p30 |
Video Encode | H.264 1080p30 | |
Memory (RAM) | 1GB, 2GB, or 4GB LPDDR4 | 1GB LPDDR2 |
Storage | microSD card | |
Video & Audio Output | 2x micro HDMI ports up to 4Kp60 3.5mm AV port (composite + audio) MIPI DSI connector |
1x HDMI 1.4 port up to 1080p60 3.5mm AV port (composite + audio) MIPI DSI connector |
Camera | MIPI CSI connector | |
Ethernet | Native Gigabit Ethernet | Gigabit Ethernet over USB (300 Mbps max.) |
WiFi | Dual band 802.11 b/g/n/ac | |
Bluetooth | Bluetooth 5.0 + BLE | Bluetooth 4.2 + BLE |
USB | 2x USB 3.0 + 2x USB 2.0 |
4x USB 2.0 |
Expansion | 40-pin GPIO header | |
Power |
Up to 3A at 5V via USB type-C
Up to 3A at 5V via GPIO header
Power over Ethernet via PoE HAT
|
Up to 2.5A at 5V via micro USB
Up to 3A at 5V via GPIO header
Power over Ethernet via PoE HAT
|
Dimensions | 85×56 mm | |
Default Operating System | Raspbian (after June 24, 2019) | Raspbian (after March 2018) |
International Selling Price | $35 (1GB RAM), $45 (2GB RAM), $55 (4GB RAM) | $35 (1GB RAM) |
