Raspberry Pi 5 - 4 GB

Ratings & Reviews (0)
Comment
Show More: Raspberry Pi Models
Brand: Raspberry Pi
Product Code: RSP.MDL.01.000009
Stokta 10+ ürün
2,574.00 TL + VAT
VAT Included: 3,088.80 TL

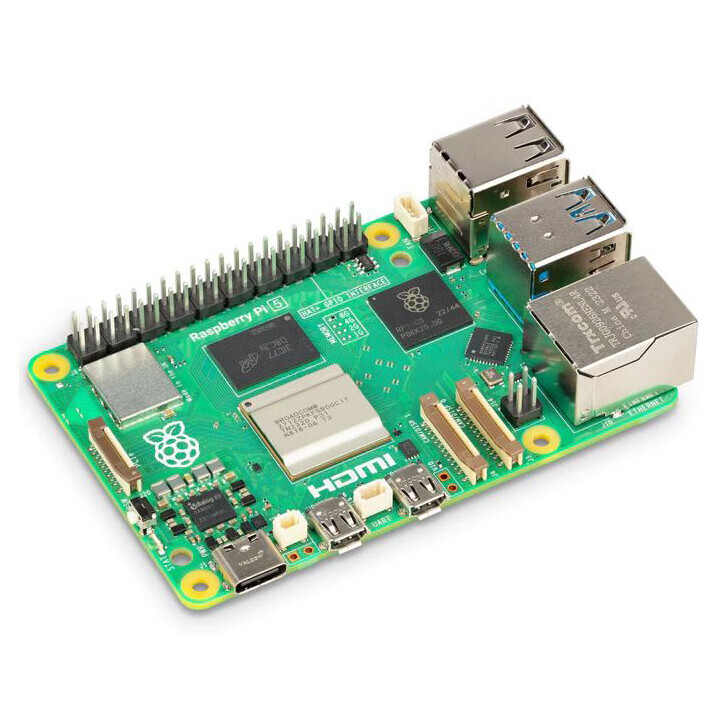

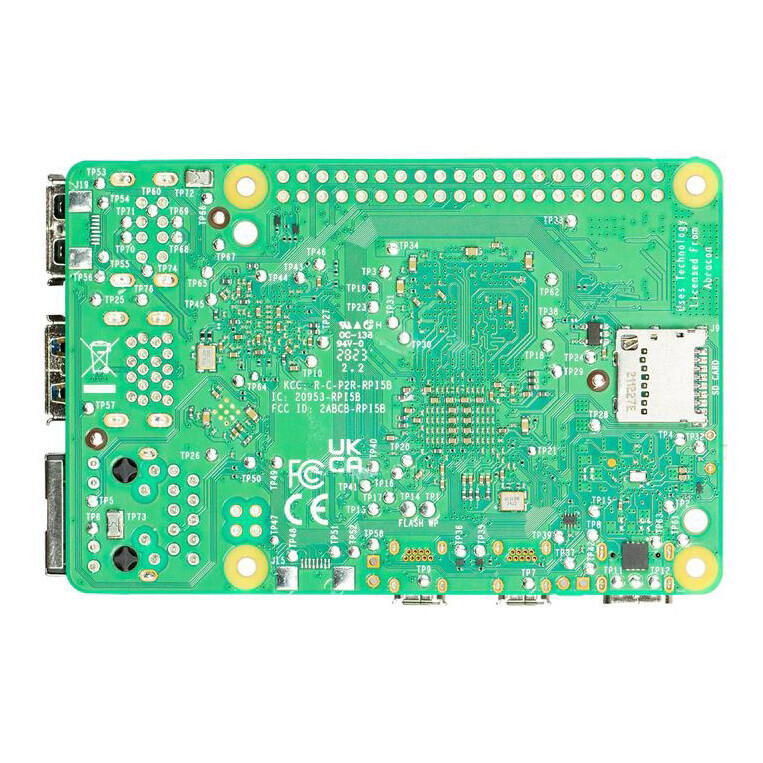

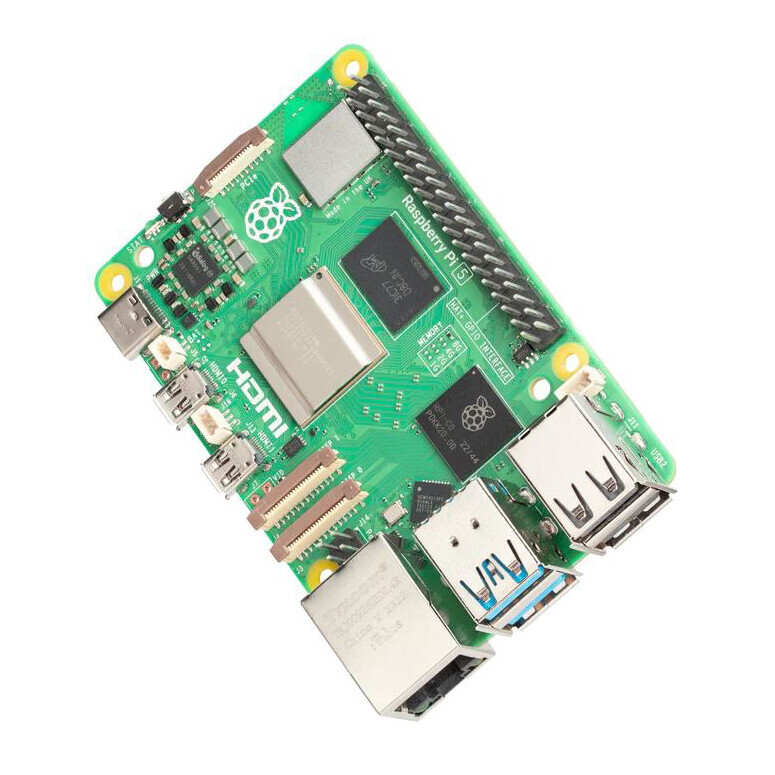

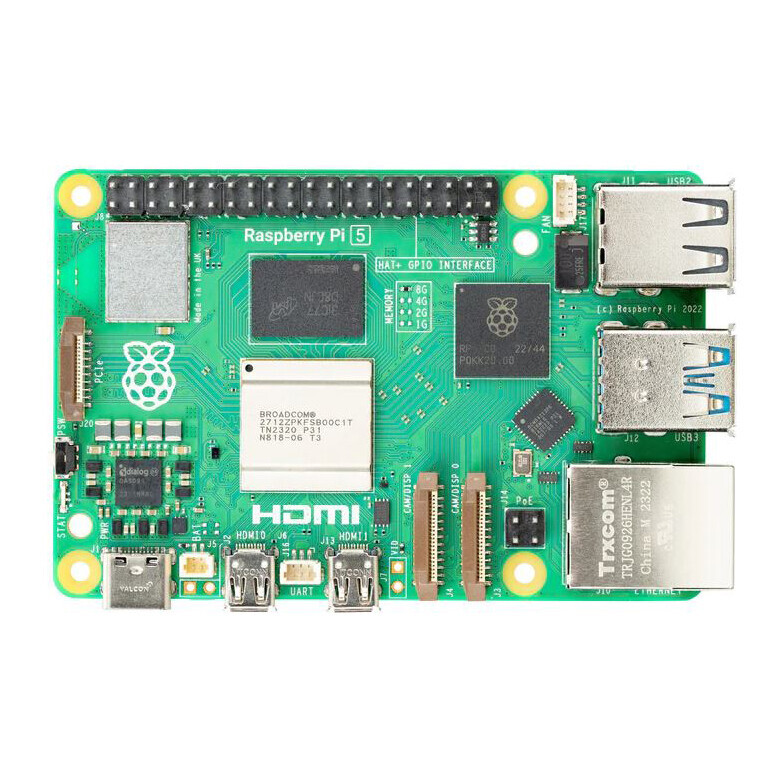

Raspberry Pi 5 - 4 GB

After a long wait, the Raspberry Pi 5 is finally here! This mini computing powerhouse is a game-changer, offering speed and versatility like never before. It’s a revolution in mini computing, offering unprecedented speed and a host of new features.

With a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, the Raspberry Pi 5 delivers a 2-3x increase in CPU performance over the Raspberry Pi 4! The Raspberry Pi 5 also brings a huge list of great new features and improvements, making it the best Raspberry Pi yet!



2-3x CPU Performance Increase

At the heart of the Raspberry Pi 5 is a new 64-bit quad-core Arm Cortex-A76 processor, clocked at 2.4GHz with encryption extensions, 512KB L2 caches per core, and 2MB shared L3 cache.

This new Broadcom BCM2712 SoC (System on a Chip) delivers a 2-3x performance increase over the previous generation Raspberry Pi!

Raspberry Pi 5

Improved Graphics Performance with Dual 4Kp60 Display Output

The Raspberry Pi 5 gets a significant boost in graphics performance from the 800MHz VideoCore VII GPU connected to the BCM2712 via PCI Express. It allows the Raspberry Pi 5 to deliver full dual 4Kp60 display output via micro HDMI. These performance improvements provide a smooth desktop experience when browsing the web and streaming video.

Raspberry Pi 5

Advanced I/O Capabilities including PCI-E!

For the first time, this is a full-size Raspberry Pi computer using Raspberry Pi’s in-house silicon.

The RP1 “southbridge” provides the majority of I/O capabilities for the Raspberry Pi 5, providing a step-change in peripheral performance and functionality.

  • Total USB bandwidth is more than doubled, enabling faster transfer speeds to external UAS drives and other high-speed peripherals
  • SDR104 high-speed mode supports the highest MicroSD card double the performance
  • Single-lane PCI Express 2.0 interface with support for high-bandwidth peripherals.

Raspberry Pi 5

Dual Camera/Display (CSI/DSI) Ports!

RP1 also offers a pair of quad-lane 1.5Gbps MIPI transceivers, tripling the total bandwidth and enabling new dual CSI/DSI ports that support any combination of up to two cameras or displays.

This, along with image performance improvements from the redesigned Raspberry Pi Image Signal Processor (ISP), makes this a great new project for those using your Raspberry Pi 5 for commercial and industrial applications. opportunities and major improvements.

Raspberry Pi 5

Power Button

Creators and enthusiasts have wanted a dedicated onboard power button on the Raspberry Pi for as long as we can remember - and the Raspberry Pi 5 finally provides this much-desired convenience!

Raspberry Pi 5

Real Time Clock (RTC)

A real-time clock (RTC) built into the motherboard allows you to maintain time/date information even when powered off or not connected to the internet (with a backup battery connected). A dedicated header has been added to the board to allow the use of a backup battery for the RTC (battery sold separately). A lithium battery with a compatible header will be available after the launch of the Raspberry Pi 5 or soon thereafter.

Raspberry Pi 5

Dedicated Fan Header

The Raspberry Pi 5 includes a new dedicated fan header to the right of the familiar GPIO pin header, which allows you to connect and power a cooling fan without interfering with your GPIO-connected devices. Now you can add HATs and other hardware without the workaround of connecting fans.
Raspberry Pi 5

Custom UART Header

Another useful addition to the Raspberry Pi 5 is the custom UART header. Now you can debug and control your Raspberry Pi 5 without interfering with your GPIO pins.

This dedicated UART header also allows debugging from boot and is designed to be used with the Raspberry Pi Debug probe for fast, convenient debugging.

Raspberry Pi 5

Other Improvements and Changes

  • Mounting holes for heatsinks/coolers (designed for Raspberry Pi Active Cooler)
  • Composite video header
  • Memory indicator markings for easy card RAM identification
  • Unique card ID number on card and packaging
  • PoE header relocated
  • Audio jack removed
  • Flush underside of GPIO pins
  • Metal support tabs to protect underside components

Raspberry Pi 5 Features

Processor

  • 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with encryption extensions
  • 512KB L2 cache per core
  • 2MB shared L3 cache


Features

  • VideoCore VII GPU supporting OpenGL ES 3.1, Vulkan 1.2
  • Dual 4Kp60 HDMI® displays with HDR output
  • 4Kp60 HEVC decoder
  • LPDDR4X-4267 SDRAM 4GB
  • Dual-band 802.11ac Wi-Fi®
  • Bluetooth 5.0 / Bluetooth Low Energy (BLE)
  • MicroSD card slot supporting high-speed SDR104 mode
  • 2x USB 3.0 ports supporting simultaneous 5Gbps operation
  • 2x USB 2.0 ports
  • Gigabit Ethernet with PoE+ support (requires separate PoE+ HAT specific to Pi5)
  • 2x 4-lane MIPI camera/display transceivers
  • PCIe 2.0 x1 interface for fast peripherals (separate M.2 HAT or other adapter (requires USB-C)
  • 5V/5A DC power over USB-C with Power Delivery support
  • Raspberry Pi standard 40-pin GPIO header
  • Real-time clock (RTC) powered by external battery (sold separately)
  • Power button

Raspberry Pi 5 Technical Drawing

Raspberry Pi 5 Technical Drawing

Weight(Kg)
0.2
