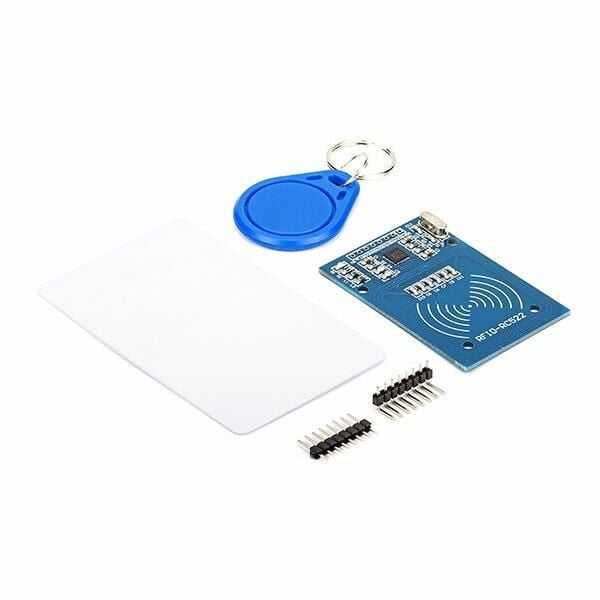

RC522 RFID NFC Kit - RC522 RFID NFC Module. Card and Key Fob Kit (13.56 Mhz)



RC522 - RFID Reader / Writer 13.56MHz Kit RC522 13.56 MHz NFC Reader Module includes 13.56 MHz NFC Card and 13.56 MHz NFC Key Fob. MF RC522 is a highly integrated transmission module for communication at 13.56 MHz. RC522 supports ISO 14443A / MIFARE mode.

RC522 - RFID Reader features an outstanding modulation and demodulation algorithm to deliver effortless RF communication at 13.56 MHz. S50 RFID Cards will streamline the process to help you learn and add 13.56 MHz RF passthrough to your project.

The module uses SPI to communicate with microcontrollers. It is used in various hobby, robotics, Arduino projects, home automation, industrial systems and remote control systems.

Note: It does not support RFID cards operating at 125 KHz frequency. It only supports cards operating at 13.56 MHz frequency.



• Operating Current: 13-26mA / DC 3.3V
• Idle Current: 10-13mA / DC 3.3V
• Sleep Current: <80uA
• Peak Current: <30mA
• Operating Frequency: 13.56 MHz
• Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
• Environmental Operating Temperature: -20 - 80 degrees Celsius
• Environmental Storage Temperature: -40 - 85 degrees Celsius
• Relative humidity: relative humidity 5% - 95%
• Reader Distance: ≥ 50mm/1.95" (mifare 1)
• Module Size: 40mm × 60mm
• Module interface: SPI
• Data transfer rate: Maximum 10Mbit/s

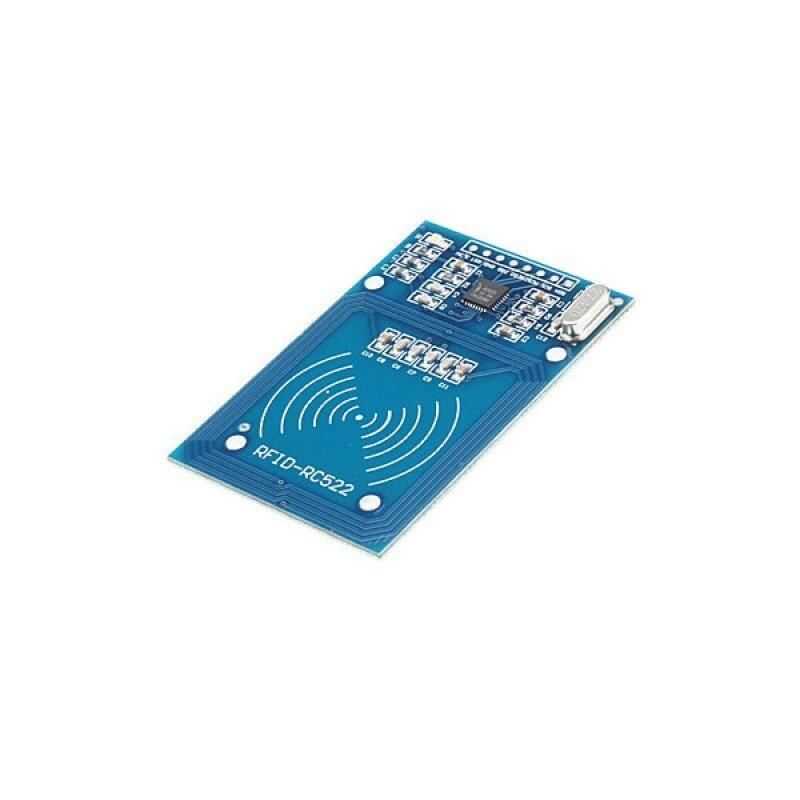

RC522 13.56 MHz NFC Reader Module

13.56 MHz NFC Card
