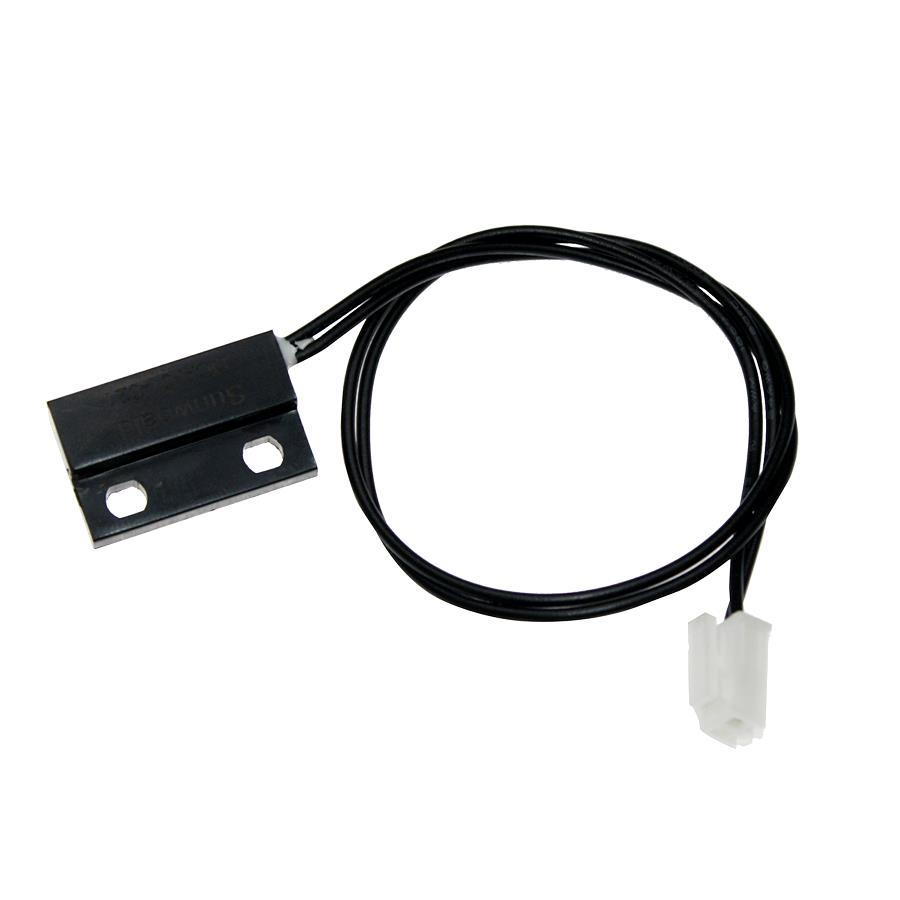

Sensor used in white goods caps and gasoline tank caps.
Electrical Specifications:
Maximum contact rating: 10W
Max switch voltage: 100V
Max switch current: 0.5A
Maximum contact resistance: 100 mΩ
10 minutes insulation resistance: 10 Ω
7 Electrical life: 1 x 10 (5Vdc, 10mA)
Min shock: 30G
Min vibration: 30G (10 ~ 50Hz)
Temperature classification: -10ºC ~ + 60ºC
Thermal shock: -20ºC ~ + 70ºC
