RS-540 High Torque DC Cordless Drill Motor rs540

Ratings & Reviews (0)
Comment
Show More: High Torque Motors
Brand: Motorobit
Product Code: MTR.RDZ.01.000019
Stokta 100+ ürün
140.80 TL + VAT
VAT Included: 168.96 TL

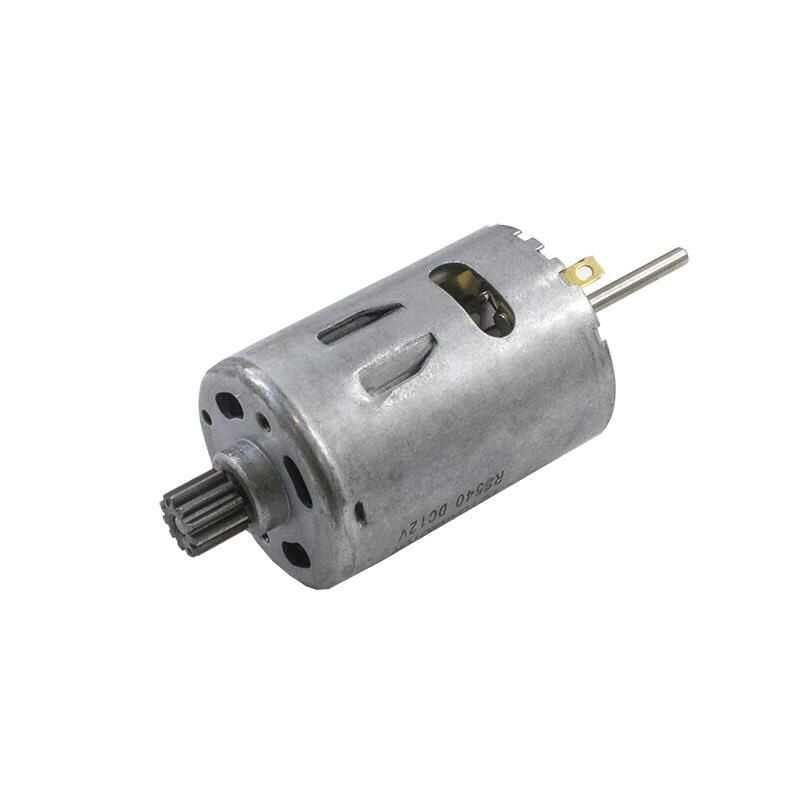

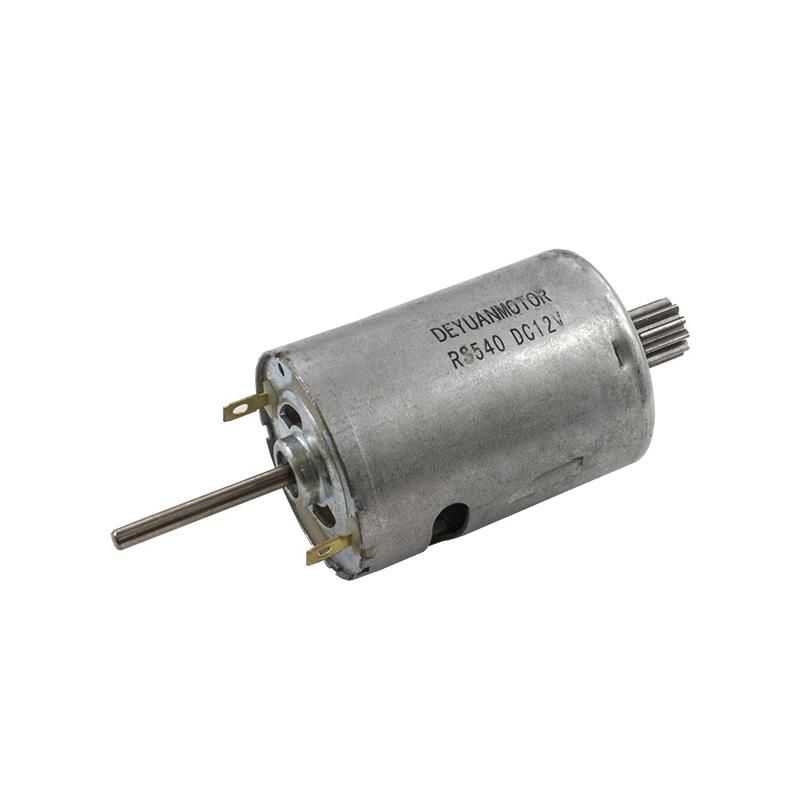

RS-540 High Torque DC Cordless Drill Motor


RS-540 High Torque DC Cordless Drill Motor. It has 12V DC operating voltage and 20000 rpm rotation speed. Thanks to its high torque structure, it is especially suitable for use in cordless hand drills and cordless screwdrivers. This motor, which has a double-sided output, has a metal gear on one side and a 3.17mm long shaft on the other side.


Technical Specifications:

  • Operating Voltage: 12-14.4V DC
  • Speed: 20000 rpm
  • Idle Current: 1 A
  • Power: 12W

Product Dimensions:

  • Motor Diameter: 35.8mm
  • Motor Body Length: 58mm (Excluding Shaft)
  • Shaft Length: 27.2mm
  • Shaft Diameter: 3.17mm
  • Gear Diameter: 10mm
  • Gear Height: 9mm
  • Number of Teeth: 11
Weight(Kg)
1
