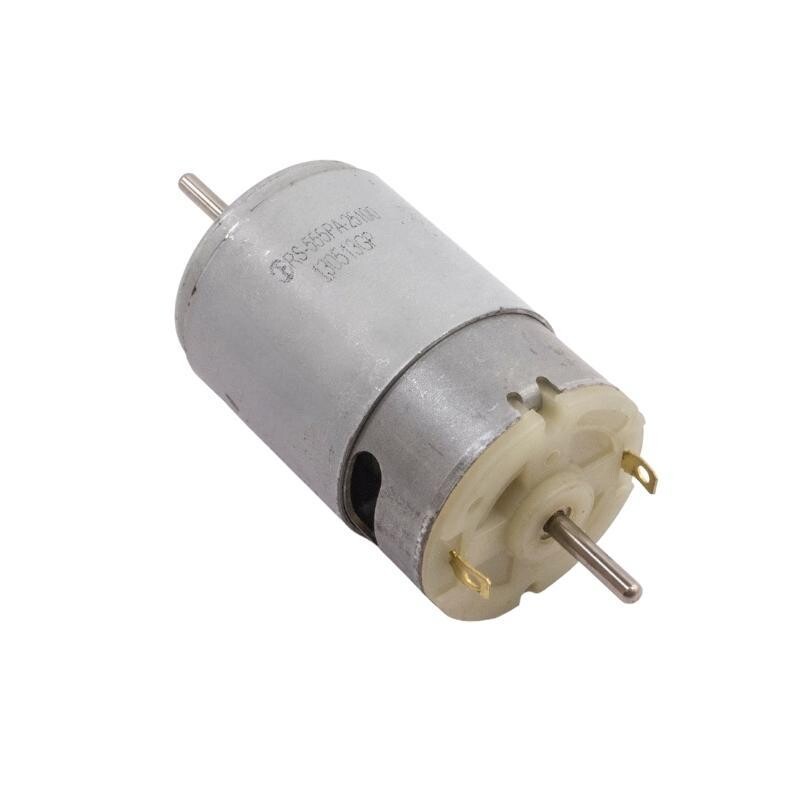

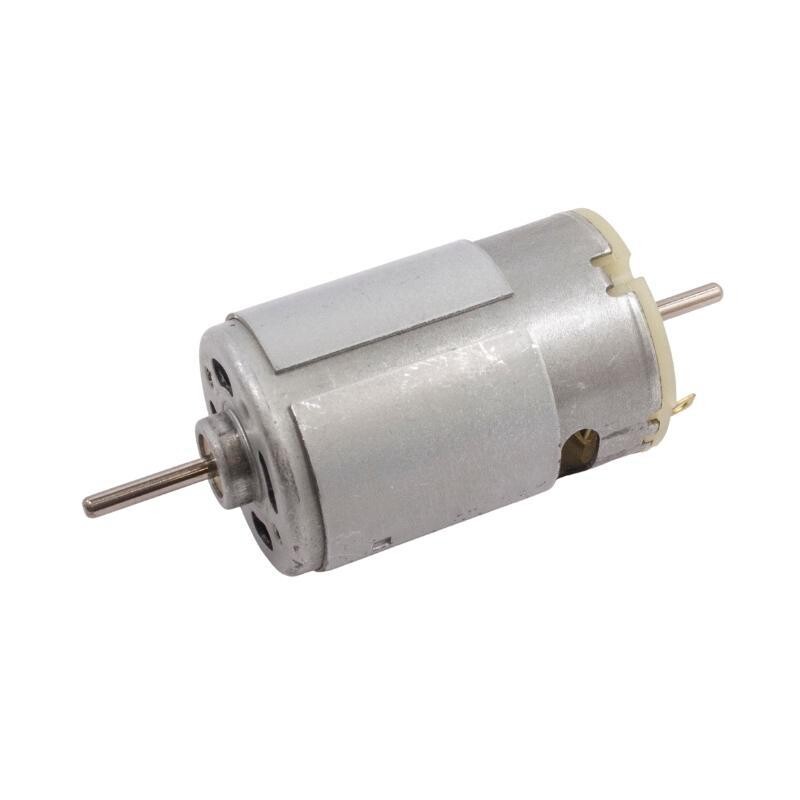

RS555 24V 10000RPM Gearless DC Motor - Double Shaft
RS555 24V 10000RPM Gearless DC Motor. It has 24V DC operating voltage and 10000 rpm rotation speed. It is double national. You can use it in various projects.
Technical Specifications:
- Operating Voltage: 24VDC
- Speed: 10000 RPM
- Idle Current: 0.12 A
- Stress Current: 3.8A
- Power: 91.2W (Stress power)
Product Dimensions:
- Motor Diameter: 37mm
- Motor Body Length: 58mm (Excluding Shaft)
- Shaft Length: 17mm upper shaft - 14mm bottom shaft
- Shaft Diameter: 3.17mm
