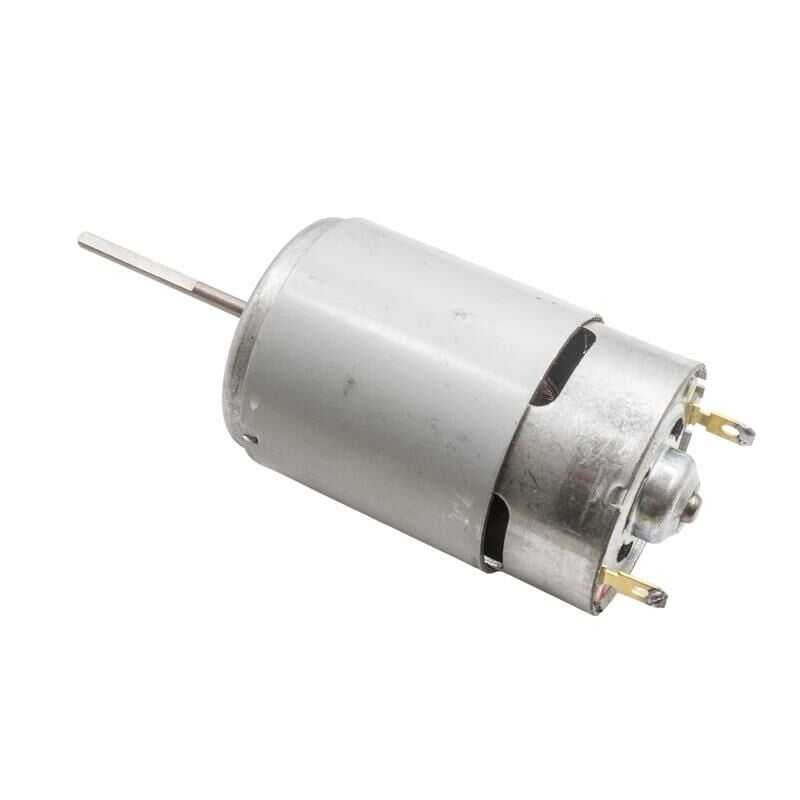

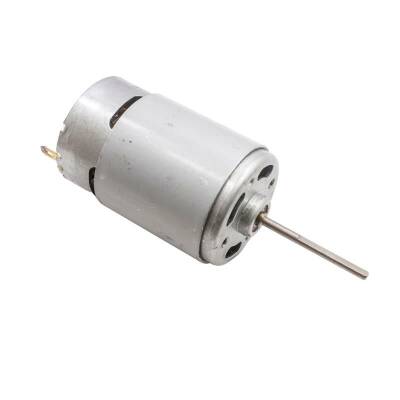

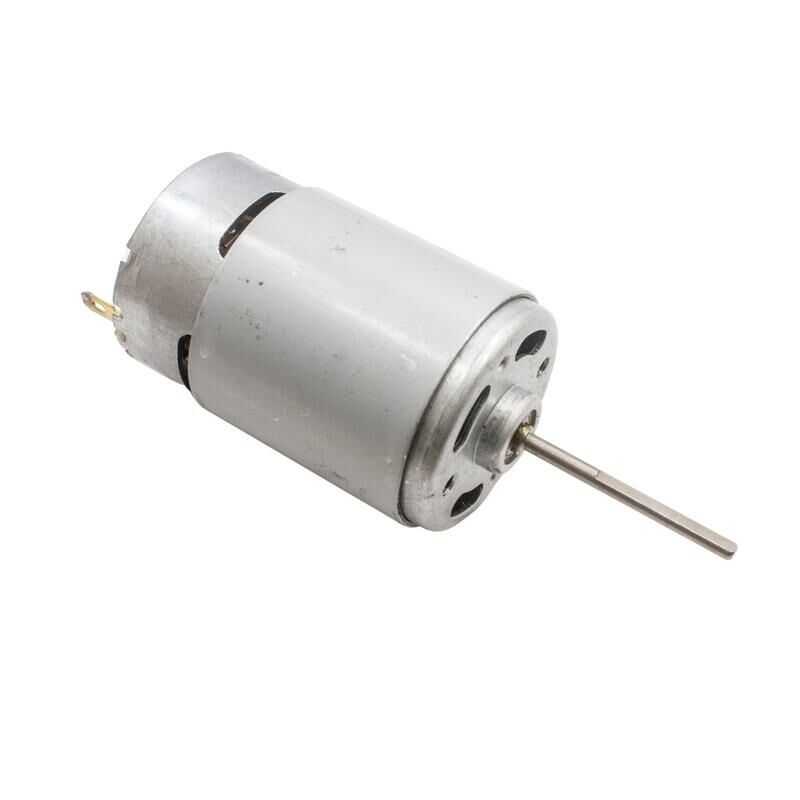

RS775 24V 4000RPM Gearless DC Motor
RS775 24V 4000RPM Gearless DC Motor. It has 24V DC operating voltage and 4000 rpm rotation speed. This engine, which is generally preferred in RC vehicle projects, is especially suitable for use in cordless hand drills and cordless screwdrivers, thanks to its high-torque structure.
Note: The product is stock material. For this reason, there may be small stains or solder marks on it. The functionality of the products is tested and shipped.
Technical Specifications:
- Working Voltage: 24VDC
- Speed: 4000 RPM
- Idle Current: 0.15 A
- Stress Current: 5A
- Power: 120W (Strength power)
Product Dimensions:
- Motor Diameter: 44.5mm
- Motor Body Length: 66.3mm (Excluding Shaft)
- Shaft Length: 39.8mm
- Shaft Diameter: 2.8mm
