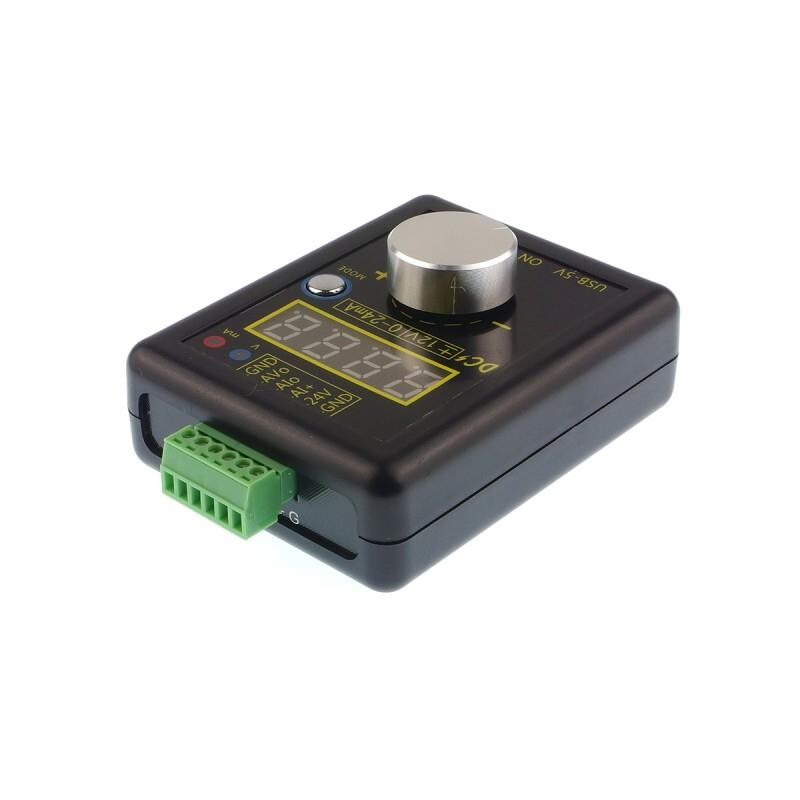

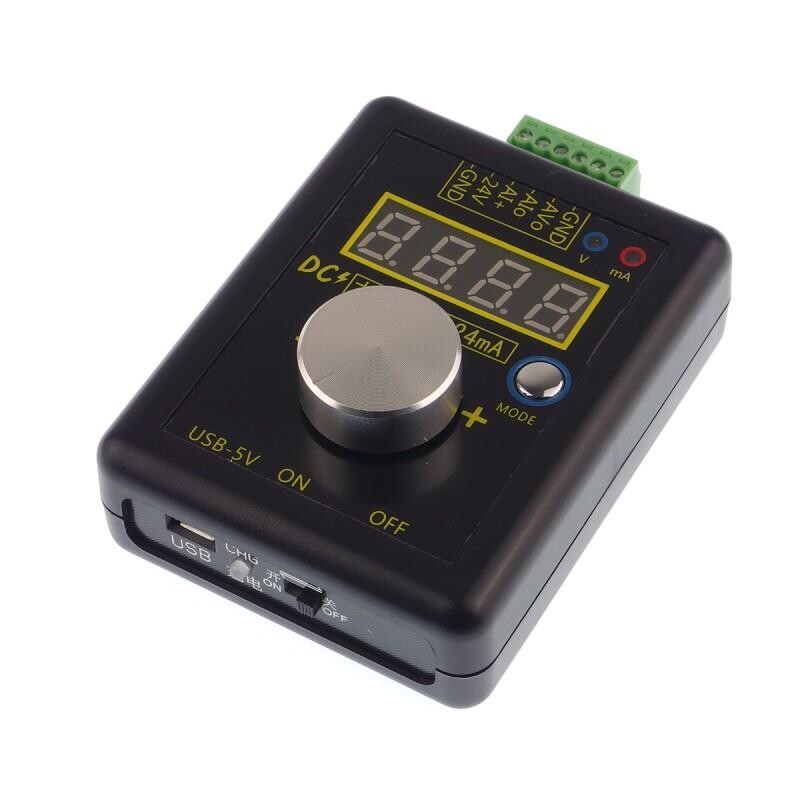

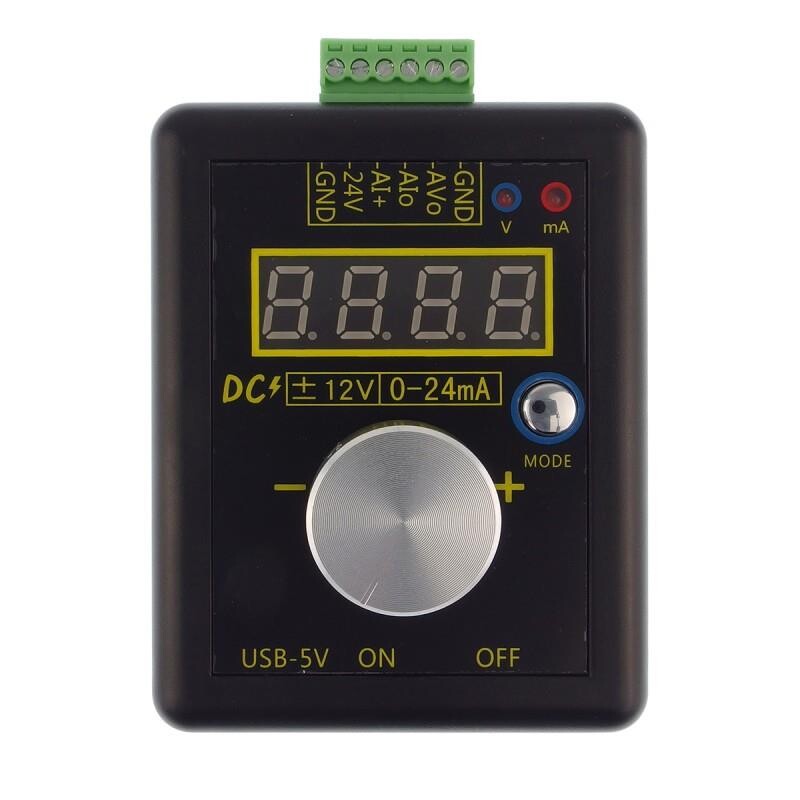

SG-002 Analog ±12V 0-24mA Signal Generator
Voltage and current signal generator is a portable device that enables the generation of signals with set parameters. It is designed for a variety of applications such as testing and calibration of electronic devices, circuit testing, diagnostics and many other applications.
The generator produces a voltage signal in the range of ±12 V and a voltage signal from 0 to 24 It provides a current signal in the mA range. It is equipped with a four-digit LED display that provides convenient reading of the set output signal parameters. Additionally, the generator has a signal parameter storage function that allows easy retrieval of preset configurations. Control of the signal parameters is intuitive and is carried out with a potentiometer.
The device can be powered in several ways: a screw connector with a voltage range of 15 V to 30 V or a Micro USB connector through. Additionally, the generator is equipped with a lithium battery with a capacity of 1100 mAh, which allows portable and independent use of the device for a certain period of time without connecting to mains electricity.
Voltage and current signal generator is a useful tool for electronics engineers, technicians, engineers and anyone who works with electronic circuits. Its functionality, compact size and ease of use make it an ideal tool for many applications in the field of electronics and automation.
Features
- Handy, portable generator
- Voltage signal ±12 V
- Current signal 0 - 24 mA
- 4-digit LED display
- Storage of output signal parameters
- Potentiometer for setting control
- Power supply: Screw connector: 15 V - 30 V | Micro USB connector: 5 V || Lithium battery 3.7 V 1100 mAh
- Dimensions: 89x69x28mm
- Weight: 115 g
