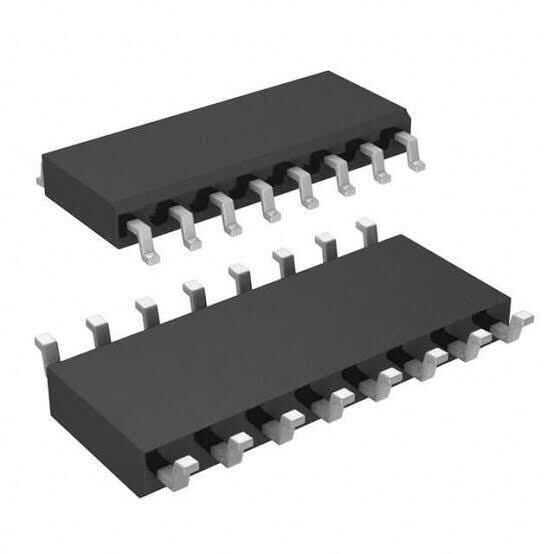

SG3525A series pulse width modulator integrated circuits, all It is designed to offer improved performance and reduced external parts count when used in the design of switching power supplies. The on-chip +5.1 V reference is clipped by ±1%, and the input common-mode range of the error amplifier includes the reference voltage, eliminating external resistors.
