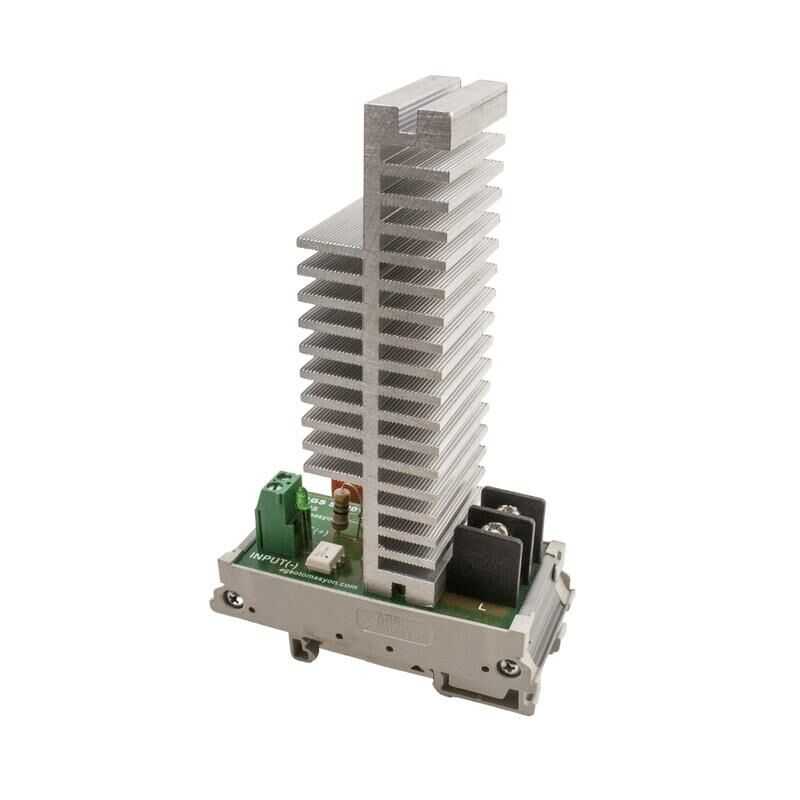

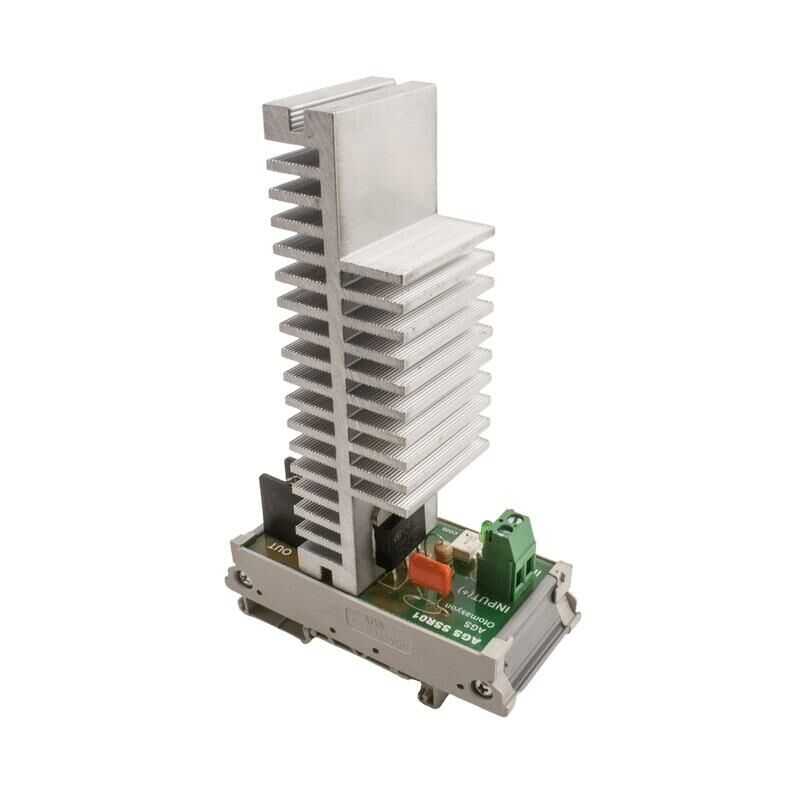

SSR-01 20A Single Channel SSR Relay Module - Rail Mounted
SSR-01 20A Single Channel SSR Relay Module - Rail Mounted. It is a domestic circuit board produced for use with PLCs.
Features:
- Single channel 40A cooler SSR
- No arcing
- Long on-off life
- 18V & 40V Wide input range
- 90V & 250V AC Wide output range
- Optocoupler isolated
- Inputs compatible with PLCs with NPN and PNP outputs
- Ability to draw Max 40A, continuous 20A from the output
- Suitable for PID
- Inputs LED
- W automat rail mounting, Convenient design, advantage in assembly labor
- Dimensions: Length: 85mm, Width: 39mm, Depth: 140mm
Electrical Specifications:
- Operating Voltage: 18V-40V
- input current range: 7-8mA
- Output Voltage Range: 90V-250V
- Max. Continuous Current: 20A
- Max. Current Overflow (10ms): 40A
Connection Diagram:
.png)
