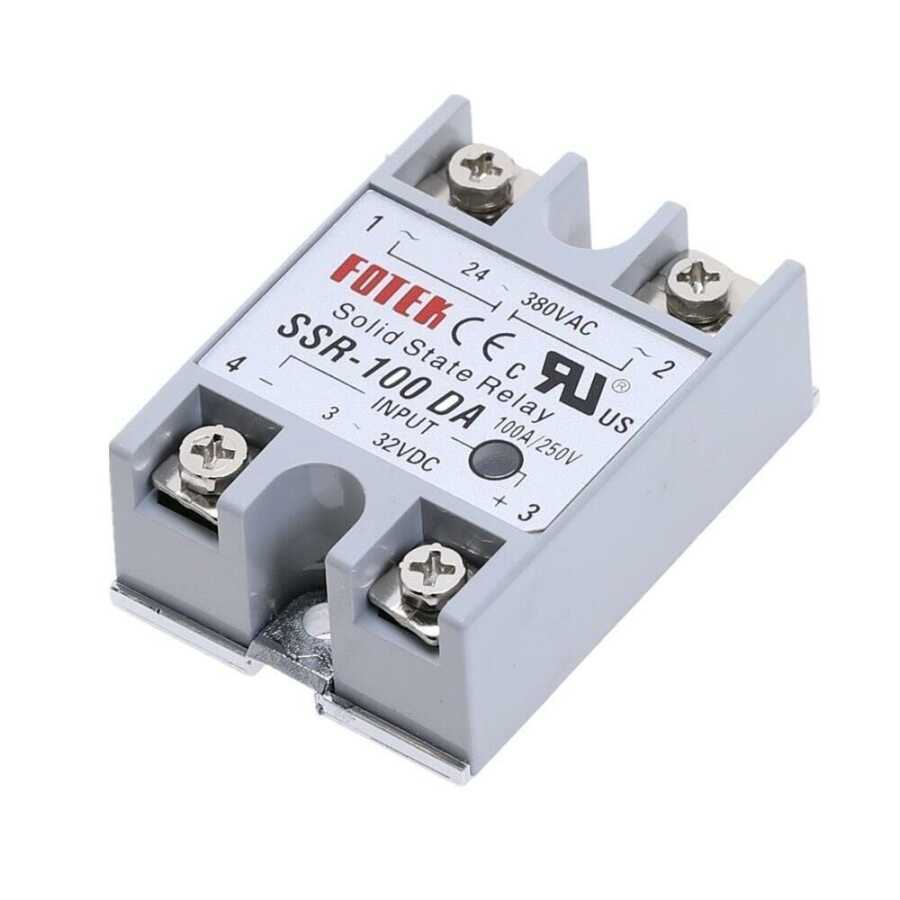

SSR-100DA Solid State Relay 100A
Fotek SSR-100DA 100 Ampere Solid State (Relay) relay. Solid state relays work like classical relays or contactors where they are used. Since they consist of a semiconductor circuit, they are longer lasting and more durable than other products with mechanical contact outputs.
Fotek Solid State Relay This product, which is triggered by DC 3-32 volt supply, can switch AC 24-380V electricity. It can also work compatible with programming cards such as Arduino and Raspberry Pi.
All Solid State Relay types
here you can find it.
Features:
- Model: SSR-100 DC
- Control Mode: DC-AC
- Load Voltage: 24-380VAC
- Load Current: 100A
- Control Voltage: 3 -32VDC
- Operating Indicator: LED
- Shutting Voltage: ＜3.5 VDC
- Trigger Current: Max. 12.0 mA
- Control Method: Zero cross switching
- Leakage Current: Max. 5 mA
- Response Time: Max. 8.3 ms (60 Hz)
- Input Voltage Immunity: 2 KV (EN61000-4-4)
- Insulation Power: 4 KVrms (EN60950/VDE0805)
- Insulation Strength: 100MΩ / 500VDC (EN60950/VDE0805)
- Coating Material: ABS (UL:94V0)
- Ambient Conditions: -40°C ~ +80°C；35~85 %RH

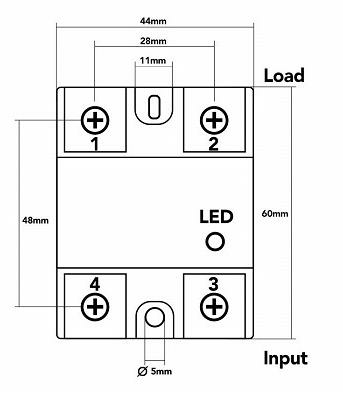

Fotek SSR Datasheet
