STM32F103C8T6 ARM Mini Development Board

STM32F103C8T6 Minimum System Board is Microcomputer STM32 ARM Core Board. ARM Cortex-M3 is suitable for students who want to learn the 32-bit core STM32 microcontroller.



The product is not original, it is a clone with the same function.

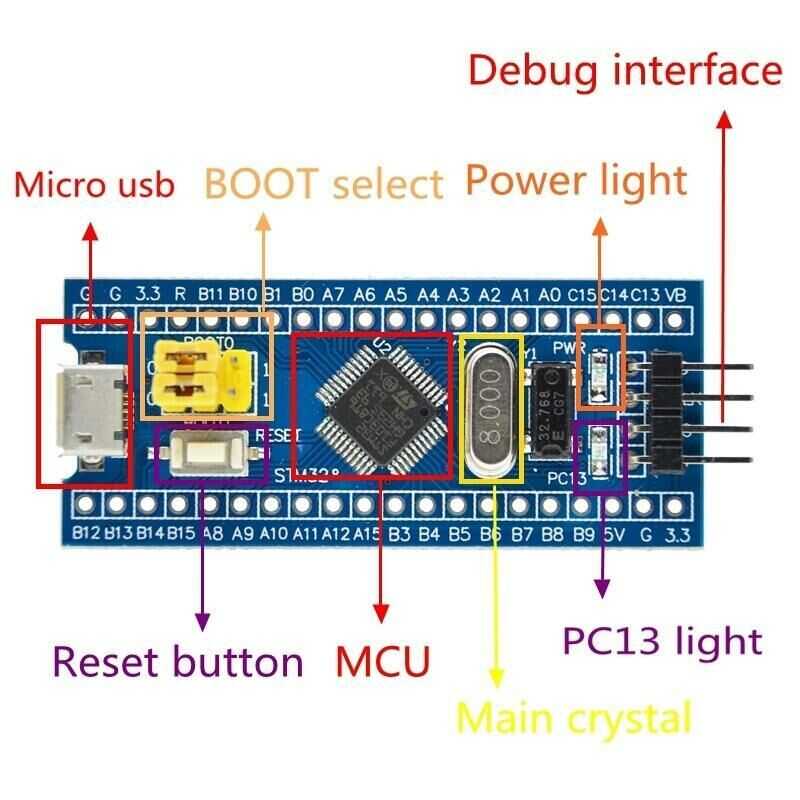

Technical Specifications

• Onboard Mini USB interface, you can supply the board's power supply and USB communication
• Onboard test indicator LED
• On-board reset button and power indicator LED
• On-board 100ma 3.3V Regulator
• All GPIOs are selected and pin names are marked.

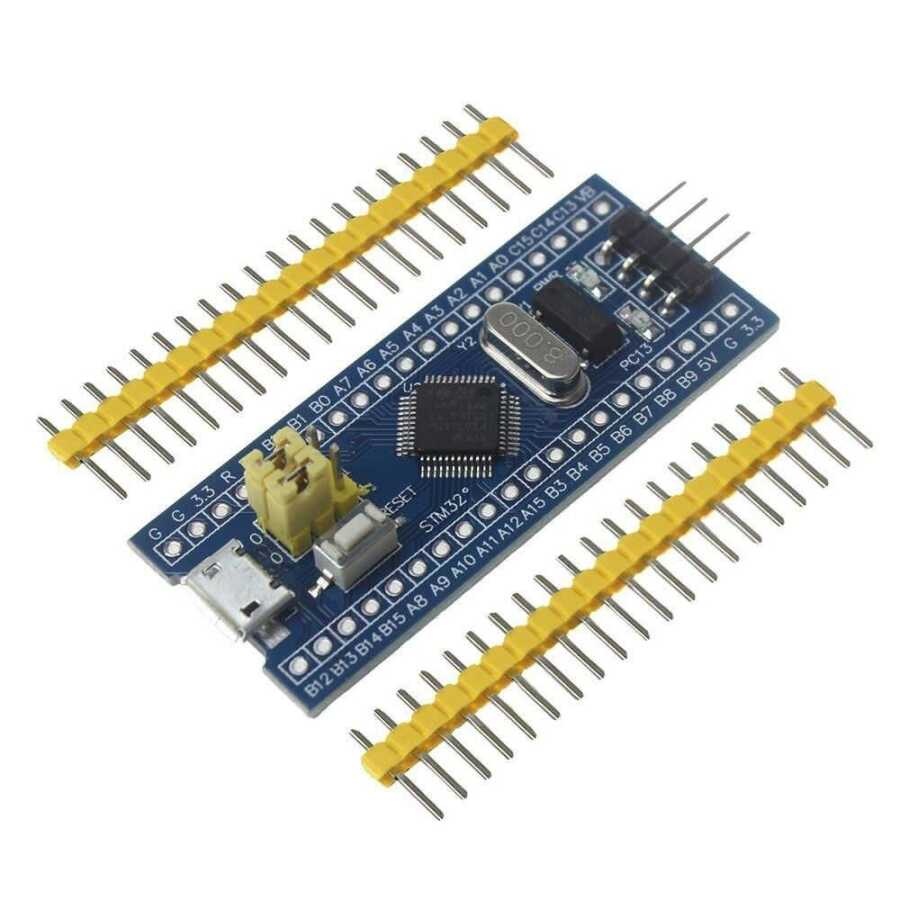

• Once the headers are soldered, you can plug them directly into the breadboard.
• CPU Part Number: STM32F103C8T6
• Core: ARM 32 Cortex-M3 CPU.
• Debug mode : SWD (programmable with ST-LINK V2)
• CPU Internal Maximum Clock: 72MHz
• External Clock Source: 8MHz crystal
• 64K flash memory, 20K SRAM
• 2.0-3.6V power, I/O
• Reset (POR/PDR)
• Size: 5.3cm x 2.2cm
