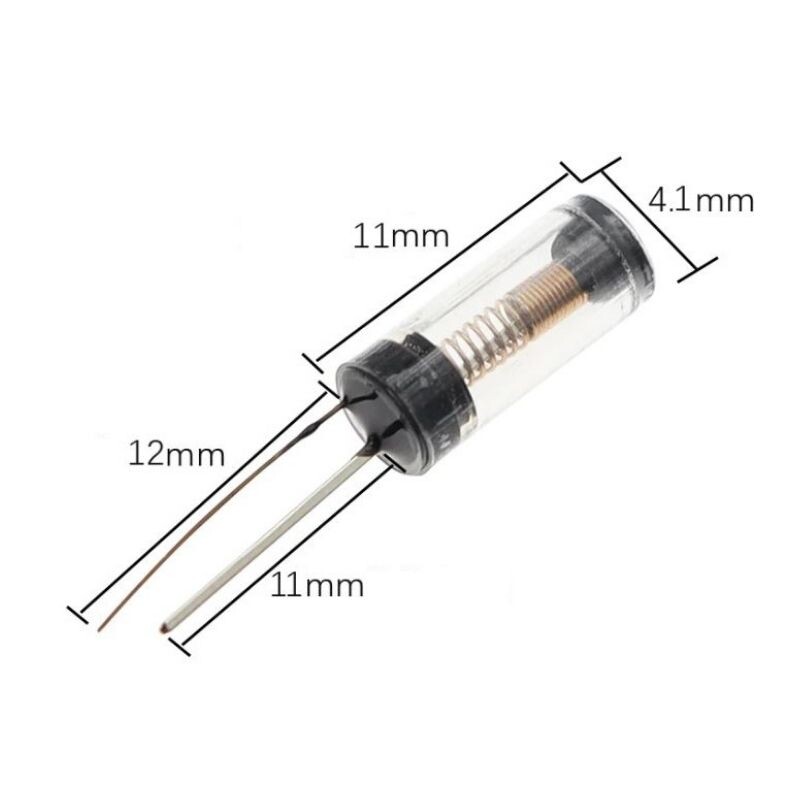

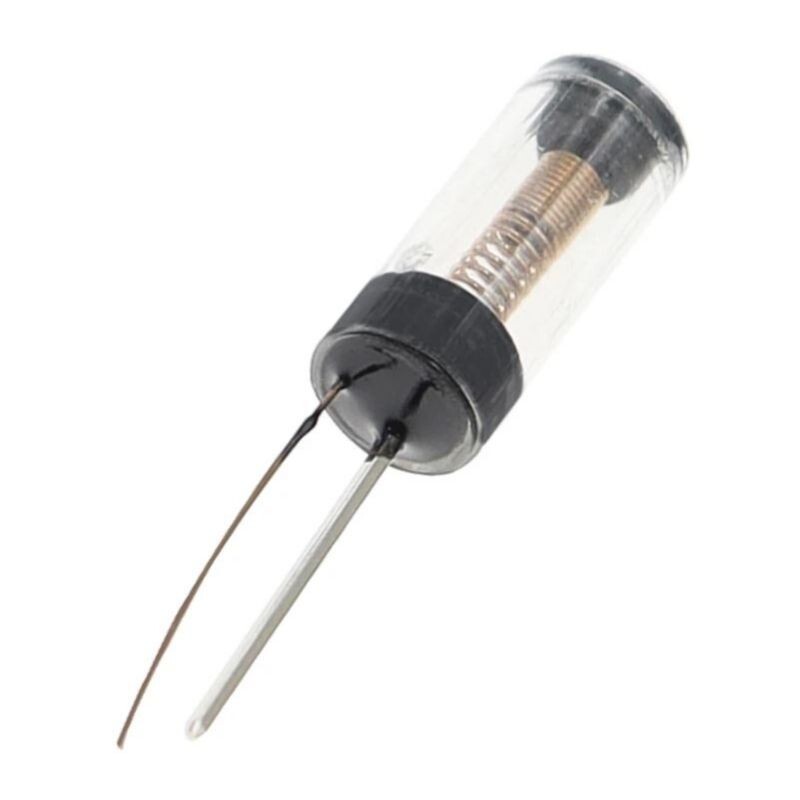

SW-18020P High Sensitivity Vibration Sensor
It is a simple vibration switch. It is generally used in electronic applications, toys, alarm systems, home appliances and smart home projects. SW18020 sensors are spring type, they are triggered regardless of the direction of vibration.
SW-18020P Vibration Sensor - Technical Specifications
- Operating Voltage: <12V
- Operating Current:<20mA
- Transmission Time: 2ms
- Indoor Resistance: <10Ω
- Open Resistance: >10MΩ
- Operating Temperature Range: -40⁰C – 80⁰C
- Operating Life: 200,000 signals
