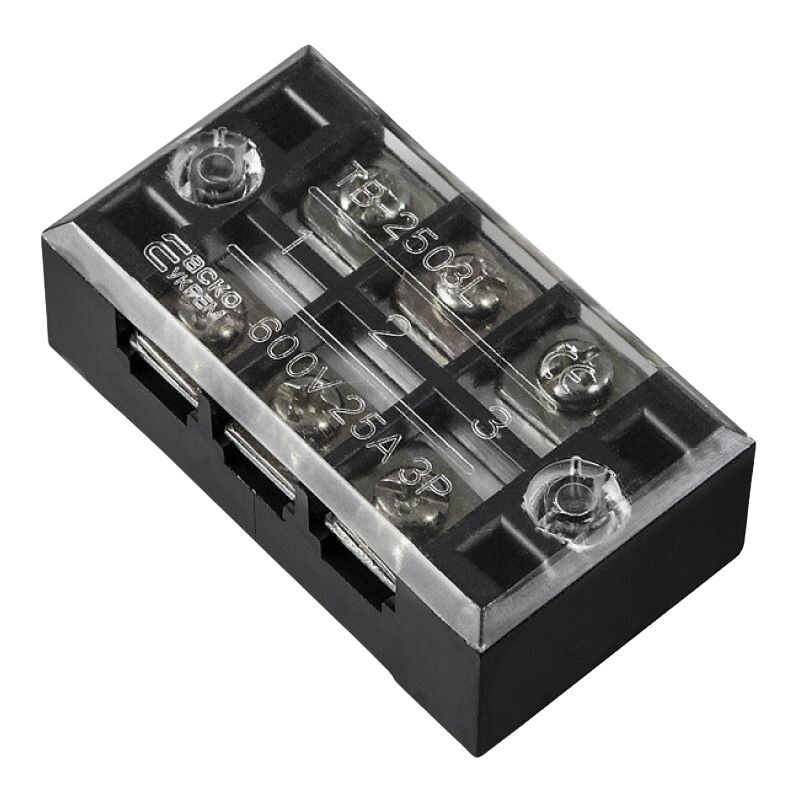

TB-2503 3P Double Row Terminal Block - 600V 25A

TB-2503 3P Double Row Terminal Block - 600V 25A

TB-2503 3P Double Row Terminal Block - 600V 25A, double row terminal blocks is a product that you can use to facilitate and organize cable connections in electrical - electronic projects. It enables the cables to be connected to each other by screwing without the need for soldering or any other addition.

Features

• Model: TB-2503
• Number of Poles: 3
• Voltage: 600V Max.
• Current: 25A Max.
• Usage Temperature Range: -40°C - +115°C
• Size: 54 x 28 x 19mm
• Cable Cross-Section: 6mm2 / 10AWG
• Screw: M4
