TM1638 7-Segment Display Module

Ratings & Reviews (0)
Comment
Show More: Segment Display
Brand: Motorobit
Product Code: EKN.SEG.01.000005
Stokta 100+ ürün
105.60 TL + VAT
VAT Included: 126.72 TL

TM1638 7-Segment Display Module

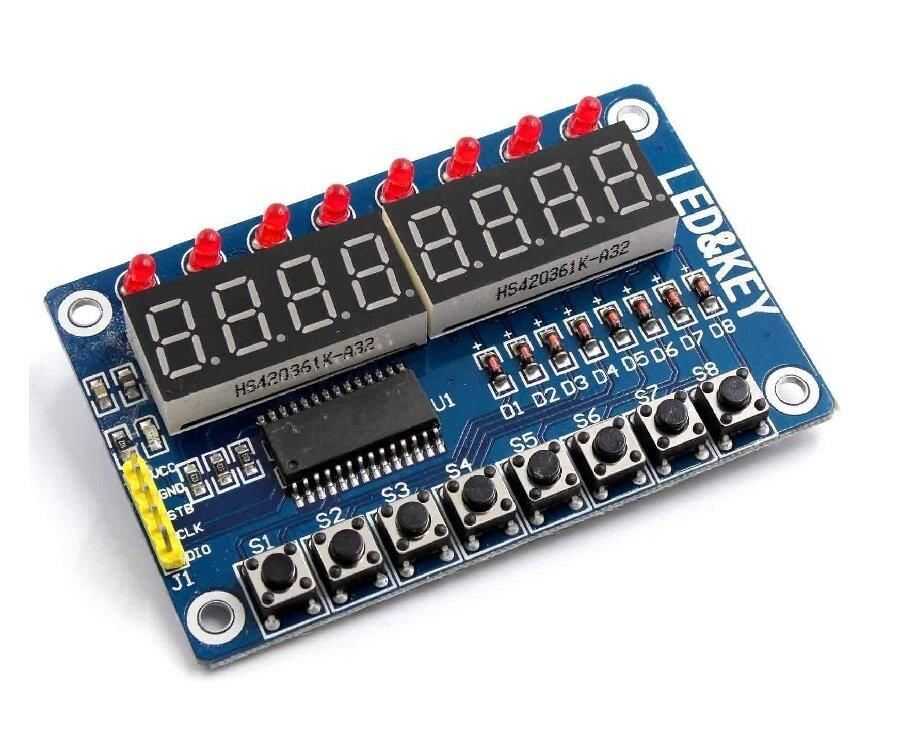

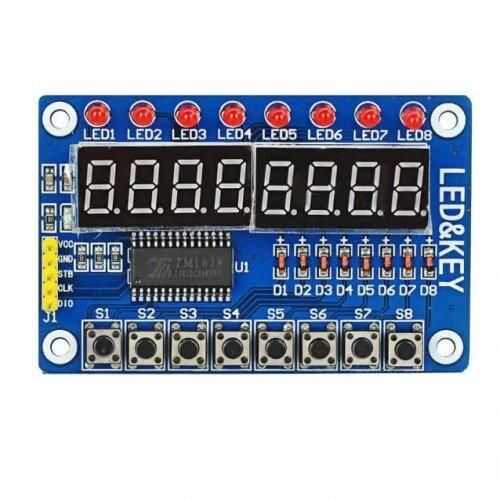

8-digit 7-segment display module (HCMODU0095) allows full control of the display using only 3 digital pins on Arduino and other microprocessors giver  It uses TM6138. In addition to the 7-segment displays, there are 8 3mm LEDs and 8 buttons that can be controlled individually. It is also controlled by TM6138 IC and thus can be controlled without requiring extra digital pins. With standard 5-pin header connections, it provides an easy interface to your microcontroller.
The module has a special library (HCTI6138) for easy use with Arduino. The library will provide full control over the 7-segment display (providing the ability to display alphanumeric text), read the status of 8 LEDs and the keypad. It is also capable of controlling multiple modules from an Arduino.

Connection Pins
VCC -> + 5V
GND -> GND
STB -> PIN A7
CLK -> PIN A8
DIO -> PIN A9

Technical Specifications

  • Product code: HCMODU0095
  • Supply Voltage: 5V
  • Controller: TM1638
  • Dimensions: 76mm x 50mm

Weight(Kg)
0.05
