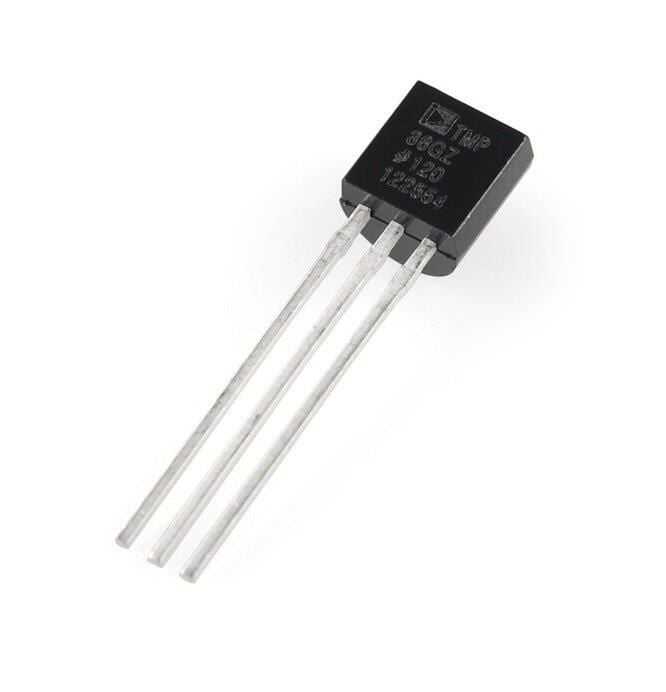

TMP36 GT Temperature Sensor

Temperature Sensor - TMP36 is a low voltage, precision centigrade temperature sensor. It provides a voltage output linearly proportional to the Celsius temperature. It also requires no external calibration to provide typical accuracies of ± 1 °C over a temperature range of +25 °C and ± 2 °C over a temperature range of ± 40 °C and + 125 °C.

Specifications:

• Voltage Input: 2.7 V to 5.5 VDC
• 10 mV / °C scale factor
• ±2° at High Temperature C accuracy
• ± 0.5 °C linearity
• Operating Range: −40 °C to +125 °C



Datasheet
