UC2845 SMD SOIC-8 Integrated

UC384xB family of control ICs, offline or DC to DC constant frequency current mode control with minimum number of external parts It provides the necessary features to implement schemas. Internally implemented circuits, a clipped oscillator for precise DUTY CYCLE CONTROL with a pickup current of less than 0.5 mA, a precision reference clipped for accuracy at the error amplifier input, logic to guarantee latched operation, as well as It includes a PWM comparator that provides current limit control and a totem pole output stage designed to source or sink high peak current.



Series	UC
Supply Voltage	11-30V
Output Voltage	4.95-5.05V
Number of Exits	1 Exit

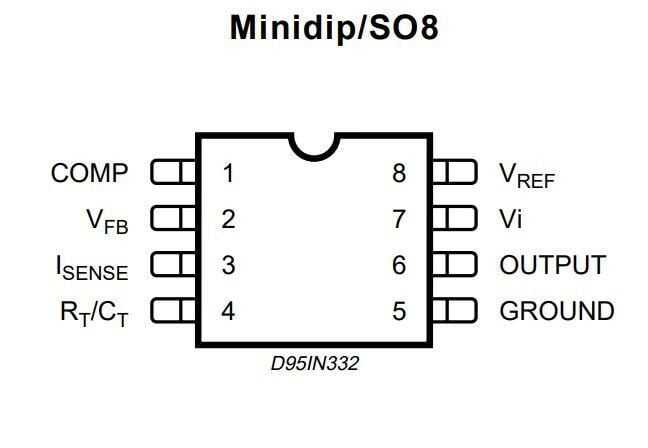

Number of Pins	8
Package Type	SOIC-8
