UC3845BD1013TR SMD SOIC-8 Integrated
UC384xB family of control ICs, offline or DC to DC constant frequency current mode control with minimum number of external parts It provides the necessary features to implement schemas. Internally implemented circuits, a clipped oscillator for precise DUTY CYCLE CONTROL with a pickup current of less than 0.5 mA, a precision reference clipped for accuracy at the error amplifier input, logic to guarantee latched operation, as well as It includes a PWM comparator that provides current limit control and a totem pole output stage designed to source or sink high peak current. The output stage suitable for driving N-Channel MOSFETs is low off-state.
Uses
| Series |
UC384X |
| Supply Voltage |
30V |
| Output Voltage |
4.9-5.1V |
| Output Current |
1A |

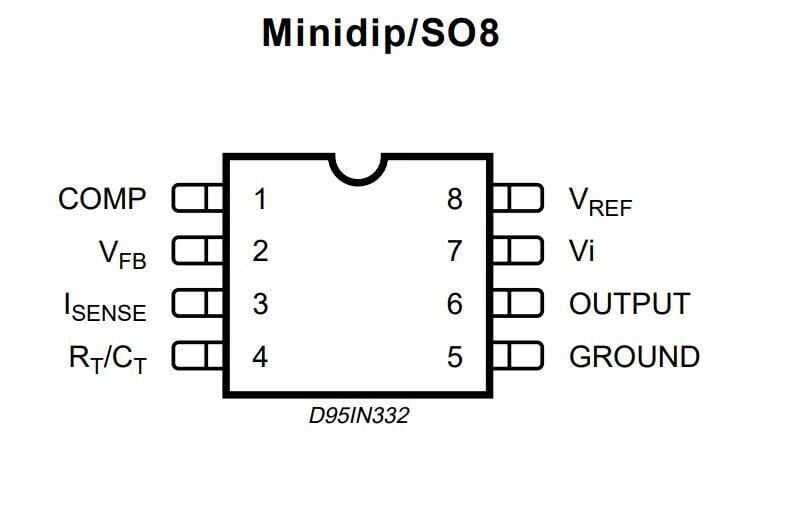

| Number of Pins |
8 |
| Package Type |
SOIC-8 |
