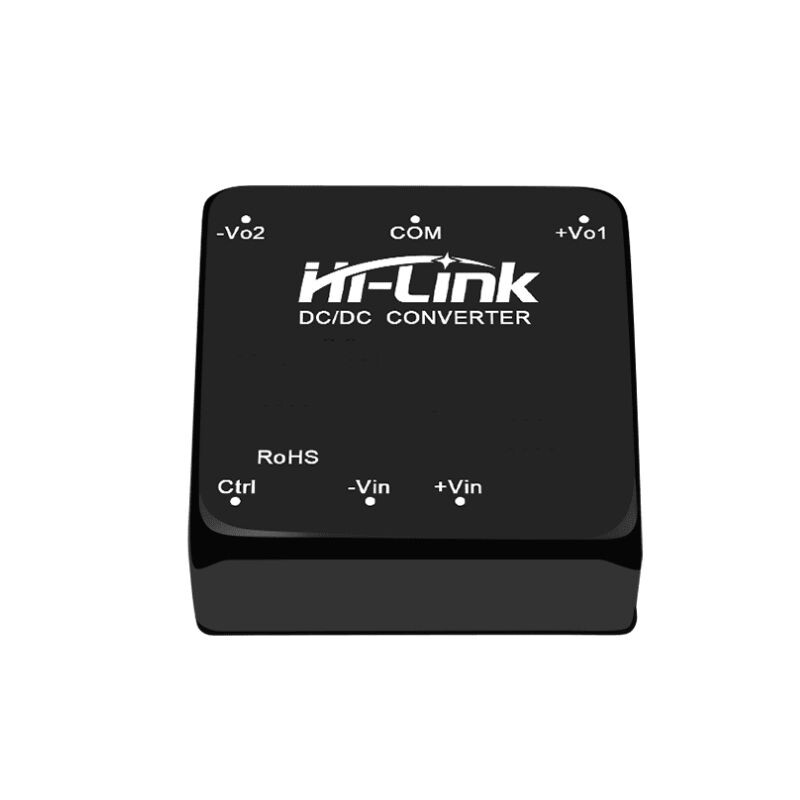

URA4805YMD-10WR3 DC-DC 10W 18-75V Input / 5V Output Voltage Converter
Hi-Link Dc-Dc voltage converter is a voltage converter used to fix the input voltage within a certain voltage range. These types of voltage converters are used when we want to reduce, raise or stabilize the input voltage.
The input and output voltages of the product are stated in the product name and technical specifications. Please select the product by checking the input and output voltage values.
Transmission efficiency is 91%. It has short circuit protection. Wide supply voltage range (4:1).
It has a long-lasting design. Very low power consumption when idle (0.036W)
Technical Specifications
- Input Voltage: 18 - 75VDC
- Maximum Input Current: ≤1.0
- Output Voltage: 5VDC
- Recommended Output Current: 1000 mA
- Output Power: 10W
- Isolation Voltage: 1500V
- Operating Temperature Range: -40° ~ +85°C
- Package Type: SIP
- Dimension: 25.4mm x 25.4mm x 11.7mm
Typical Circuit Connection
