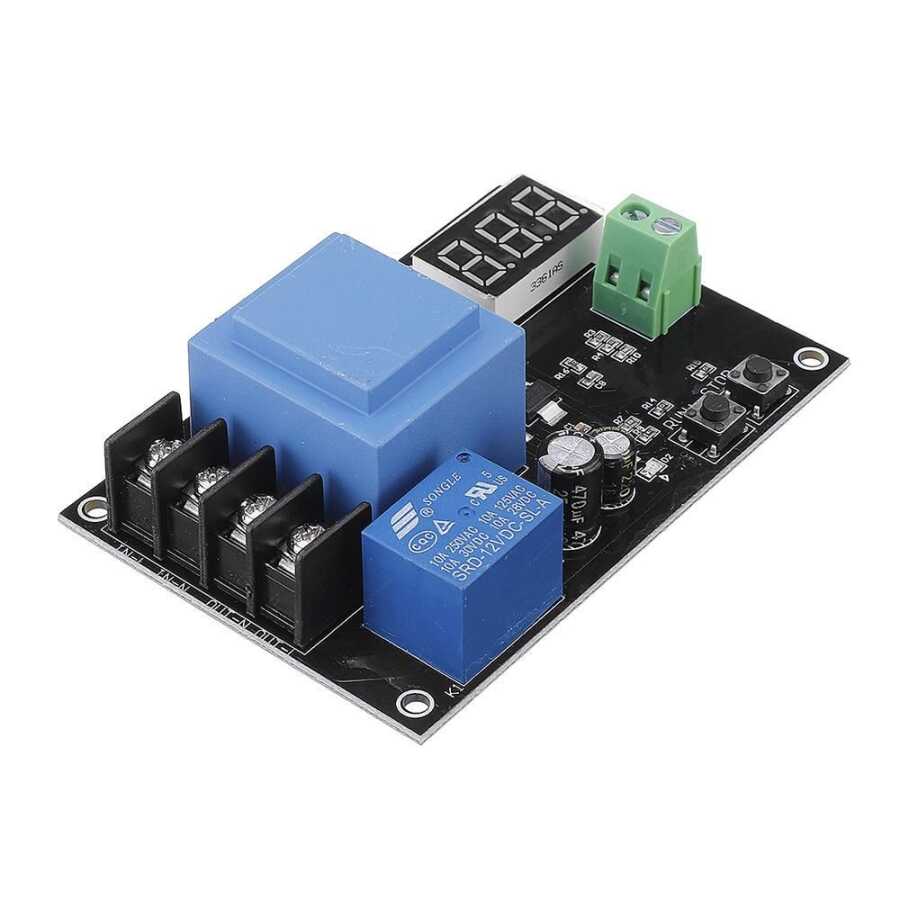

VHM-002 3.7-120V Lithium Battery - Battery Charge Control Circuit

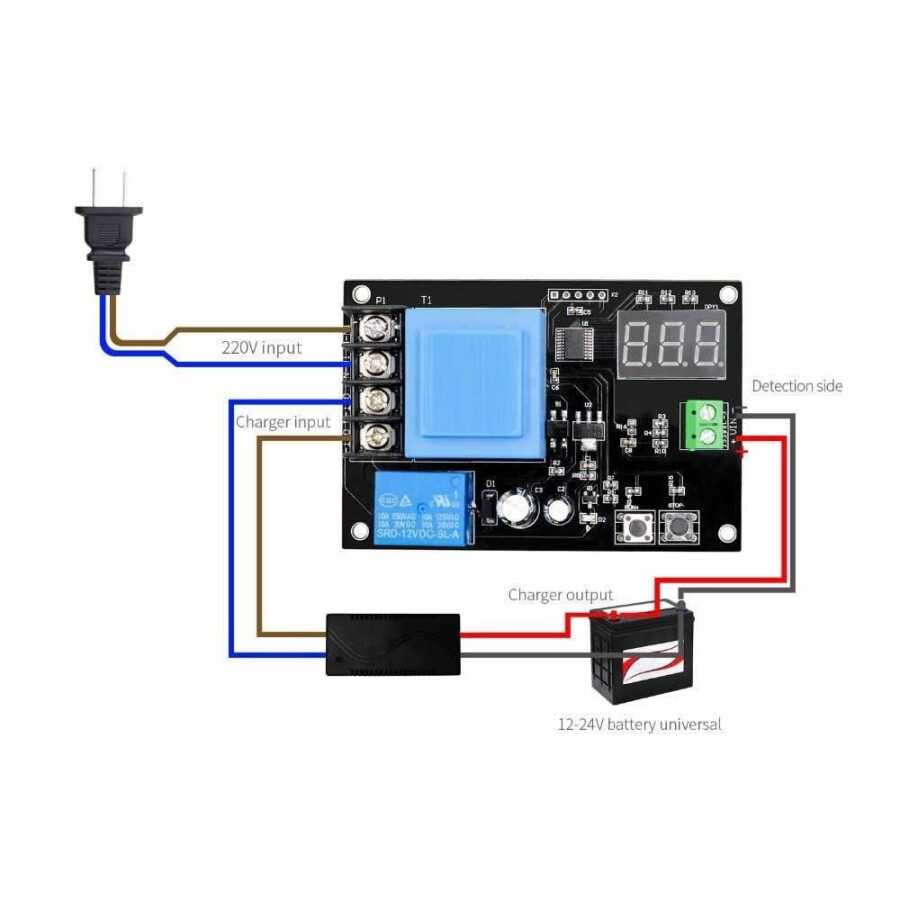

VHM-002 Charging circuit, Lithium in the range of 3.7-120V can be charged It is a protective circuit with which you can charge batteries and accumulators. Since this range covers all batteries, it can charge all lithium batteries. It charges your battery between the upper and lower voltage values entered by pressing and holding the RUN+ and STOP- buttons on it. The product input voltage is AC 220V. Thanks to the circuit on it, the relay is controlled with 220v. In the meantime, an external ac dc converter must be used. Not included in the product content.
Technical Specifications:
- Input voltage: AC 220 V
- Display sensitivity: 0.1 v
- Control sensitivity: 0.1 v
- Output type: output switch
- Voltage error: + 0.1 v / -0.1 v
- Scope of application: 3.7V ~ 120v all lithium battery
- weight: 110g
- Size: 86*58*24 (mm)
