5A Displayed Voltage Regulator Card with Amperage Adjustment

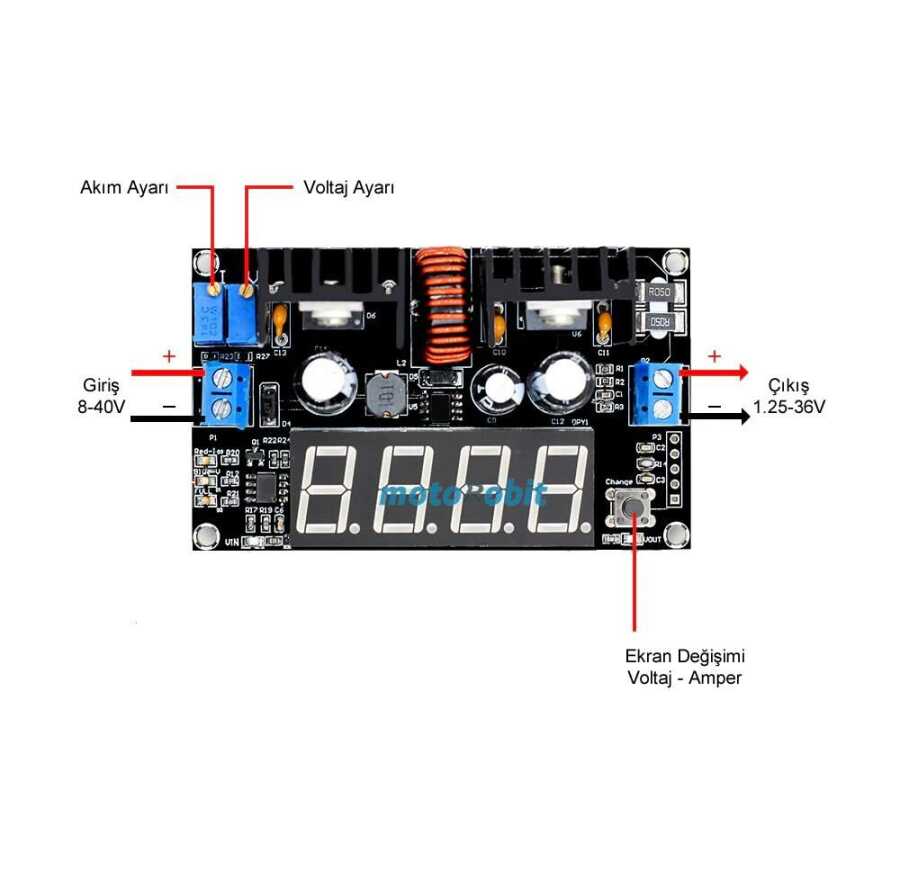

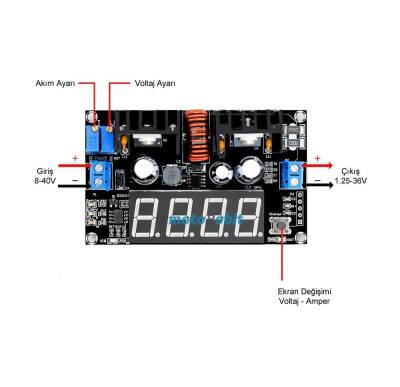

VHM-101 5A provides voltage output between 1.25-36V; It is a voltage regulator card with a display that allows both amperage and voltage adjustments. Voltage and amperage adjustments can be made by rotating the trimpots on the regulator card, which is very easy to use. The amperage or voltage value can be displayed on the screen with the button on the card.
Technical Specifications:
- Input Voltage: 8-40V
- Output Voltage: 1.25-36V
- Output Current: 5A Max.
- Output Power: 180W Max.

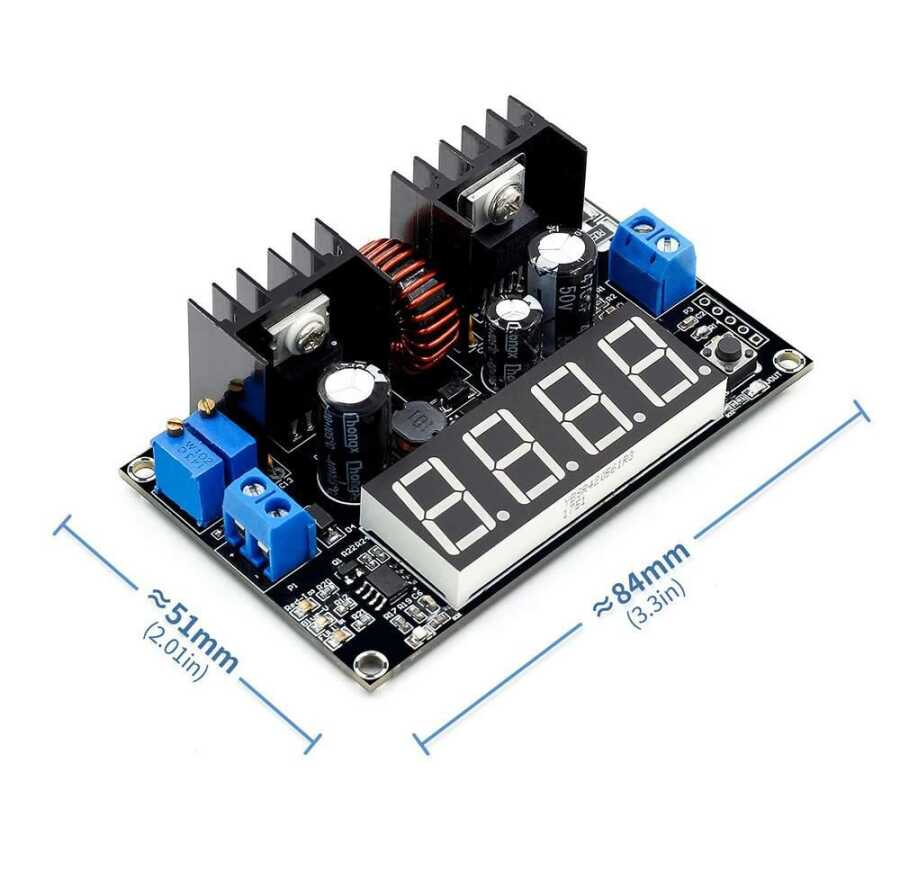

- Dimension: 85*51*29mm ;
