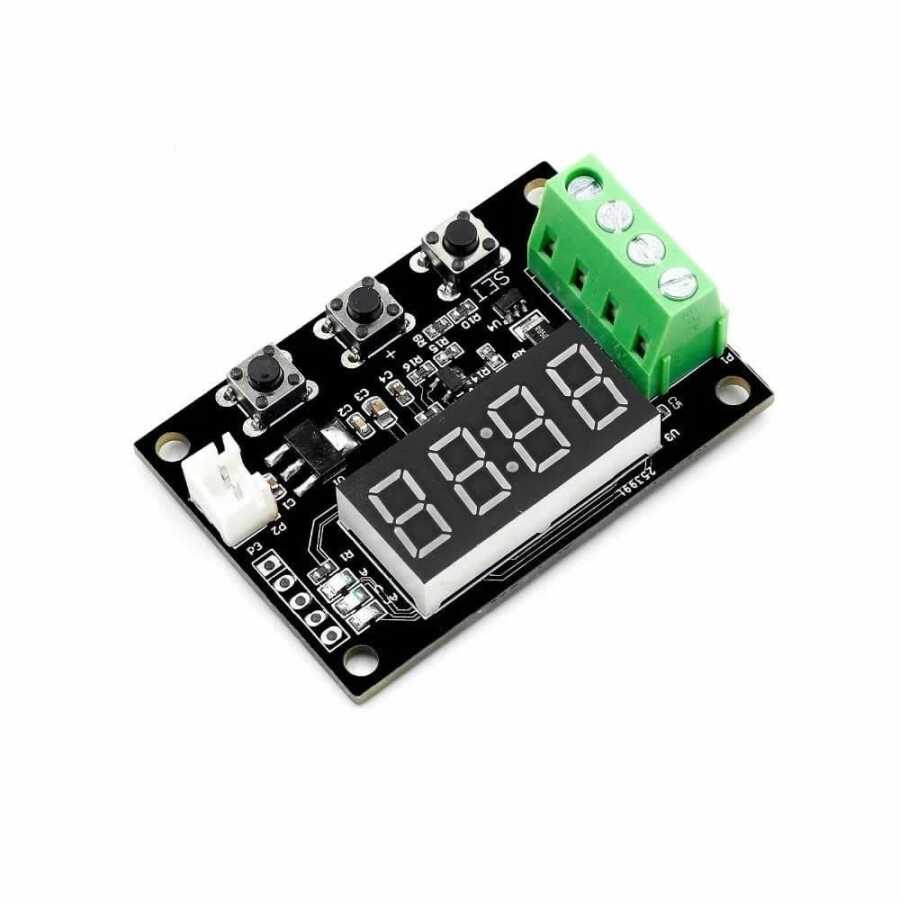

VHM-103 Battery Capacity and Discharge Control Module
VHM-103; It is a product that allows you to see the capacities of lipo, lion, 18650 batteries between 3.7v - 30v and prevents them from over-discharging. Ampere hours, voltage and current values appear on the screen on the circuit, respectively. Discharge current is maximum 3A.
Usage:

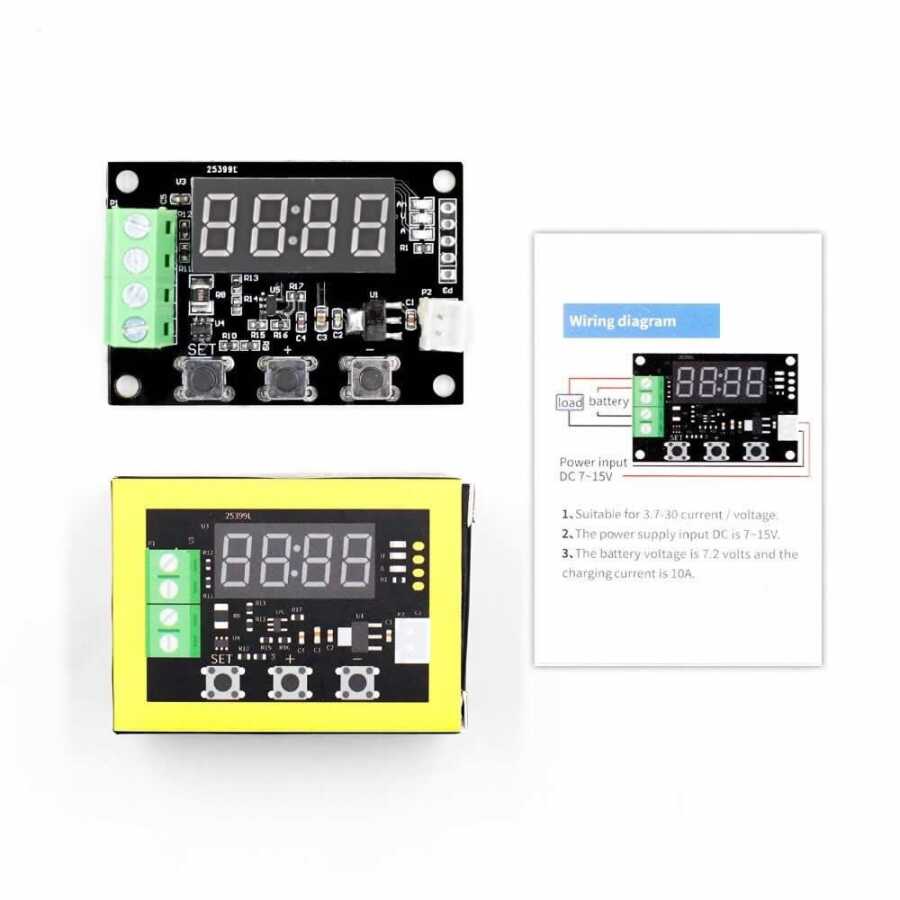

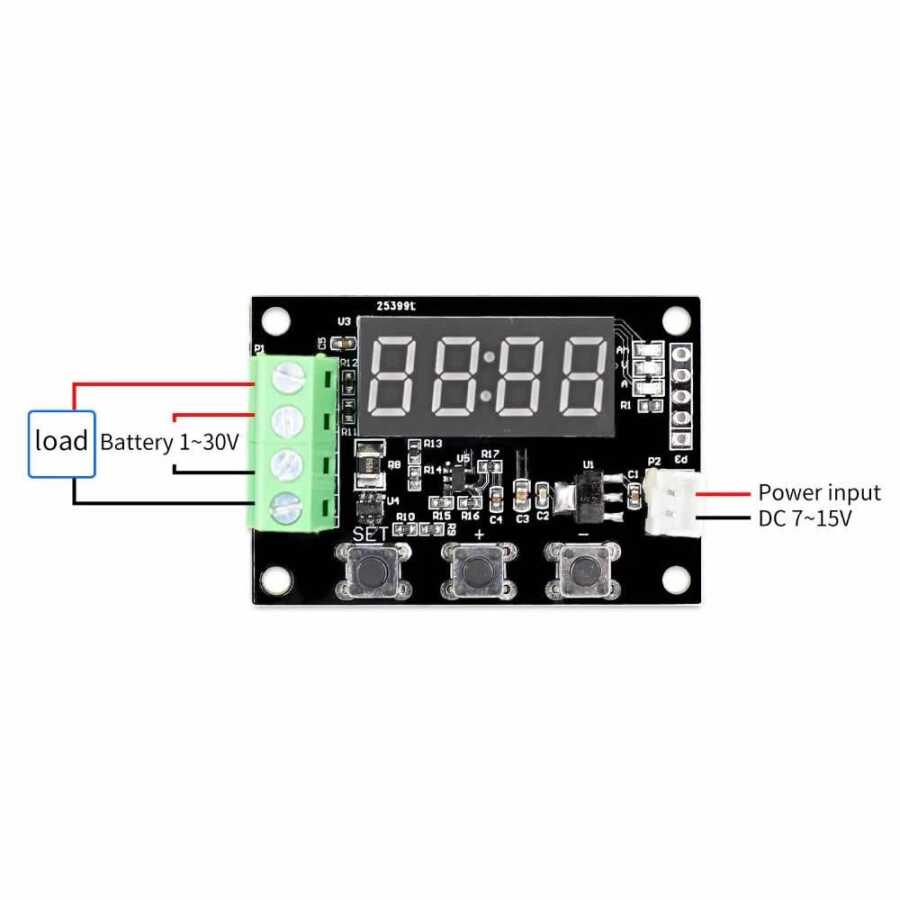

Battery is connected to BAT + and - terminals. A supply voltage between 7-15V is supplied from the JST socket to operate the circuit. Energy is output from the battery from the idle terminals. The value entered by holding down the SET button indicates the maximum volt value the battery will drop.
Technical Specifications:
- Input voltage : DC 7-15v
- Display accuracy: 0.1v 0.001A 0.001Ah
- Battery voltage: 3.7-30v

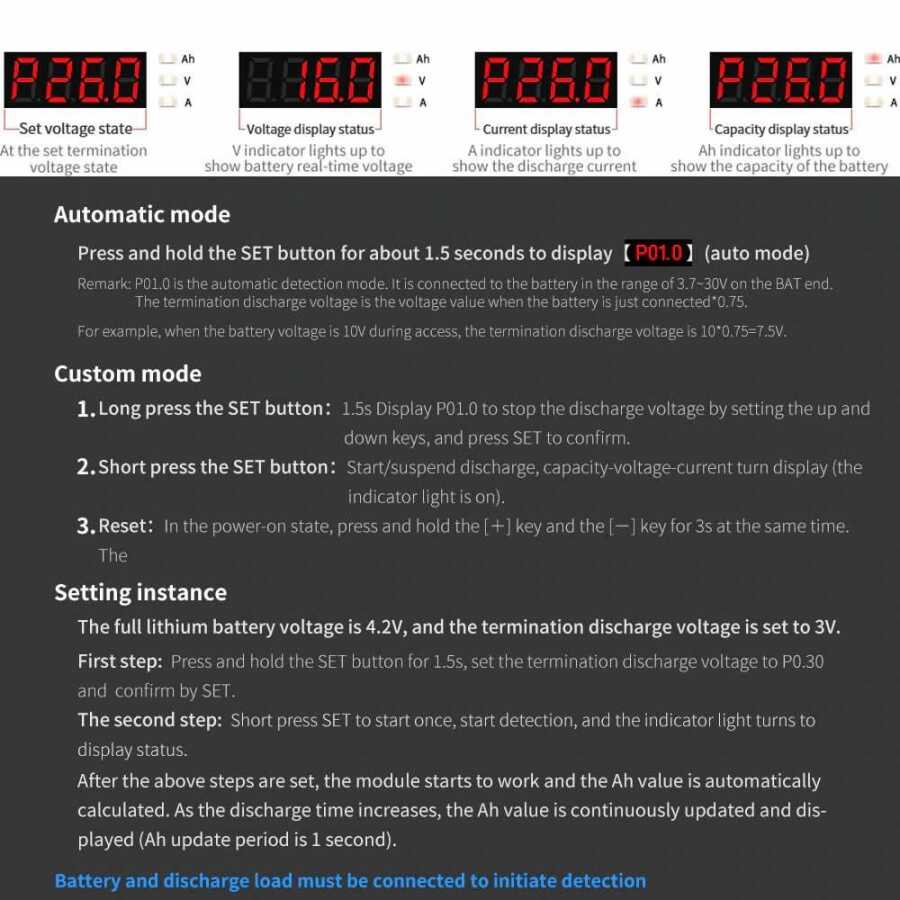

- P01.0 value: Battery voltage 0, 75 times
- Voltage error: plus or minus 0.1v
- Discharge current: 0.1-3A (recommended 1-2A)
- Scope: all kinds of battery lithium battery

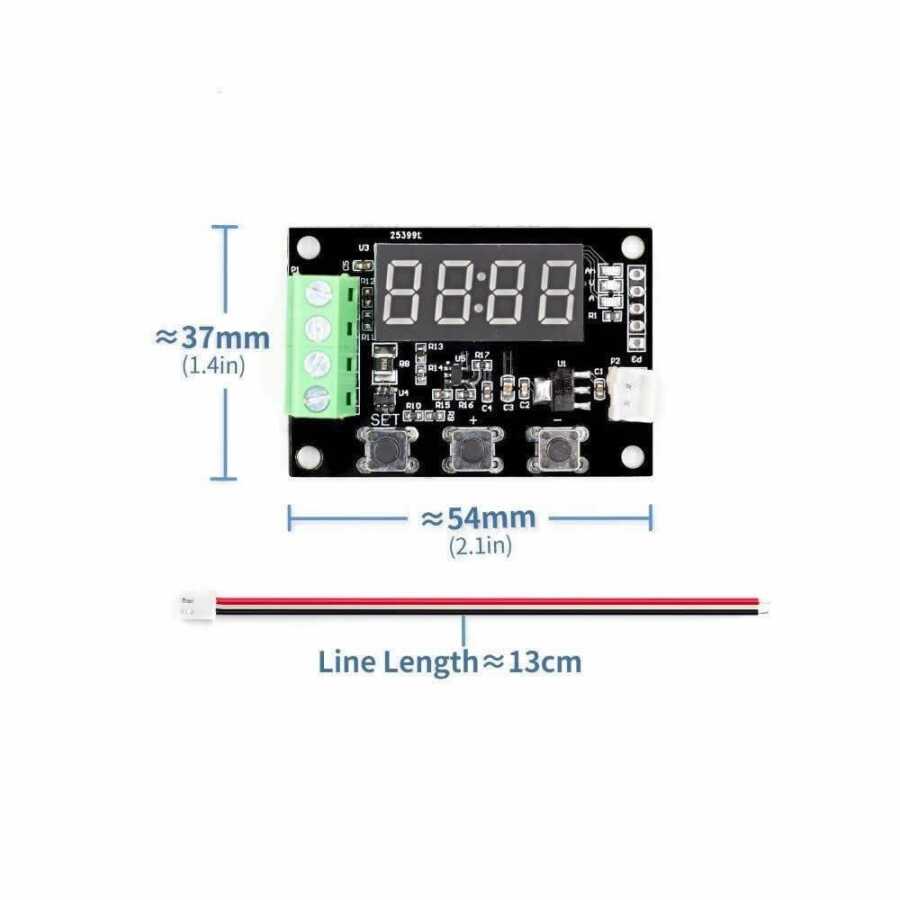

- Product Size: 54.2*37*12.5mm
