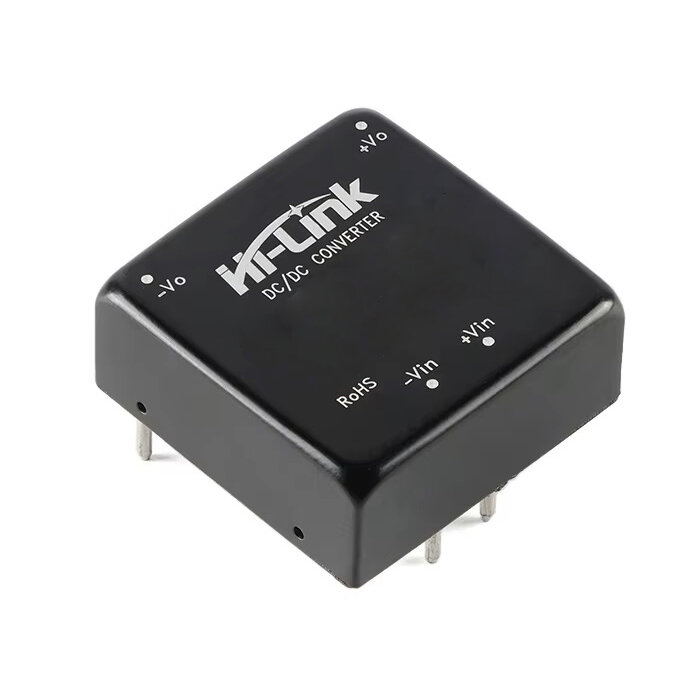

VRB2424YMD-5WR3 DC-DC 5W 18-36V Input / 24V Output Voltage Converter
Hi-Link Dc-Dc voltage converter is a voltage converter used to fix the input voltage within a certain voltage range. These types of voltage converters are used when we want to reduce, raise or stabilize the input voltage.
The input and output voltages of the product are stated in the product name and technical specifications. Please select the product by checking the input and output voltage values.
Transmission efficiency is 84%. It has short circuit protection. Wide supply voltage range (2:1).
It has a long-lasting design.
Technical Specifications
- Input Voltage: 18 - 36VDC
- Maximum Input Current: ≤0.2
- Output Voltage: 24VDC
- Recommended Output Current: 208 mA
- Output Power: 5W
- Insulation Voltage: 1500V
- Operating Temperature Range: -40° ~ +85°C
- Package Type: SIP
- Dimension: 25.4mm x 25.4mm x 11.7mm
Typical Circuit Connection
