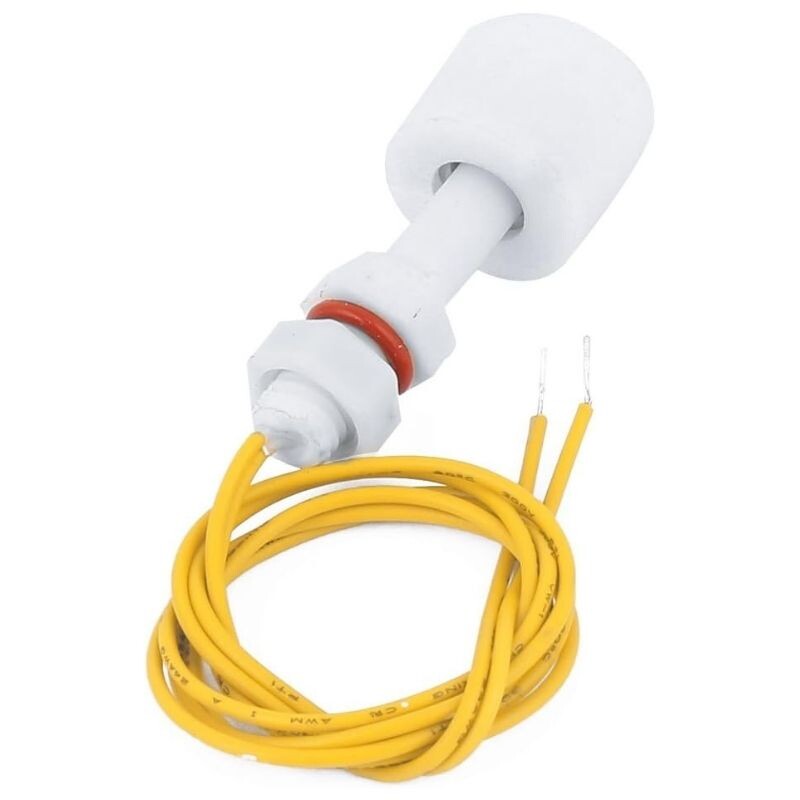

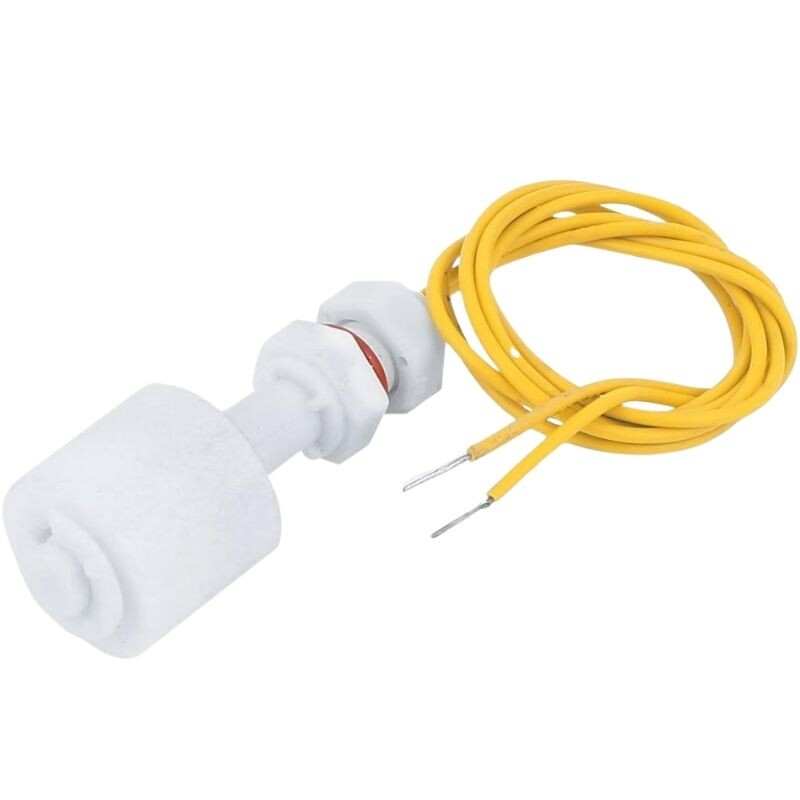

Water Level Sensor (46x18mm) - ZP3508

Water Level Sensor (46x18mm) - ZP3508

Water Level Sensor (46x18mm) - ZP3508 is used to detect the liquid level in liquid-filled tanks. It can control a pump, alarm, indicator or any other device from its output. However, if the load draws high current, you need to add a contactor or relay. Otherwise, the switch inside the product will burn.

When the float is downwards, it operates as NC. When the float moves up, it becomes NO. It has a cable length of 35cm.

Features

• Model: ZP3508
• Contact: NO + NC
• Maximum switching voltage: DC 100V DC  /  AC 220V
• Maximum switching current: 0.5A
• Maximum contact resistance: 100 mΩ
• Temperature range:  -10C /  +85C
• Material: Plastic
