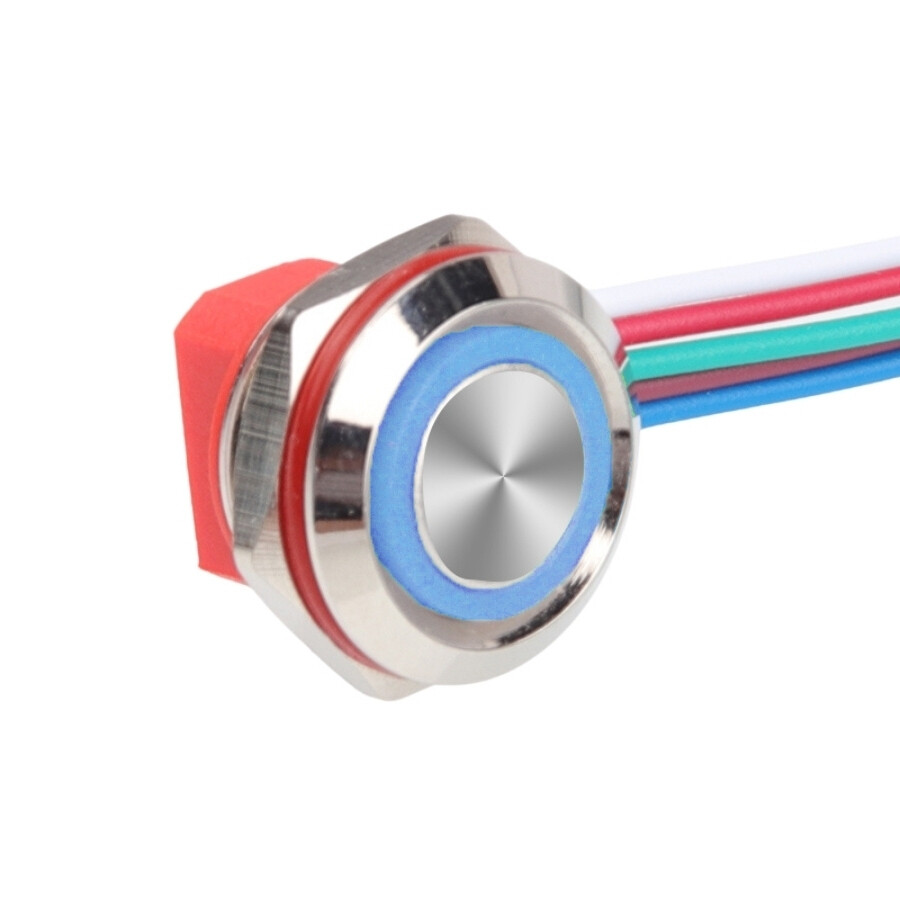

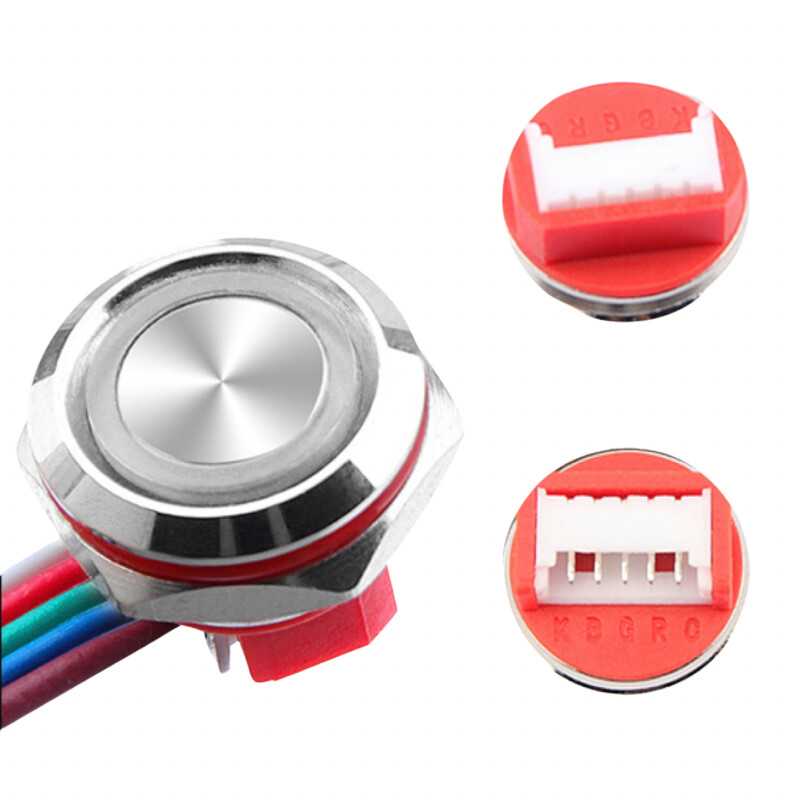

WD12C1-Wired-P1-E 12mm Flat Spring Blue Illuminated Metal Button - Wired
12mm metal button is a product with IP67 water resistance that you can use in various industrial applications, electronic projects, mass production projects. It is made of stainless steel. The product is sent with a sealing gasket.
Because it is stainless steel and has IP 67 protection, metal buttons are suitable for outdoor and indoor use. They are preferred in places where long-lasting use is desired due to these features. In addition, they have a much longer service life than plastic button types in terms of button press structure. It has a life of 100,000 presses.
Technical Specifications:
- Operating Method: Spring

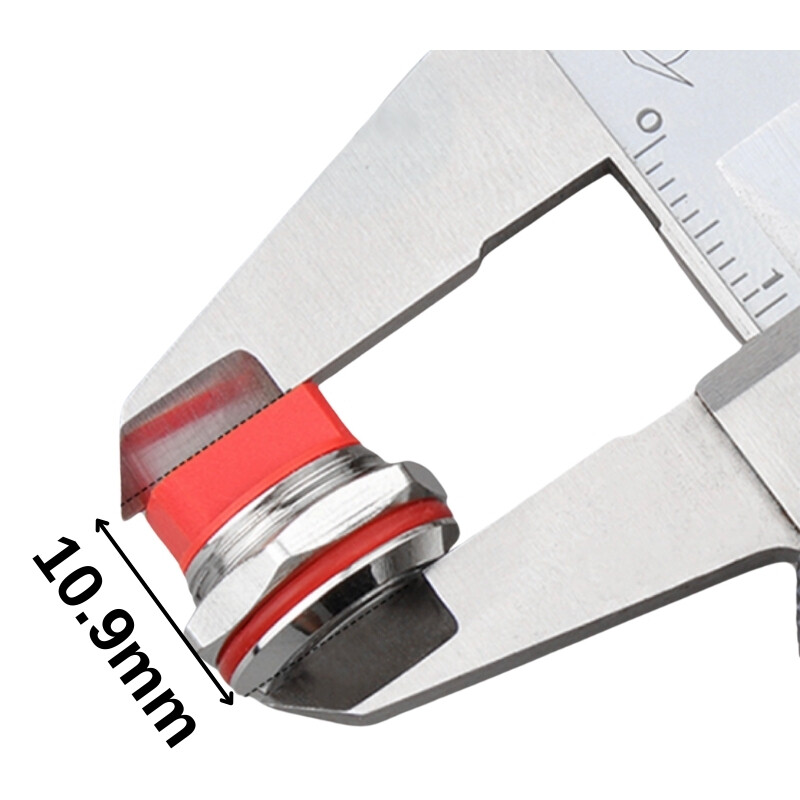

- Mounting Diameter: 12mm
- Material: Stainless Steel
- Protection Level: IP67
- Voltage: 3-36V
- Current: 50mA
- Switch Contacts: 1NO
- Electrical Working Life: >50,000
- Pressing Life: 100,000
- Wiring: 26AWG
- Cable Length: 15cm
- Operating Temperature: -30 °C ~ 85 °C
For more detailed information, you can access the detailed technical documentation of the product by clicking the link below.
Special symbols and logos are produced for you. For special productions, you can send an e-mail to info@motorobit.com.
