WD22T-P1-EC 22mm Touch Metal Button - Dual Color

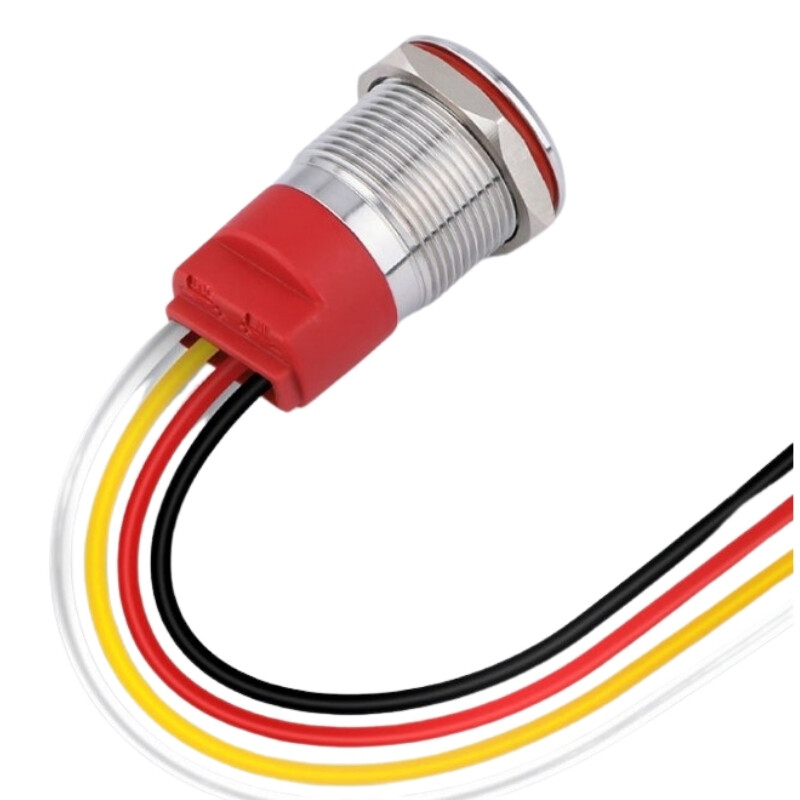

22mm metal button is a product with IP68 waterproofness that you can use in various industrial applications, electronic projects, mass production projects. It is made of stainless steel. The product is sent with a sealing gasket.
Because it is stainless steel and has IP 68 protection, metal buttons are suitable for outdoor and indoor use. It is preferred in places where long-lasting use is desired due to these features. In addition, they have a much longer service life than plastic button types in terms of button press structure. It has a press life of 100000.

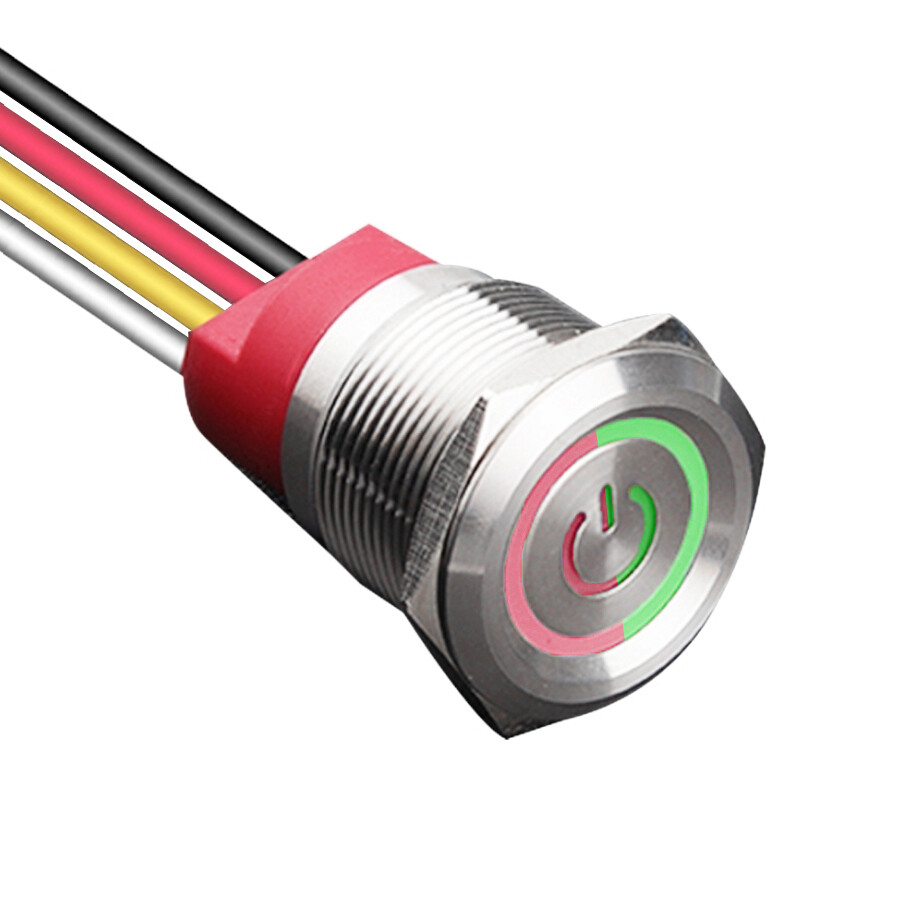

The button has a dual color. It is red in the closed position and green in the open position.
Technical Specifications:
- Operating Mode: Keyed
- Mounting Diameter: 22mm
- Material: Stainless Steel
- Protection Level: IP68
- Voltage: 12-24V
- Current: 15-35mA
- Switch Contacts: 1NO
- Electrical Service Life: >40000
- Wiring: 22AWG
- Cable Length: 15cm
- Operating Temperature: -25 °C ~ 55 °C
For more detailed information, you can access the detailed technical documentation of the product by clicking the link below.
Special symbols and logos are produced for you. For special productions, you can send an e-mail to info@motorobit.com.
