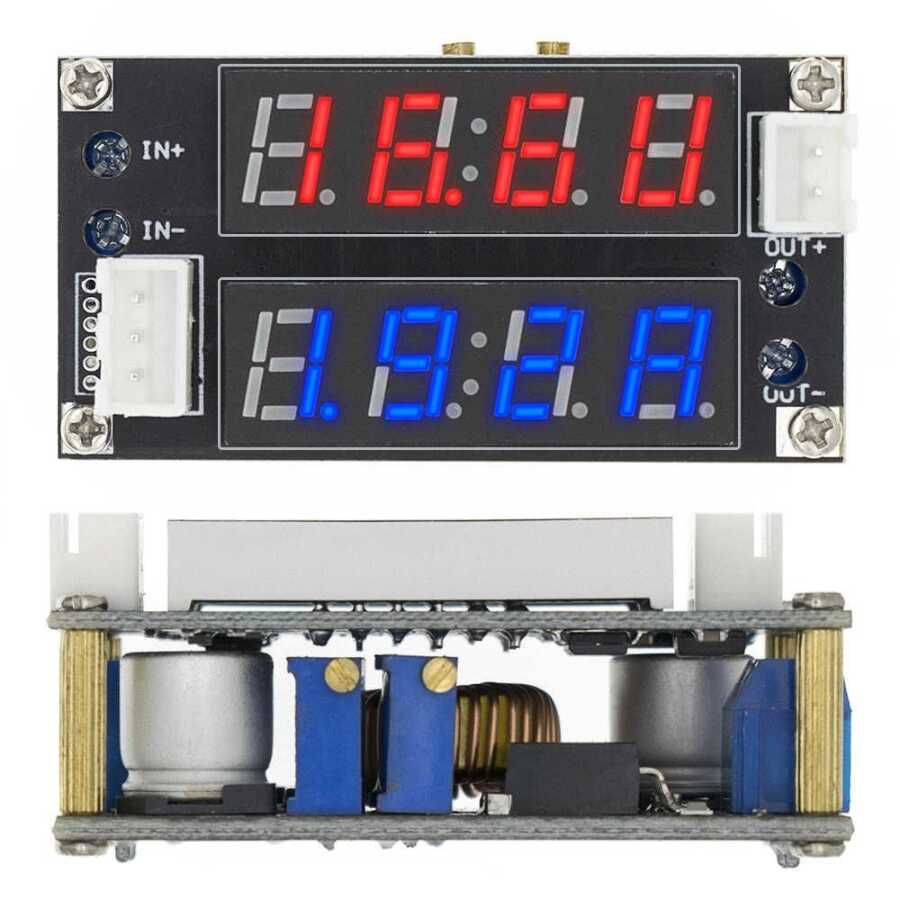

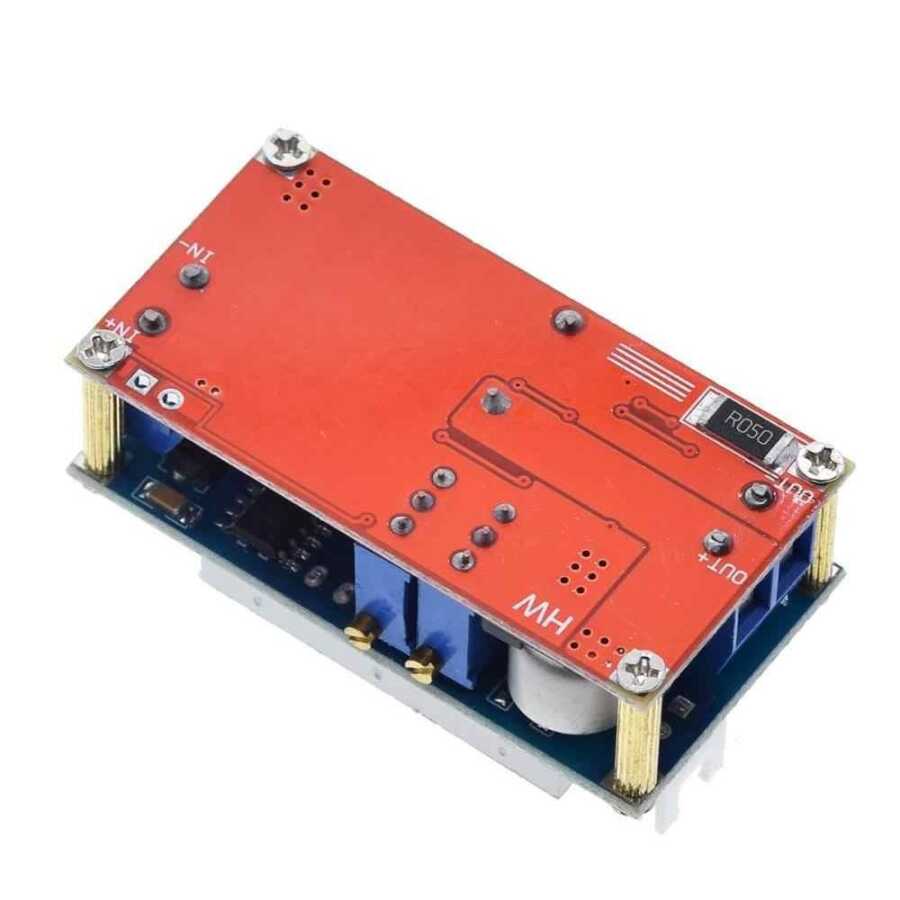

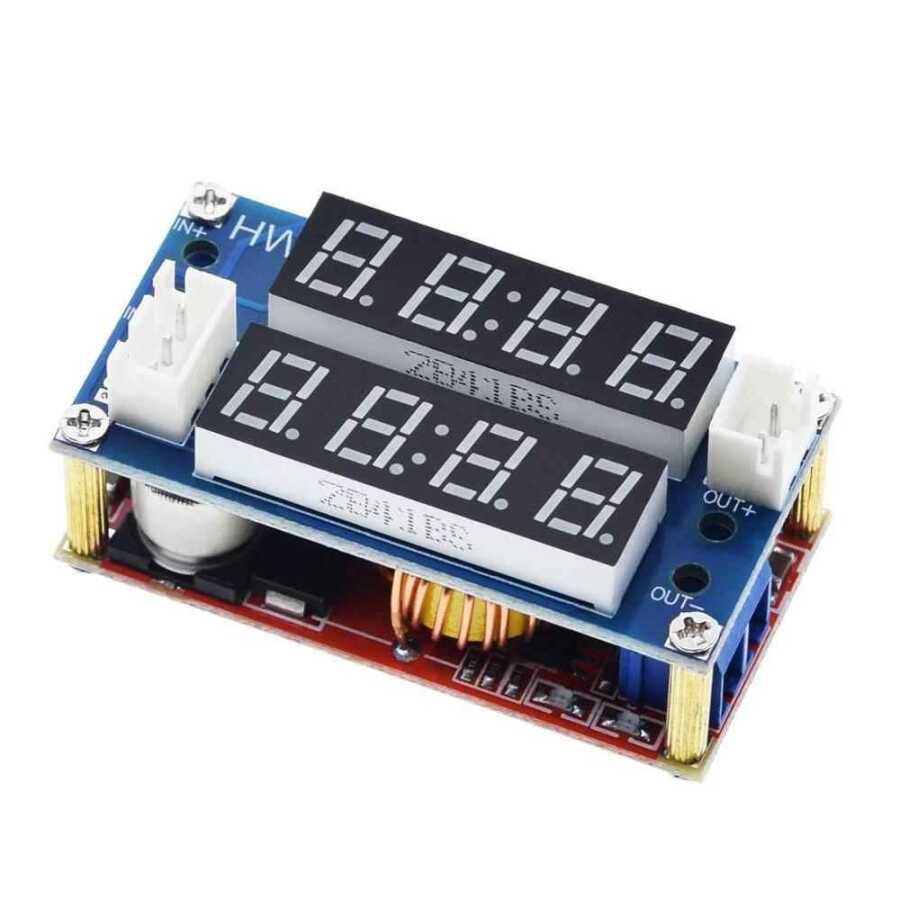

XL4015 5A Amperage Adjustable Voltage Step Down Regulator Card
Voltage step down regulator board with XL4015 integrated. The output voltage and amperage can be adjusted thanks to the trimpots on it. It can also optionally be controlled with Arduino via the rx tx pins on it.
XL4015 Technical Specifications:
- Input voltage : 5V-32V
- Output voltage: 1.27V-30V
- Output current: adjustable maximum 5A
- Conversion efficiency: 95% (peak)
- Switching frequency: 300KHz
- Output ripple: 50mV (max.) 20M bandwidth
- Operating Temperature: -40° to +85°

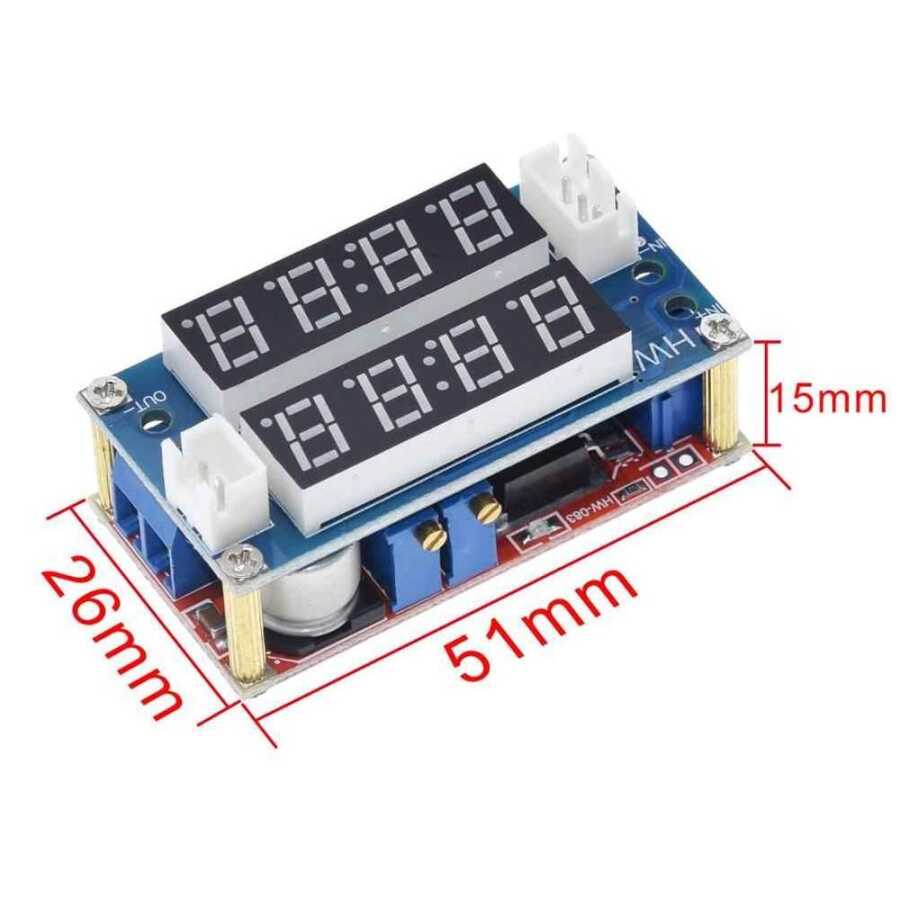

- Size: 51 * 26.3 * 14 (L * W * H) (mm)
