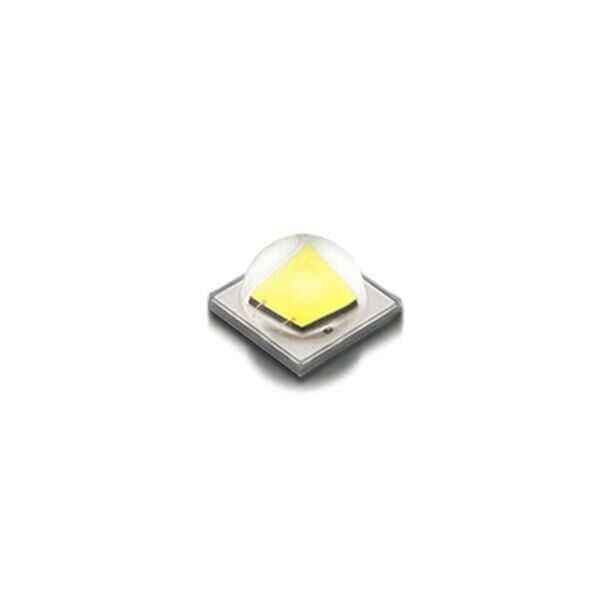

XM-L2 6W White SMD LED



XM-L2 LED is a high performance, single die LED. Since it gets very hot due to its high wattage, this product must be used with the help of a cooler.



• Dimension: 5 x 5 mm
• Maximum Current: 2 A
• Maximum Power (W): 6 W
• Maximum Light Output (lm): 1052 lm
• Maximum Efficiency at Piggyback Conditions (lm/W) 175 lm/W
• Typical Forward Voltage 2.77 V @ 700 mA
• Maximum Reverse Voltage -5 V
• Viewing Angle 125
• Maximum Connection Temperature 150 °C
