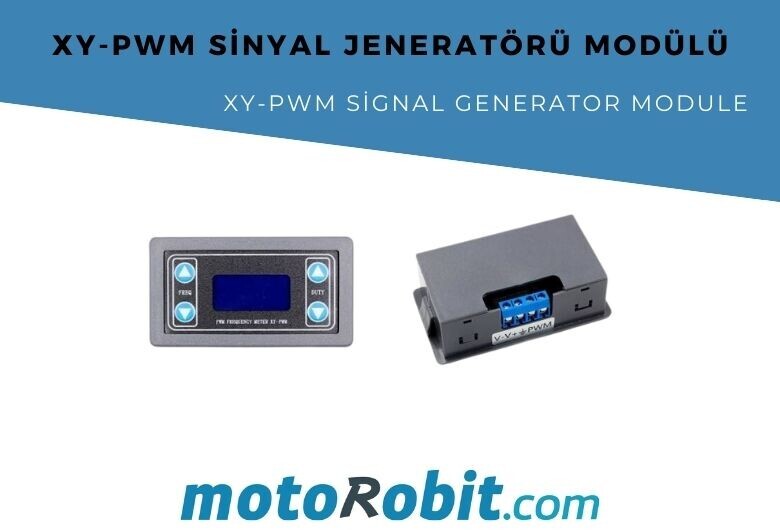

XY-PWM Signal Generator Module

XY-PWM Modü Technical Specifications of the Measurement

Main Components of XY-PWM Module

• LCD Display: Frequency and duty cycle. shows the values.
• Rotary Knob (Potentiometer): Used to adjust the frequency and duty cycle.
• PWM Output: Used to transmit the adjustable signal to the devices.
• Power Input: 3.3V to 30V A DC power source is connected between.

XY-PWM Signal Generator How to Use?

Step 1: Connect Power Supply

• Power the module with a DC 3.3V-30V power supply.
• After the module is powered on, the default frequency and duty cycle information will be displayed.

Step 2: Mode Selection

• Module You can operate it in Normal or Sensitive mode:
  • Normal Mode: Frequency range 1 Hz - 150 kHz.
  • Precision Mode: More precise adjustments from 1 Hz to 15 kHz.
  • Transition: 10 seconds to rotary knob You can switch between modes by pressing for 15 seconds.

Step 3: Frequency Adjustment

• Turn the rotary knob to change the frequency.
• You can see the frequency changes on the LCD screen. you can observe:
  • For example, "1.91" represents a frequency of 1.91 kHz.
  • "1.3.4" represents a frequency of 134 kHz.

Step 4: Task Cycle Setting

• Rotates Press and hold the button for 2 seconds to enter duty cycle mode.
• Duty cycle Turn the potentiometer to adjust between 0% and 100%.

Step 5: Locking the Settings

• After setting the desired frequency and duty cycle, press and hold the rotary knob for 5 seconds to lock the parameters.

XY-PWM Module Applications That Can Be Done with

1. Motor Control:
   You can precisely adjust the speed of DC motors with PWM signals.

2. Lighting Control:
   You can use PWM signals to regulate the brightness of LED lights.

3. Electronic Circuit Test:
   You can test the response of different electronic circuits using PWM signals.

4. Speed ​​Control:Suitable for controlling the speed of fans or pumps.

XY-PWM Advantages of the Module

• User-Friendly Design: It is very easy to make settings and the LCD screen shows all values ​​clearly. ;shows.
• Wide Voltage Support: Since it can work between 3.3V - 30V, it is compatible with many different devices and systems.
• Precision: Precision mode provides excellent accuracy in applications requiring low frequencies.

Results

The XY-PWM signal generator is an ideal tool for both professional and hobby projects thanks to its compact dimensions and versatile features. This module, which you can use in a wide range of applications from motor control to lighting systems, offers excellent performance, especially in applications requiring PWM signals. If you are looking for ease and precision in your project, the XY-PWM module is a great choice.
