YA-20-J05PE-01-001 5-Pin Waterproof Connector - Female

Ratings & Reviews (0)
Comment
Brand: CNLINKO
Product Code: KOM.KNN.05.000271
Stokta 10+ ürün
353.41 TL + VAT
VAT Included: 424.09 TL

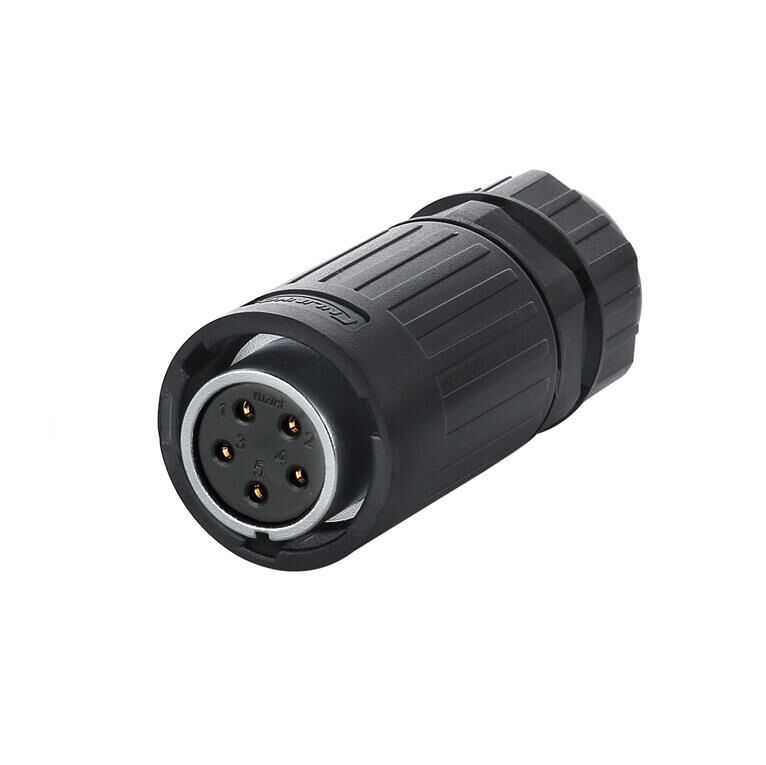

YA-20-J05PE-01-001 5-Pin Waterproof Connector - Female


YA series features a unique locking design, providing a tight interlock between the plug and socket provides. The automatic closing waterproof cover of the socket, made of alloy material, increases the comfort of use. Meets international environmental protection requirements of industrial equipment. Quick plug design allows one-handed plug/remove. The socket and adapter plug use spring snap lock for connection, convenient and reliable, shockproof. PBT material shell, stable electrical performance, pressure resistant, high temperature resistance, anti-corrosion.


Technical Specifications

  • IP67 rating when connected
  • Cable specifications: 16-18 AWG
  • Diameter range: Φ7mm~Φ9mm
  • Contact diameter × number: Φ1.8×5
  • Rated Current (A): 12A
  • Operating voltage (AC.V.rms): 400V
  • Contact resistance : <2.5mΩ
  • Withstand Voltage (AC.V) 1 minute: 2500V
  • Protection level: IP67
  • Operating temperature: -40℃~80℃
  •

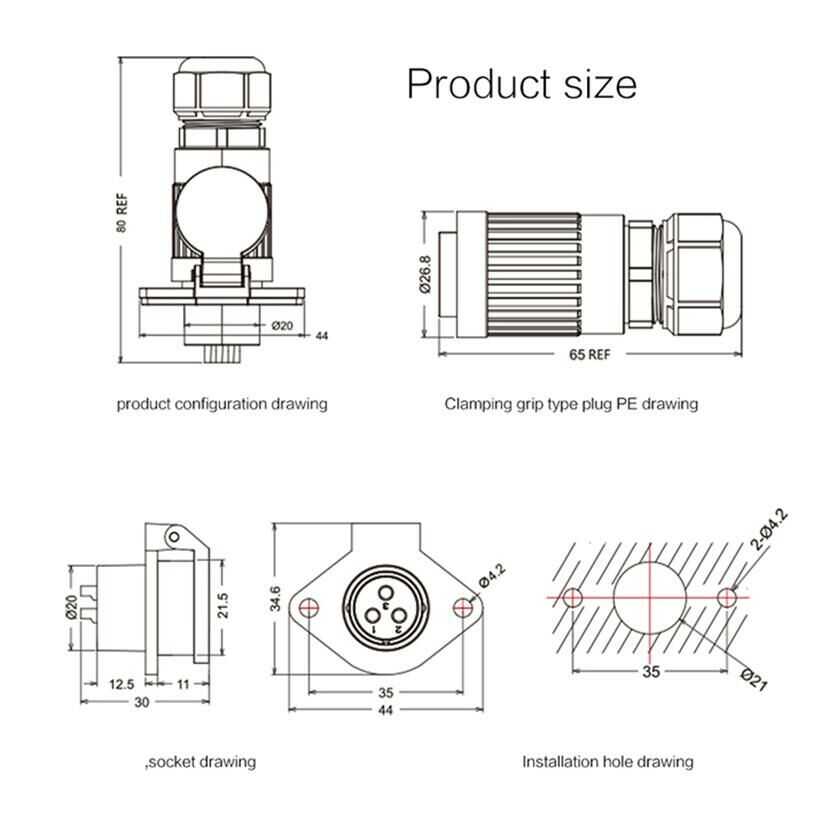

    YA-20 Series Waterproof Connector

    YA-20 Series Waterproof Connector

    YA-20 Series Waterproof Connector


      Weight(Kg)
      0.1
      Features
      Connector Pin
      5-Pin
