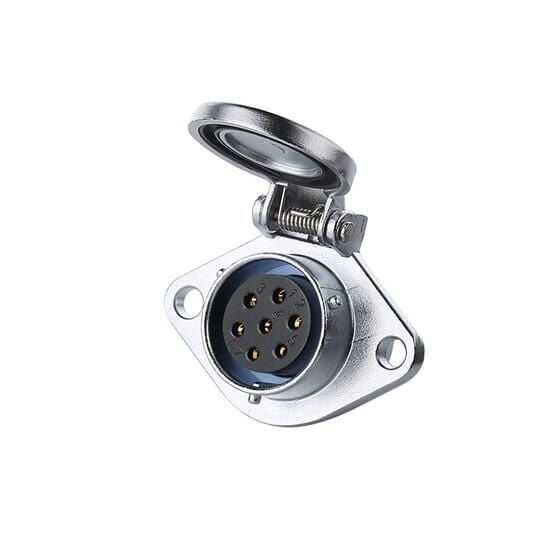

YA-20-J07SX-03-201 7-Pin Waterproof Connector - Female



YA series features a unique locking design, providing a tight interlock between the plug and socket provides. The automatic closing waterproof cover of the socket, made of alloy material, increases the comfort of use. Meets international environmental protection requirements of industrial equipment. Quick plug design allows one-handed plug/remove. The socket and adapter plug use spring snap lock for connection, convenient and reliable, shockproof. PBT material shell, stable electrical performance, pressure resistant, high temperature resistance, anti-corrosion.

YA-20-C07PE-01-001 7-Pin Waterproof Connector - Male.



Technical Specifications
