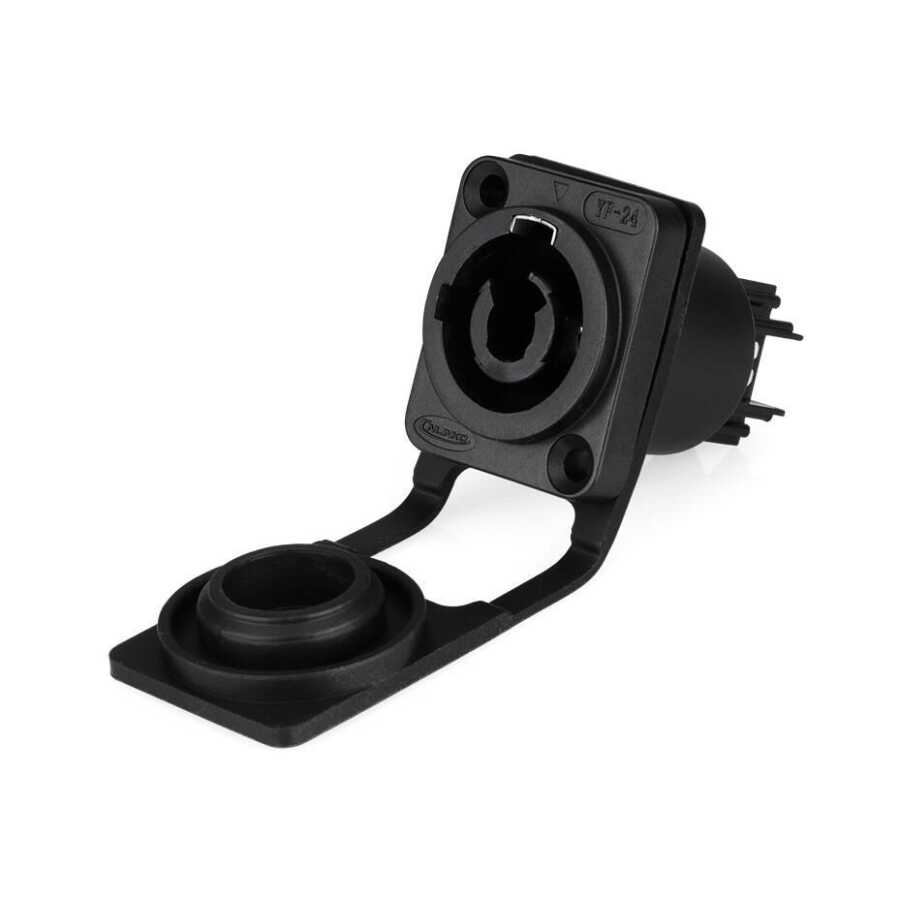

YF-24-J03SX-02-002 3-Pin IP67 Powercon Connector - Inlet
powerCON has contacts for line, neutral and pre-mating ground contact is a locking 3-conductor equipment AC connector. It replaces device couplers wherever a very robust solution is required together with a locking device to guarantee a safe power connection.
YF-24 Power connector, easy to operate and unique detachable power Due to the unique locking bolt that allows us to distinguish between the input and power input and the input and output of the device, it is also equipped with a power converter to convert between terminals and provides greater flexibility. It can be widely used in audio, video and power equipment.
Technical Specifications
- 3 contacts for line, neutral and feed safety ground
-
Quick and easy twist lock locking system
-
Extremely sturdy and reliable
-
Ergonomic design
-
User-friendly latch design for easy use
-
Protection Level: IP67
-
Cable Specifications: 2.5mm2 ~ 4mm2 /14~12AWG
-
Diameter Range: 8mm ~12mm
-
Rated Current: 20A
-
Operating Voltage: 500V
-
Withstand Voltage (AC.V)1min: 2500V
-
Contact Resistance: < 3mOhm
-
Insulation Resistance: > 500MOhm
-
Number of Pins: 3
-
Operating temperature:-40℃～80℃
