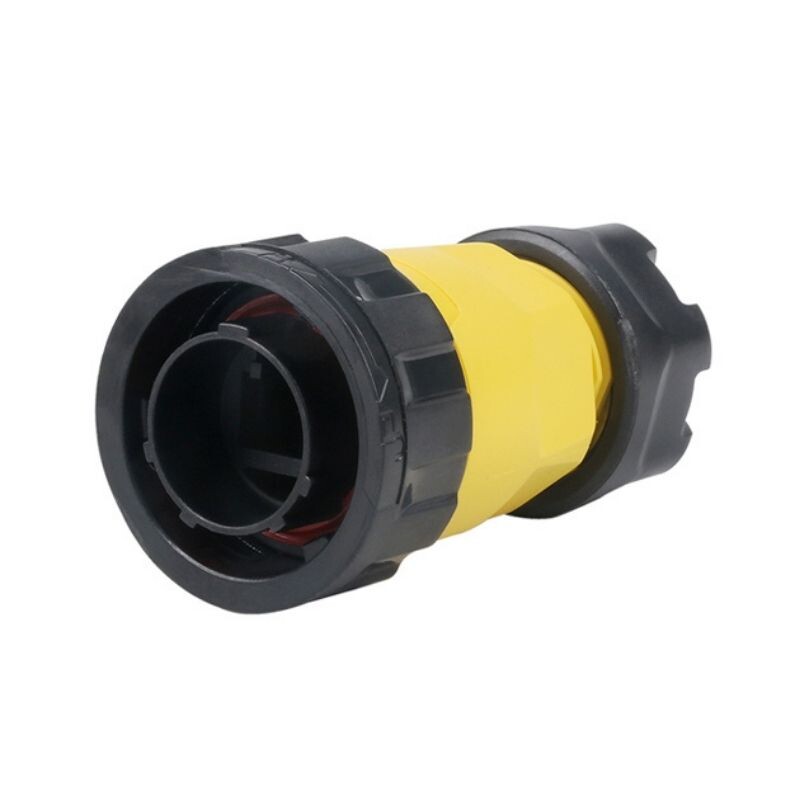

YM-20-C/RJ45/015/PE-42-001 Waterproof Ethernet Connector - Male
High-performance RJ45 connector with quick-lock for secure signal and data transmission. IP67 connector in plastic housing in size 20 YM series. The RJ45 connector is waterproof and dustproof according to IP67 protection class. The lock provides a secure connection and protects against data and power interruptions. The maximum rated power for the data connector is 0.5 amps. The plug has a quick-connect connection. The quick-connect design allows for one-handed insertion and removal.
CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
-
High temperature and pressure resistance
-
IP65/67/68 rating when connected
-
Cable Connection - 26 AWG
-
Ingress Protection - IP65/67
-
Durability (Min): 500 uses
-
Cable Size: 26 AWG
-
Diameter Range: 6.5-8.5mm
-
Rated Current: 1.5A
-
Contact Resistance: <30mOhm
-
Withstand Voltage: 1000V
-
Working Temperature - -40 C - 80 C
-
Body Material - High Performance Plastic

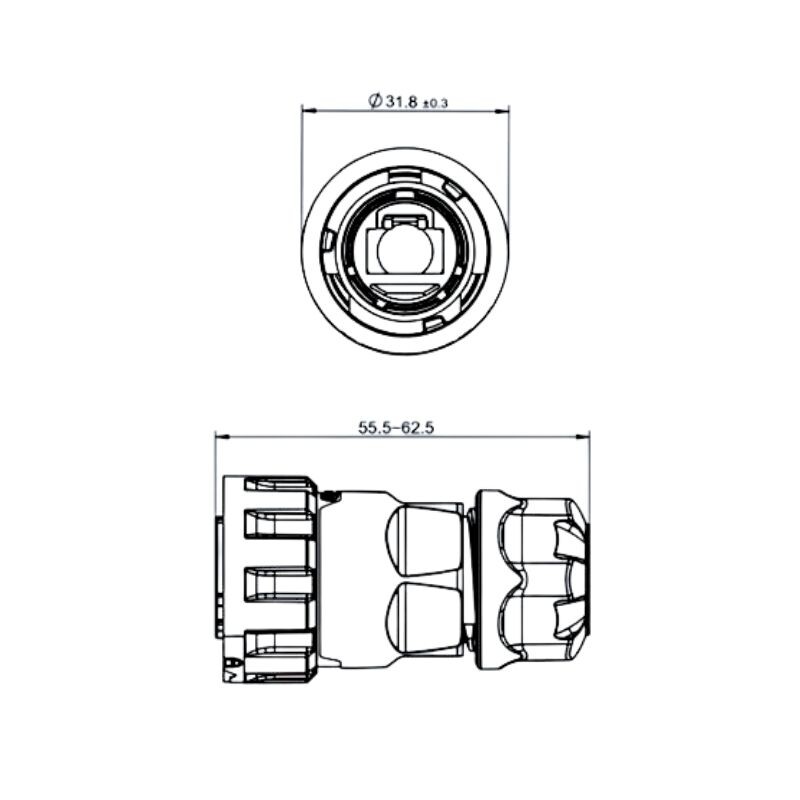

YM20 Water Waterproof Connector Datasheet
