YQ-F4R2G 2 Axis Switch Joystick

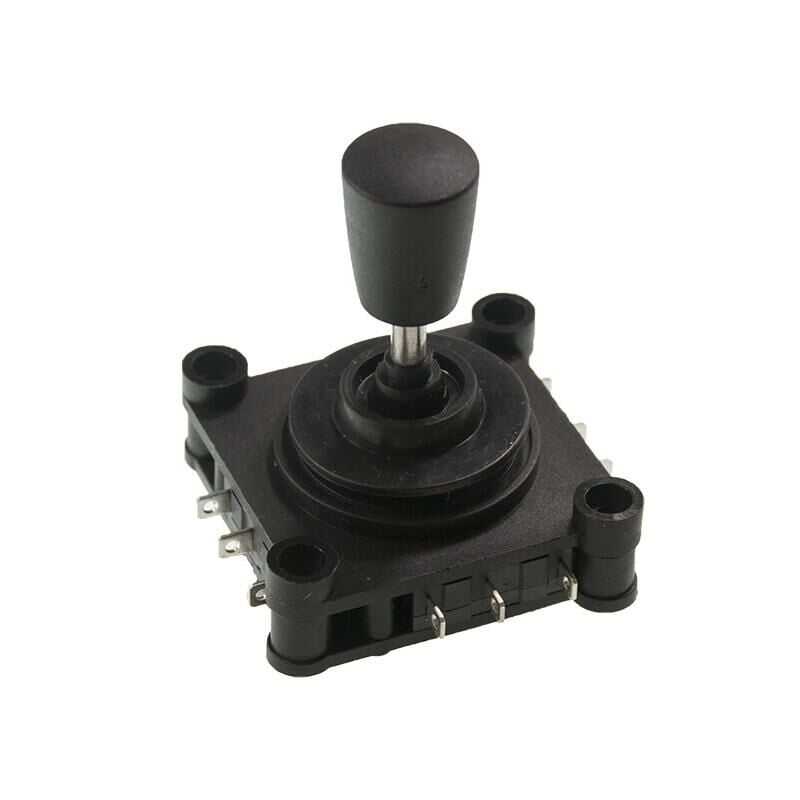

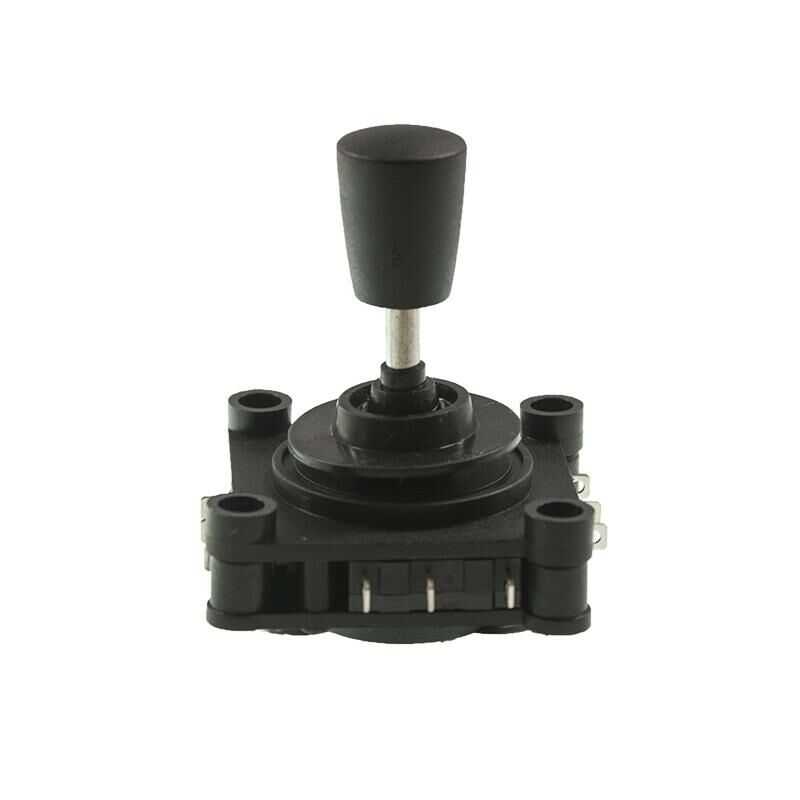

CV4-YQ-F4R2G is a joystick module with 4 micro limit switches on it. Each switch has 3 legs: NO, NC and COM. Multiple switches, buttons, etc. It is suitable for use in projects where you need to use it and in opening and closing operations. The product should be withdrawn. In other words, as long as you push the arm, the switch inside is affected, and as soon as you release it, the arm returns to the center.



The moment the arm is released, it returns to the center.

Operating Temperature: -20°C -65°C

Protection Class: IP65 dust and non-pressurized water protection.

Operating Life: 200.000

Micro Switch Contact Capacity: 250VAC/5A

Button Switch Contact Capacity (If Pushbutton Model): 50VDC/0.1A

Sleeve Length: 20mm

Sleeve Width: 15mm



Micro Switch Connection Diagram

Technical Drawing
