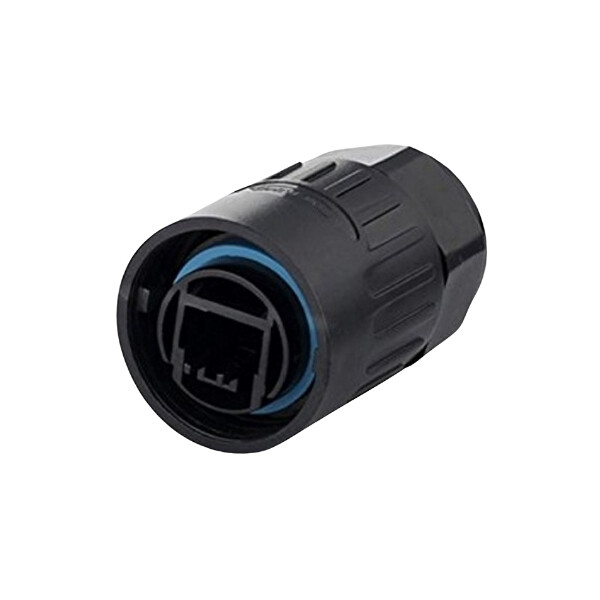

YT-RJ45-CPE-01-001 Waterproof Ethernet Connector - Male
YT-RJ45 series is an RJ45 plug used in signal applications. Suitable for 26-24 AWG cable. Rated for 1000V and 1.5A. It has a 1/4 bayonet connection and is used for industrial Ethernet in audio equipment, stage equipment, DMX lighting and other network applications.
CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
- High temperature and pressure resistance
- IP65 class when connected
- RJ-45 Male
- Pin Count: 8
- Cable Diameter - 26-24AWG
- Rated Current - 1.5 Ampere
- Operating Voltage - 250V AC
- Contact Resistance - <30mOhm
- Withstand Voltage - 1000V
- Ingress Protection - IP65/67
- Operating Temperature - -40 C - 80 C
- Body Material - High Performance Plastic
- Flammability Rating - UL94-V0
YT-RJ45 Waterproof Connector Datasheet
