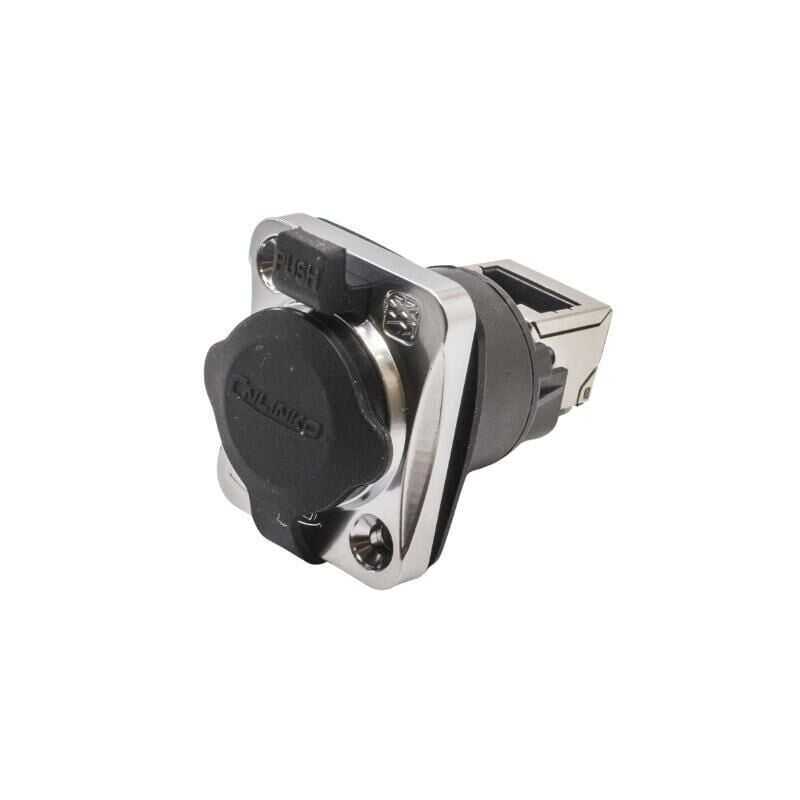

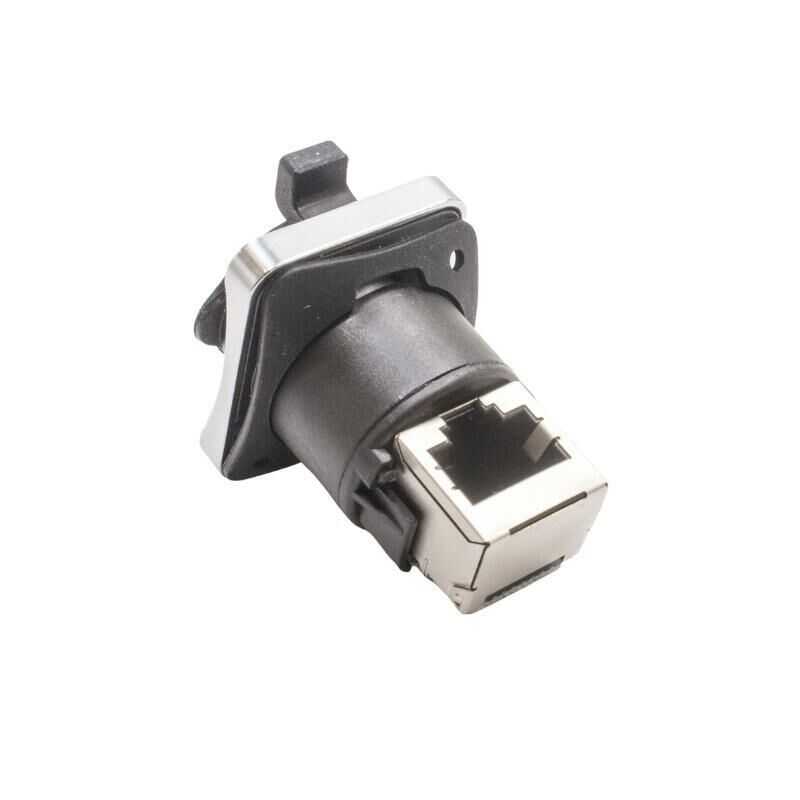

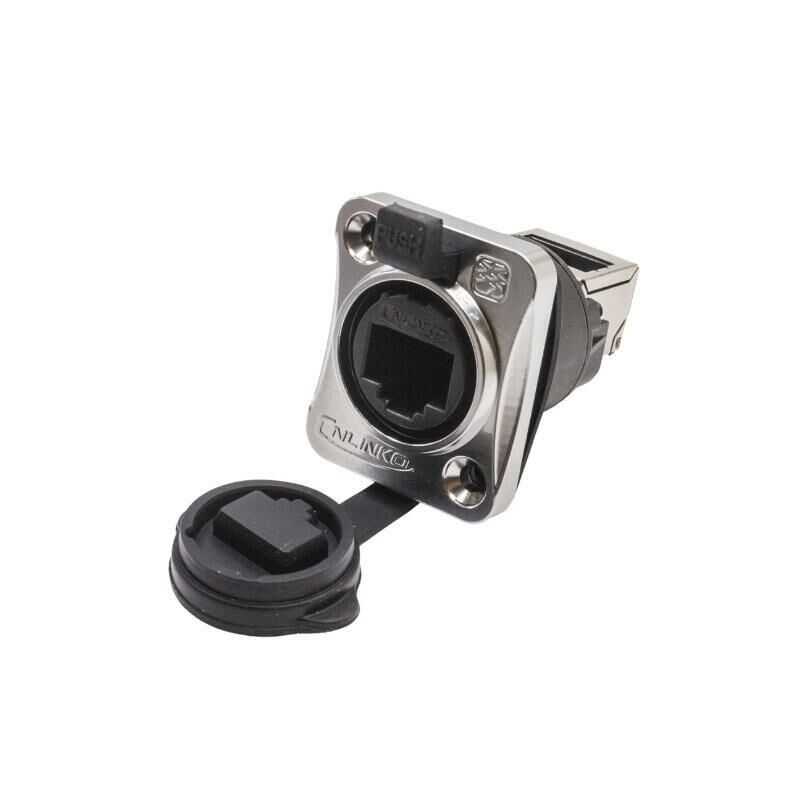

YT-RJ45-JSX-22-002 RJ45 Female Socket Plug-in Connector
Cnlinko YT-RJ45 -JSX-22-002 is a female RJ45 socket for dual Ethernet port signaling applications. Suitable for use with 26-24 AWG cable. Rated for 1000V and 1.5A. It has a snap fastener with a push button release. The internal Ethernet port faces up. Used for industrial Ethernet in audio equipment, stage equipment, DMX lighting and other network applications.
Specifications
Dimensions (without cover)- 33 .7 mm H x 28 mm W 26-24 AWG
Diameter Range - 5.5-7mm
Rated Current - 1.5A
Operating Voltage - 1000V
Contact Resistance - <30mOhm
Insulation Resistance- > 500MOhm
Ingress Protection - IP65/67
Durability-> 500 times
Operating Temperature - - 40 C - 80 C
Body Material - Zinc Alloy
Flammability Rating - UL94-V0
