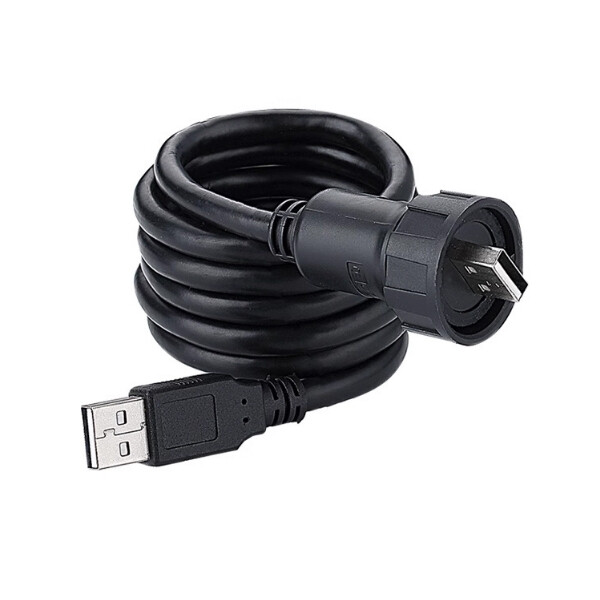

YU-USB2-MP-MP-1M-001 Waterproof Male-Male USB Connector - 1M Cable

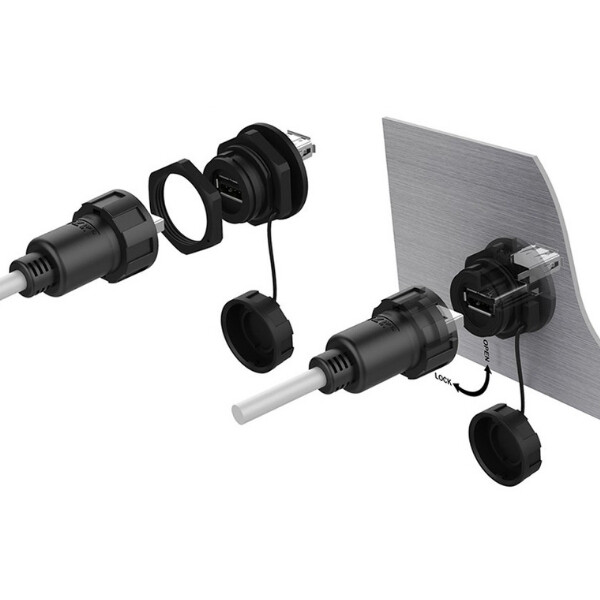

YU Series USB IP67 Waterproof Data Connectors The shell protection device design of USB industrial protection, using the internal external work, while supporting USB2.0, has good insulation properties, plug and play, fast swappable, no need to open the chassis directly, use the electrical junction box connection more convenient and reliable, fully meet the junction box demand. These connectors meet the different needs of the industry and meet the International environmental protection of industrial equipment.
CNLINKO products can be produced with cables according to your request. Special production is available for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
- USB 2.0
- IP67 class when connected
- Rated Current - 1.5 Ampere
- Contact Resistance - <30mOhm
- Withstand Voltage - 1000V
- Ingress Protection - IP65/67
- Operating Temperature - -40 C - 80 C
- Flammability Rating - UL94-V0

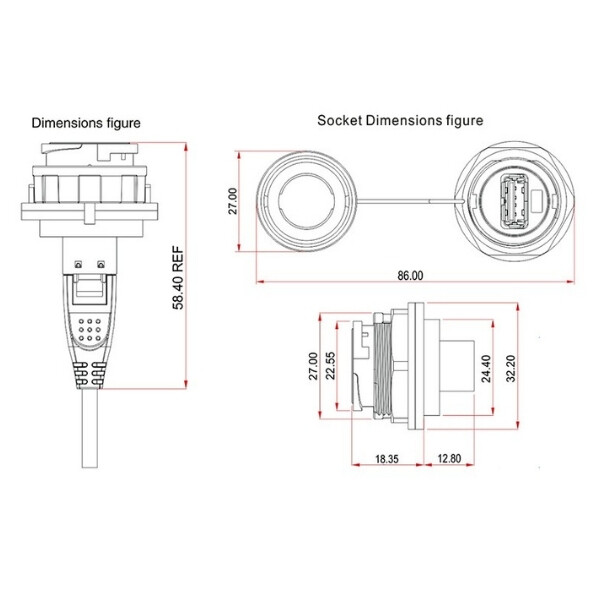

YU-USB Waterproof Connector Datasheet
