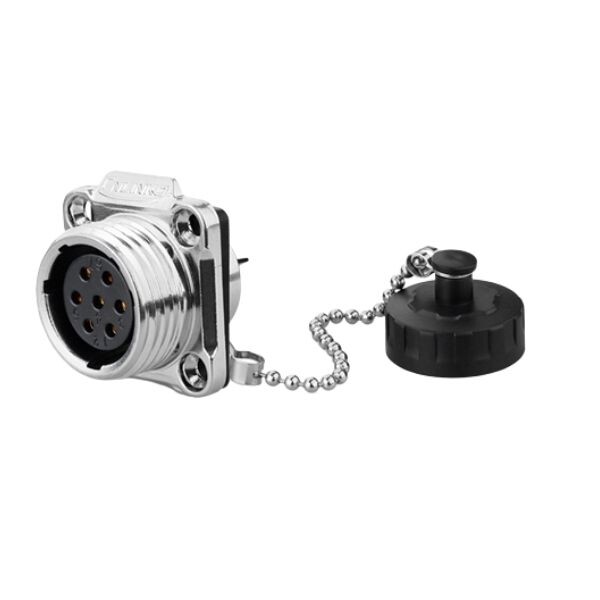

YW-20-J07SX-03-401 7-Pin Waterproof Connector - Female

The outer casing of YW series connectors is made of zinc alloy material, can effectively shield the electronic signal, together with the screw locking design, make it the most reliable to choose. Compact components, simple operation, fast and stable connection, IP67 grade outdoor waterproof performance. Meet the quality of international industrial equipment and meet environmental protection requirements. Quick plug design allows one-handed plug/unplug operation. All Zinc alloy shell has good resistance to electromagnetic disturbance, screw threaded connection. The socket is mounted on the panel via the square flange, quick and easy nut locking system design, the contact part should be welded with the end of the conductor.

Compatible with YW-20-C07PE-03-001 7-Pin Waterproof Connector - Male.
